About this UPS
- Brand: APC by Schneider Electric
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: G35T20KF4B4S
- Input Voltage: 220 V AC
- Form Factor: Tower
- Plug/Connector Type: Hard Wire 5-wire
- Backup/Run Time (Half Load): 48.50 Minute
- Backup/Run Time (Full Load): 18.80 Minute
- Load Capacity: 20 kVA
Marketing Information:

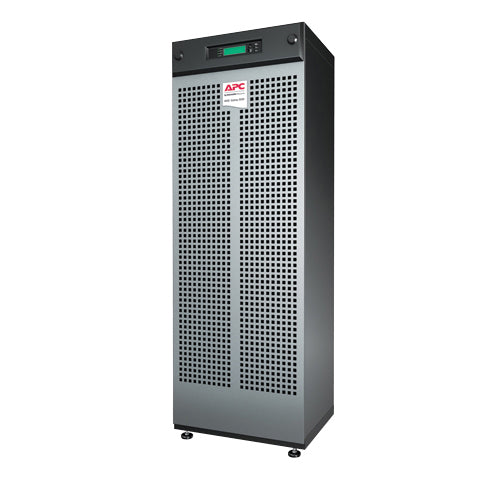

APC MGE Galaxy 3500 20 kVA Tower UPS offers centralized 3 phase power protection with the reliability of the MGE product family. Ideal for commercial and technical facilities as well as industrial applications, this UPS includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | Hard Wire 5-wire |
| Receptacle Type |
|
| Receptacle Detail |
|
| Load Capacity | 20 kVA |
| Input Voltage | 220 V AC |
| Output Voltage |
|
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| Battery Characteristics | Maintenance-free/Sealed/Spill Proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 18.80 Minute |
| Backup/Run Time (Half Load) | 48.50 Minute |
| Typical Battery Recharge Time | 5 Hour |
| Form Factor | Tower |
| Height | 58.70" (1490.98 mm) |
| Width | 20.60" (523.24 mm) |
| Depth | 33" (838.20 mm) |
| Weight (Approximate) | 627.77 kg |
| Package Contents |
|
| Limited Warranty | 1 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
