About this UPS

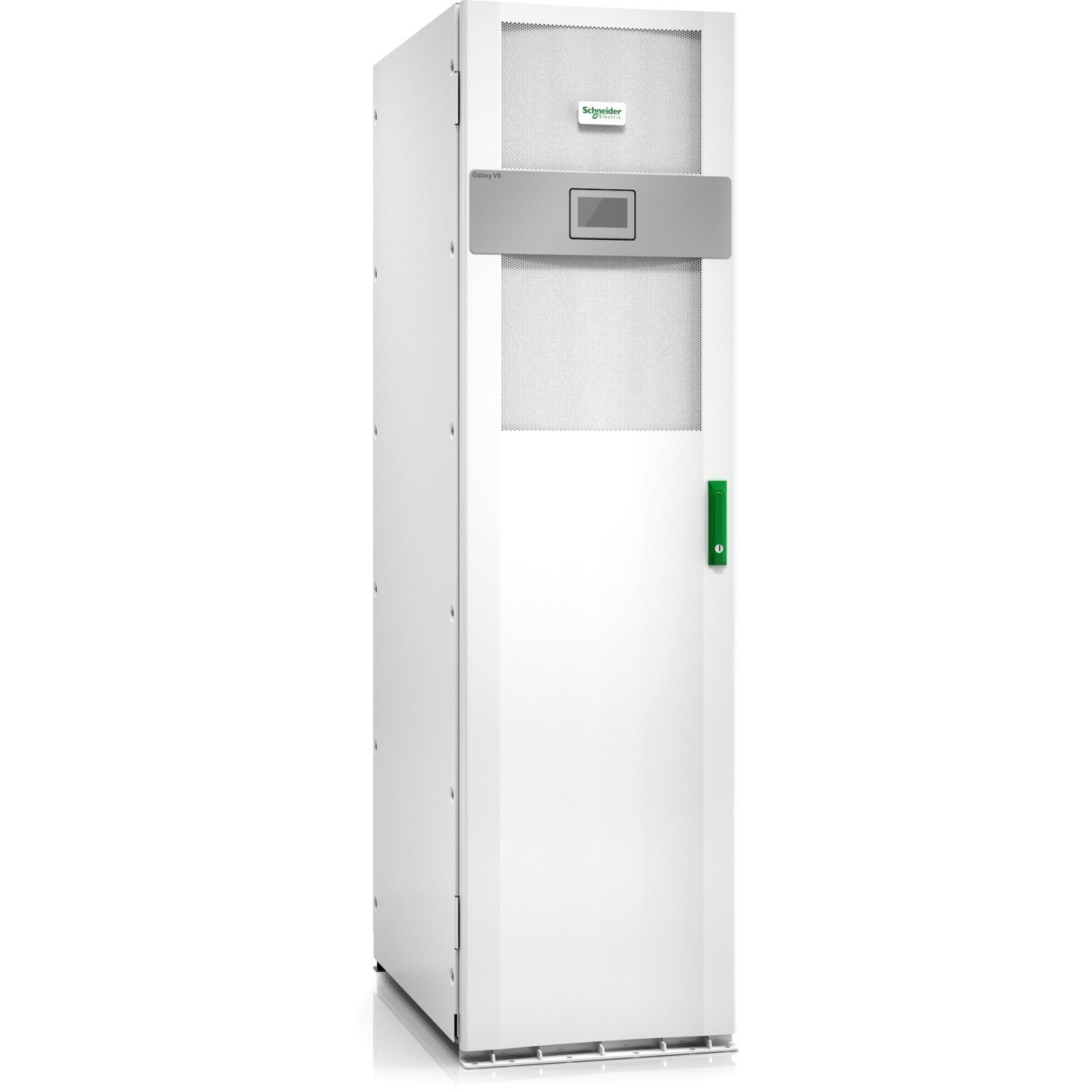

APC by Schneider Electric Galaxy VS 10kVA Tower UPS
| UPC | 0731304409830 |
| Tower - 208 V AC, 200 V AC, 220 V AC Input - 208 V AC, 200 V AC, 220 V AC Output | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | GVSUPS10KR0B5FS |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Galaxy VS |
| Product Name: | Galaxy VS 10kVA Tower UPS |
| Marketing Information: |
Galaxy VS Highly efficient 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V) 3-phase UPS for edge, small, and medium data centers and other business-critical applications. Galaxy VS is a highly efficient, modular, easy-to-deploy 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V), three-phase uninterruptible power supply that delivers top performance for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial facilities. Its compact design, high-density technology, N+1 redundancy, and fault-tolerant architecture maximize availability, operational efficiency, and critical load protection, while minimizing total cost of ownership. Thanks to patented technologies, this UPS delivers up to 97% efficiency in normal operating mode and up to 99% in ECOnversion mode, equivalent to 66% higher energy savings. Galaxy VS is EcoStruxure Ready to give you peace of mind anytime, anywhere. Smart modular batteries integrated in the UPS cabinet optimize footprint and ensure critical loads have highly predictable runtimes. Start-up service is included to optimize your system's performance, quality, and safety. With its robust design and industry-leading performance, Galaxy VS is the ideal backbone for your critical infrastructure. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Transfer Time: | 0 ns |
| Phase: | Three Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 10 kVA |
| Input Voltage: |
|
| Input Voltage Range: | 177 V AC - 239 V AC |
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave | Battery Information |
| DC System Voltage: | 480 V DC |
| Number of Batteries: | 5 |
| Battery Characteristics: | Valve Regulated Lead Acid (VRLA) |
| Battery Capacity: | 9000 mAh | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 104 °F (40 °C) |
| Maximum Operating Elevation: | 3300 ft (1005840 mm) |
| Maximum Storage Elevation: | 10000 ft (3048000 mm) |
| Storage Relative Humidity: | 10% - 80% |
| Sound Emission (A-Weighted): | 65 dB(A) |
| Thermal Dissipation: | 10714 BTU/h | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 78" (1981.20 mm) |
| Width: | 22" (558.80 mm) |
| Depth: | 34" (863.60 mm) |
| Weight (Approximate): | 250 kg | Miscellaneous |
| Package Contents: |
|
| Software Included: | EcoStruxure Ready |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 1 Year |
Technical specifications
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
