| UPC | 0767041022261 |
| Online Double Conversion UPS Solution | Compact rack-mountable / tower| with Liebert IntelliSlot Card (IS-UNITY-DP) factory installed and is compatible with all Liebert SN Sensors - at least one ITA2 battery cabinet system is required (8 min) | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | ITA2-10KRT208C |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | Liebert |
| Product Series: | ITA2 |

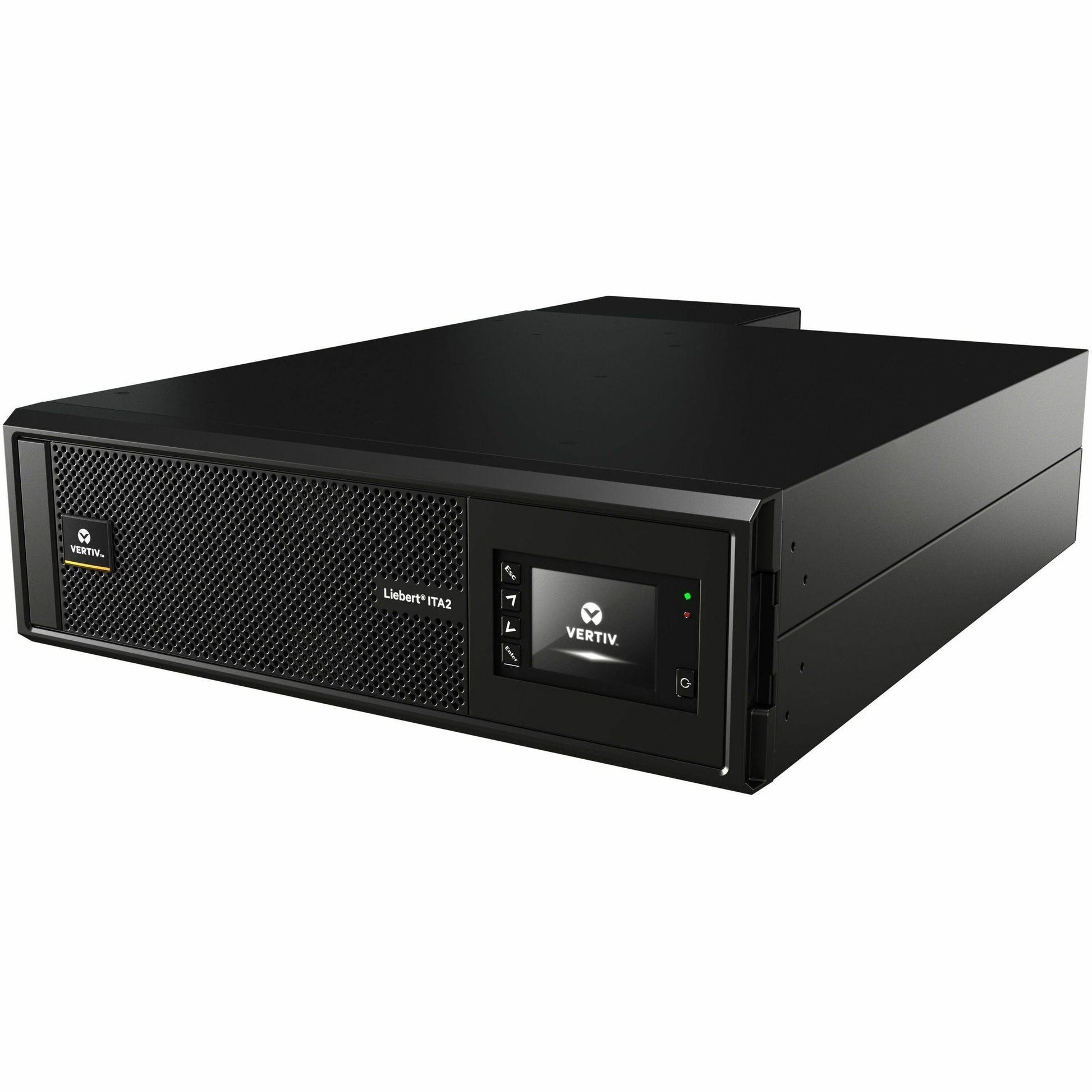

| Product Name: | ITA2 10KVA Tower/Rack Mountable UPS |
| Marketing Information: | The Vertiv Liebert ITA2 is a compact, rack-tower convertible uninterruptible power system (UPS) that employs true on-line, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert ITA2 is designed to supply microcomputers, servers, networking, and other sensitive equipment with clean sine wave input power. The Liebert ITA2 UPS offers economical, efficient, and reliable three-phase power for critical loads up to 10kVA. This intelligent UPS has scalable battery runtimes, output distribution options, a high-power factor (1.0) and an optimized maintenance bypass cabinet option for enhanced availability and flexibility. It is easy to install and operate. It provides intuitive control panel, network connectivity communications card and optional software monitoring for visibility, control, and peace of mind for manned or unmanned locations. It has Energy Star 2.0 certification. It comes with a 2-year warranty. |
| Packaged Quantity: | 1 Pack |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: | Hardwired |
| Receptacle Detail: | 1 x Hardwired |
| Transfer Time: | 0 ns |
| Overload Protection: | Yes |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Three Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 10 kVA |
| Input Voltage: |
|
| Input Voltage Range: | 166 V AC - 249 V AC |
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 80 J | Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Serial Port: | Yes |
| USB (HID Compliant) Port: | Yes |
| EPO Port: | Yes | Battery Information |
| DC System Voltage: | 384 V DC |
| Battery Characteristics: | Sealed/Maintenance-free/User Replaceable/Hot-swapable |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 8 Minute |
| Backup/Run Time (Half Load): | 21 Minute |
| Typical Battery Recharge Time: | 5 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) - 158°F (70°C) |
| Sound Emission (A-Weighted): | 58 dB(A) |
| Thermal Dissipation: | 2557 BTU/h | Physical Characteristics |
| Form Factor: | Rack/Tower |
| Rack Height: | 3U |
| Height: | 5.10" (129.54 mm) |
| Width: | 16.90" (429.26 mm) |
| Depth: | 19.70" (500.38 mm) |
| Weight (Approximate): | 23 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Energy Star: | Yes |
| Country of Origin: | China |
| TAA Compliant: | No |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
