• Powerware PW9155 15 kVA 64 Battery (3-high) - Tower - 3 Hour Recharge - 13 Minute Stand-by - 220 V AC Input - 100 V AC, 110 V AC, 120 V AC, 127 V AC, 200 V AC, 208 V AC, 220 V AC, 240 V AC Output-UPSPLUSBATTERY
1 1

Eaton

Powerware PW9155 15 kVA 64 Battery (3-high) - Tower - 3 Hour Recharge - 13 Minute Stand-by - 220 V AC Input - 100 V AC, 110 V AC, 120 V AC, 127 V AC, 200 V AC, 208 V AC, 220 V AC, 240 V AC Output

Powerware PW9155 15 kVA 64 Battery (3-high) - Tower - 3 Hour Recharge - 13 Minute Stand-by - 220 V AC Input - 100 V AC, 110 V AC, 120 V AC, 127 V AC, 200 V AC, 208 V AC, 220 V AC, 240 V AC Output

Quote on request
Request a quote →

Items above $10000 are handled by quote so we can confirm availability, freight, and final pricing.

Written reply within 1 business day — no obligation.

Supports extended runtime — add battery packs in your quote

  • Ships from our Canadian warehouse — CAD pricing, no customs
  • New in box — manufacturer warranty applies
  • Purchase orders / Net-30 welcome (B2B & public sector)

Questions? 438-881-3363 · Mon–Fri

View full details
Product details

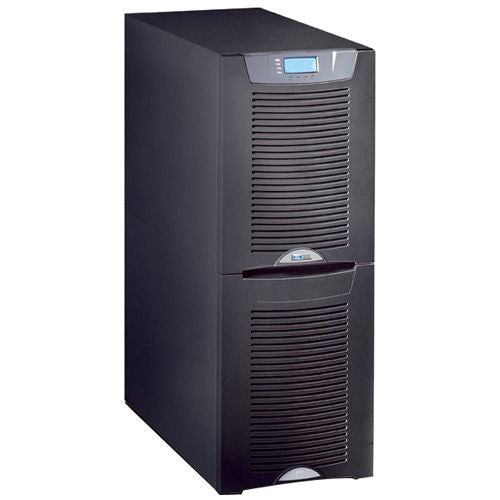

About this UPS

Powerware PW9155 15 kVA 64 Battery (3-high)

UPC 743172017147
Tower - 3 Hour Recharge - 13 Minute Stand-by - 220 V AC Input - 100 V AC, 110 V AC, 120 V AC, 127 V AC, 200 V AC, 208 V AC, 220 V AC, 240 V AC Output
General Information
Manufacturer: Eaton Corporation
Manufacturer Part Number: K41512000000000
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Powerware
Product Name: PW9155 15 kVA 64 Battery (3-high)
Marketing Information:

The Eaton 9155 UPS provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, health care, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9155 UPS is a complete power protection solution. The 9155 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: Hardwired
Transfer Time: 0 ns
Power Description
Load Capacity (VA): 15 kVA
Input Voltage: 220 V AC
Output Voltage:
  • 100 V AC
  • 110 V AC
  • 120 V AC
  • 127 V AC
  • 200 V AC
  • 208 V AC
  • 220 V AC
  • 240 V AC
Input Frequency: 65 Hz
Output Frequency: 60 Hz
Management
Bypass Switch: Automatic
Interfaces/Ports
Modular Slots: 2 x X-Slot
Battery Information
Battery Characteristics: Maintenance-free
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 13 Minute
Backup/Run Time (Half Load): 35 Minute
Typical Battery Recharge Time: 3 Hour
Physical Characteristics
Form Factor: Tower
Height: 47.80" (1214.12 mm)
Width: 12" (304.80 mm)
Depth: 34" (863.60 mm)
Weight (Approximate): 267.62 kg
Miscellaneous
Package Contents:
  • 9155 15kVA Tower UPS
  • Software Suite CD
  • User Guide
Additional Information:
  • Output Receptacle: 1 x PDM
  • Delivers a complete solution in a sleek tower design that includes internal batteries and an integrated power distribution module
  • Offers industry-leading power density with small footprint and more power capacity than comparable UPS
  • Provides more real power in less space with high 0.9 output power factor
  • Extends battery service life with ABM technology that uses an innovative three-stage battery charging system
  • Enables paralleling of up to four 9155 UPS for additional capacity and redundancy
  • Offers scalability with 8 to 10 kVA and 12 to 15 kVA capacity upgrades

Communication Ports:

  • 1 x Relay Contact
  • 1 x REPO
  • 2 x Environmental Inputs
Software Included: Eaton Software Suite
Country of Origin: United States
Warranty
Limited Warranty: 2 Year
Specifications

Technical specifications

Power
VA Rating
15000VA
Wattage
13500W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
240V
Input Plug
Hardwired
Output
Output Voltage
100V
Features
Form Factor
Tower
Connectivity
["HTTP/Web Management""Relay Contacts"]
Extended Runtime Capable
true
Condition
New
Dimensions
1214 × 305 × 864 mm (47.80 × 12.00 × 34.00 in)
Weight
267.62kg
Manufacturer Warranty
2 years
Backup runtime

How long it'll keep your equipment up.

Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.

Half load (6750 W) 5.0 min
Full load (13500 W) 13.0 min

Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →

W
Estimated runtime —min

Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Frequently asked

Before you order

How do I know this UPS will run my equipment?

Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.

What's covered by the warranty, and how long does it last?

New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.

Can I extend runtime beyond what's shown above?

Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
