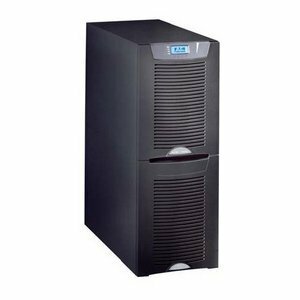

About this UPS
- Brand: Eaton
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: KA1013600000010
- Input Voltage: 220 V AC
- Form Factor: Tower
- Backup/Run Time (Full Load): 8 Minute
- Load Capacity: 10 kVA
Marketing Information:
This double-conversion, online UPS resolve all nine common utility power problems and supply clean, continuous power to all connected equipment. Even when presented with the most severe power problems, power output remains stable. And if the utility power goes out altogether, there is no delay transferring to backup power.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Load Capacity (VA) | 10 kVA |
| Input Voltage | 220 V AC |
| Output Voltage | 208 V AC |
| Input Frequency | 65 Hz |
| Output Frequency | 60 Hz |
| Bypass Switch | Automatic |
| Emergency Power OFF | Yes |
| Serial Port | Yes |
| Modular Slots | 2 x X-Slot |
| Number of Batteries | 32 |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 8 Minute |
| Form Factor | Tower |
| Height | 47.80" (1214.12 mm) |
| Width | 12.80" (325.12 mm) |
| Depth | 34" (863.60 mm) |
| Weight (Approximate) | 261.72 kg |
| Package Contents |
|
| Additional Information |
|
| Software Included | Power Management Software |
| Country of Origin | United States |
| Limited Warranty | 2 Year |
Technical specifications
Setup checklist: after you receive your UPS →
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
