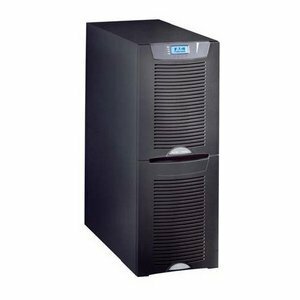

About this UPS
- Brand: Eaton
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: KA1513600000010
- Input Voltage: 220 V AC
- Form Factor: Tower
- Backup/Run Time (Full Load): 4 Minute
- Load Capacity: 15 kVA
Marketing Information:
Fortunately, advances in technology have also meant that more power protection per square foot can now be provided. The Powerware 9355 KA1513600000010 UPS delivers premium levels of efficiency, reliability and flexibility, all in a sleek tower half the size of most other units on the market today.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Load Capacity (VA) | 15 kVA |
| Input Voltage | 220 V AC |
| Output Voltage | 208 V AC |
| Input Frequency | 65 Hz |
| Output Frequency | 60 Hz |
| Network Management | SNMP Manageable |
| Bypass Switch | Automatic |
| Emergency Power OFF | Yes |
| Serial Port | Yes |
| Modular Slots | 2 x X-Slot |
| Number of Batteries | 32 |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Form Factor | Tower |
| Height | 47.80" (1214.12 mm) |
| Width | 12.80" (325.12 mm) |
| Depth | 34" (863.60 mm) |
| Weight (Approximate) | 261.72 kg |
| Package Contents |
|
| Additional Information |
|
| Software Included | Power Management Software |
| Country of Origin | United States |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
