About this UPS

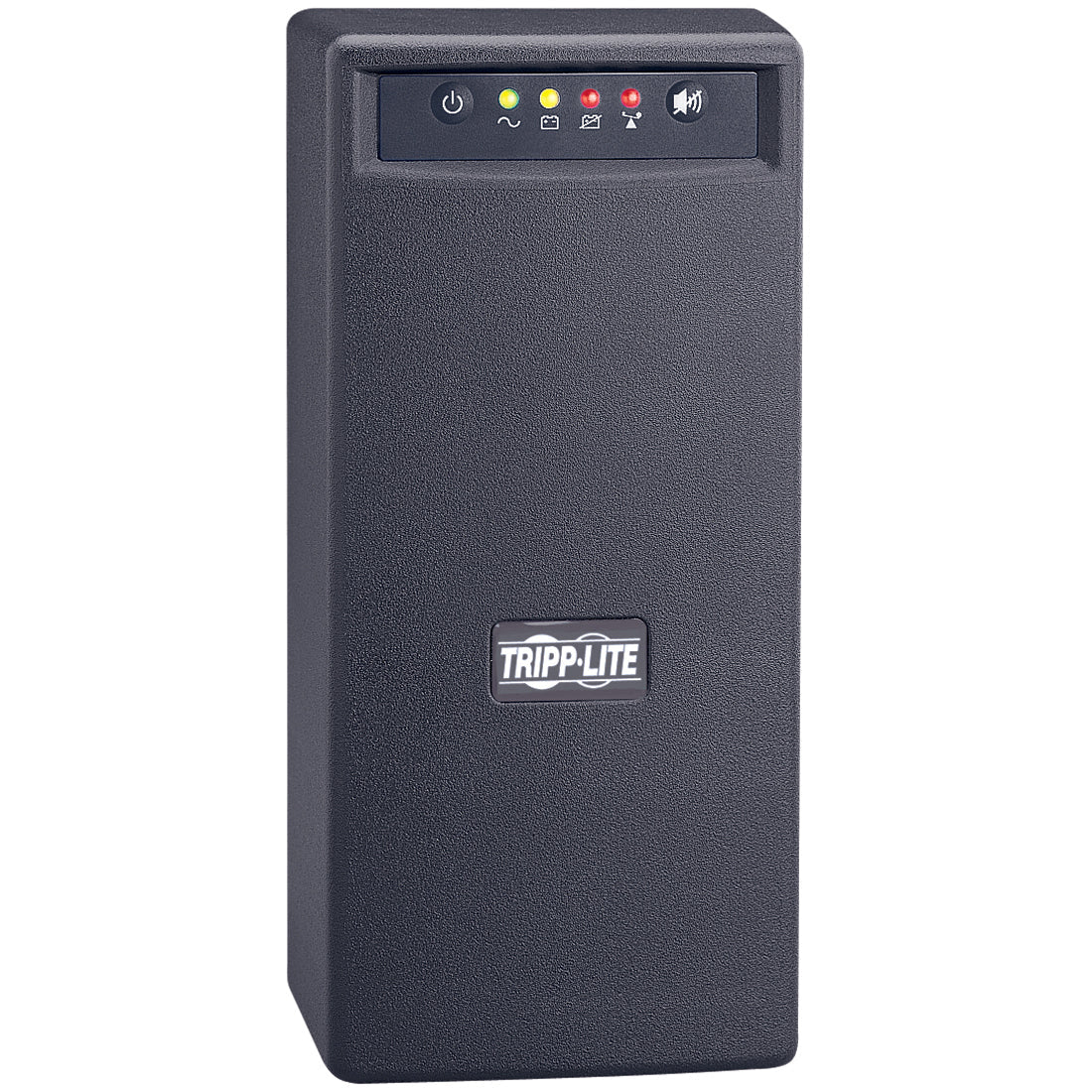

Tripp Lite OmniSmart 500VA Tower UPS with Built-in Isolation Transformer
| UPC | 0037332125125 |
| 500VA/300W - 5 Minute Full Load - 3 x NEMA 5-15R - Surge-protected | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | OMNI500ISO |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | OmniSmart |
| Product Name: | OmniSmart 500VA Tower UPS with Built-in Isolation Transformer |
| Marketing Information: | Tripp Lite's OMNI500ISO offers complete UPS protection with built-in line-interactive voltage regulation, intelligent monitoring and unattended shutdown capability. Built-in isolation transformer with faraday shield offers full isolation and complete common mode noise rejection. 500VA power handling capacity supports point-of-sale applications, computers, internetworking equipment and home theater systems during commercial power failures. Line-interactive voltage regulation corrects brownouts as low as 83V back to normal 120V levels, saving battery reserves for use only during complete power failures. Built-in USB communications port works with PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 3 x NEMA 5-15R |
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 500 VA |
| Load Capacity (Watt): | 300 W |
| Input Voltage: | 110 V AC |
| Output Voltage: | 120 V AC | Interfaces/Ports |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 14 Minute |
| Typical Battery Recharge Time: | 4 Hour | Physical Characteristics |
| Height: | 10.75" (273.05 mm) |
| Width: | 5.25" (133.35 mm) |
| Depth: | 7.50" (190.50 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 9.89 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Country of Origin: | China | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
Power
VA Rating
500VA
Wattage
300W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
3× NEMA 5-15R
Features
Form Factor
Tower
Connectivity
USBHTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Dimensions
273 × 133 × 190 mm (10.75 × 5.25 × 7.50 in)
Weight
9.89kg
Certifications
CSA (Canada)UL 1778
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (150 W)
11 min
Full load (300 W)
5.4 min
Available now
The manufacturer no longer makes the OMNI500ISO. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power S71-700 700 VA / 420 W Line-Interactive UPS, 120 V
Compared with OMNI500ISO Spec OMNI500ISO Xtreme Power Capacity 500 VA / 300 W 700 VA / 420 W Topology Line-Interactive Line-Interactive Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 3 × NEMA 5-15R 4 × NEMA 5-15R Runtime, half load 11 min 6 min Differences
- Larger unit: 420 W instead of 300 W
$243.57
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the OMNI500ISO. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
