About this UPS

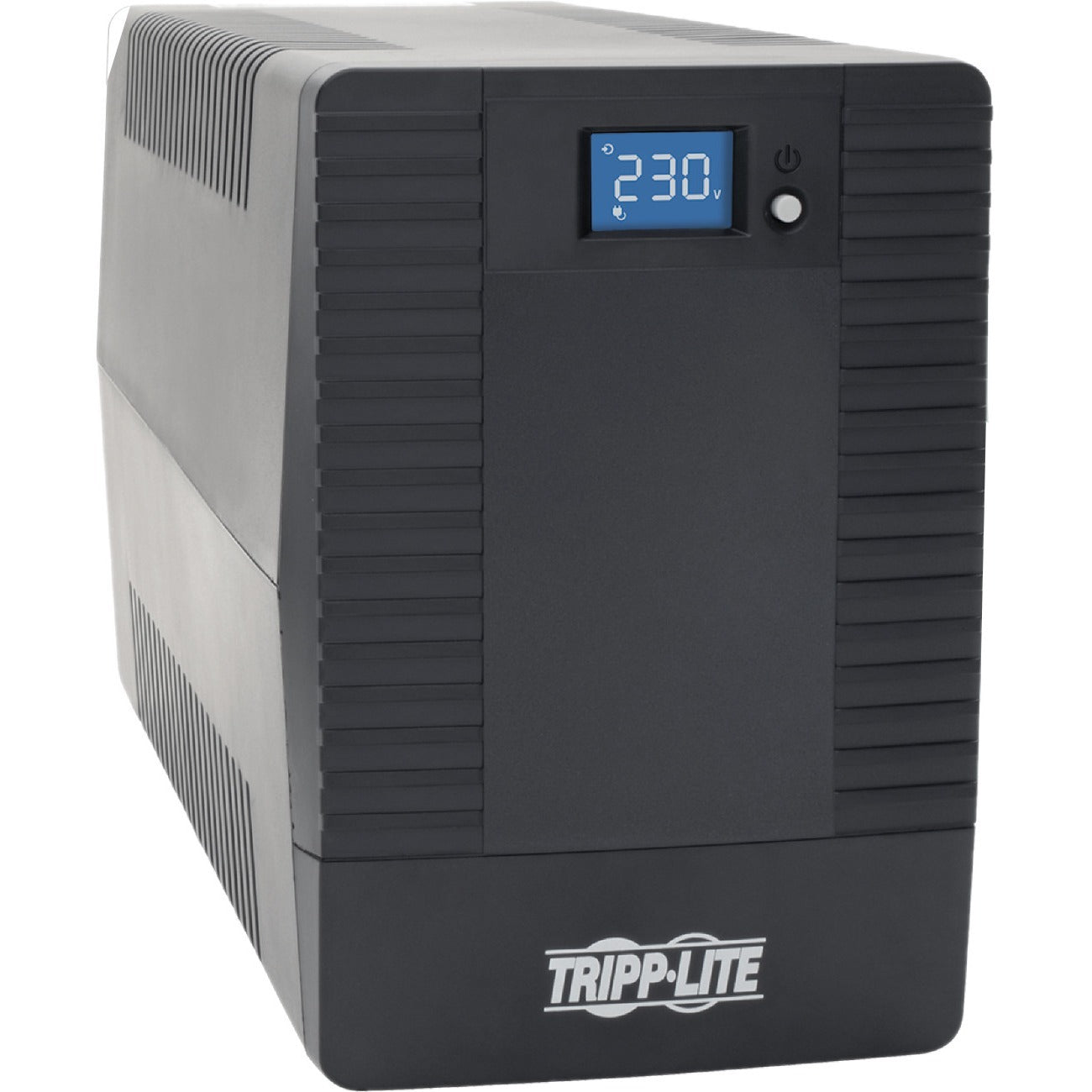

Tripp Lite by Eaton OMNIVSX1500D 1.5kVA Tower UPS
| UPC | 0037332221780 |
| Tower - AVR - 8 Hour Recharge - 1 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - Single Phase - 4 x Schuko CEE 7/7 - 4 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | OMNIVSX1500D |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Model: | OMNIVSX1500D |
| Product Name: | OMNIVSX1500D 1.5kVA Tower UPS |
| Marketing Information: |
Features 1500VA/900W/230V Battery Backup for PCs, Home Theater or Digital Signage This 230V UPS with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The four-outlet 230V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment. Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 112 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available. All four Schuko outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. A high >95% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs. AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The OMNIVSX1500D can correct brownouts as low as 170V and overvoltages as high as 280V back to nominal 230V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure. A 312-joule surge suppression rating protects connected components from the harmful effects of power surges. Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The OMNIVSX1500D incorporates technology that filters out disruptive line noise so that it won't affect your equipment. The LCD touchscreen offers five screens of UPS and site power information when the OMNIVSX1500D is operating in either on-line or battery power mode. It displays vital voltage, load and battery data, as well as critical fault status. An audible alarm will sound in case of low battery, excessive load and fault condition. This port connects the OMNIVSX1500D to a computer running Tripp Lite's free downloadable PowerAlert ® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included. The UPS works with Windows, Mac and Linux operating systems. |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | CEE 7/7 |
| Receptacle Type: | Schuko CEE 7/7 |
| Receptacle Detail: | 4 x Schuko CEE 7/7 |
| Number of Battery & Surge Outlets: | 4 |
| Transfer Time: | 6 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Energy Saving: | Green Energy-Saving |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.50 kVA |
| Load Capacity (Watt): | 900 W |
| Input Voltage: | 230 V AC |
| Output Voltage: |
|
| Input Frequency: | 50 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pulse-width Modulated Sine Wave |
| Surge Energy Rating: | 312 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
Front Panel LCD Display:
|
Interfaces/Ports |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 12 V DC |
| Battery Size: | 12V |
| Backup/Run Time (Full Load): | 1 Minute |
| Backup/Run Time (Half Load): | 6.50 Minute |
| Typical Battery Recharge Time: | 8 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 122 °F (50 °C) |
| Storage Relative Humidity: | 90% |
| Sound Emission: | 40 dB |
| Thermal Dissipation: | 85 BTU/h | Physical Characteristics |
| Height: | 7.20" (182.88 mm) |
| Width: | 5.10" (129.54 mm) |
| Depth: | 12.60" (320.04 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 9.98 kg | Miscellaneous |
| Package Contents: |
|
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
