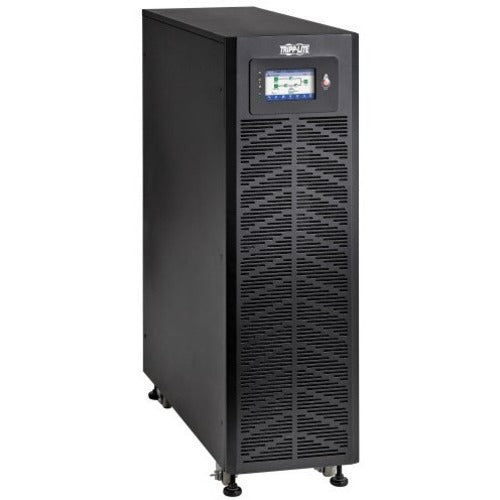

Tripp Lite series SmartOnline S3M30K 30kVA Tower UPS - S3M30K

Battery Backup and VFI Operation Protect Critical Loads

The SmartOnline ® S3M30K IGBT UPS supports the continuous availability of your most important operational and IT equipment loads through all power conditions, providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage- and frequency-independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 30kVA/kW of clean, continuous power, this 3-phase UPS system is ideally suited for critical applications in banking, education, healthcare, government and manufacturing sectors.

Best-in-Class Footprint for Easy Integration into Your Network Application

The UPS market's smallest footprint for 3-phase 208V systems lets you install the S3M30K in spaces that would otherwise have required expensive retrofitting. By achieving its compact size without compromising runtime, reliability or functionality, the S3M30K is recommended for data centers, colocation facilities and edge computing environments that require high efficiency, high performance and clean, reliable power protection, while preserving as much space as possible for revenue-generating server racks.

Efficient Operation and Design Reduces Cost of Ownership

ENERGY STAR 2.0-certified technology provides high operational efficiency to save on utility and cooling costs, as well as protect the environment. This UPS achieves up to 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. Unity output power factor (1.0) lets you support more equipment. A low THDi (<3%) improves generator compatibility. A low THDv (≤2%) and active power factor correction with DSP control improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Automatic and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.

External Batteries Supply Reliable Backup with Expandable Runtime Options

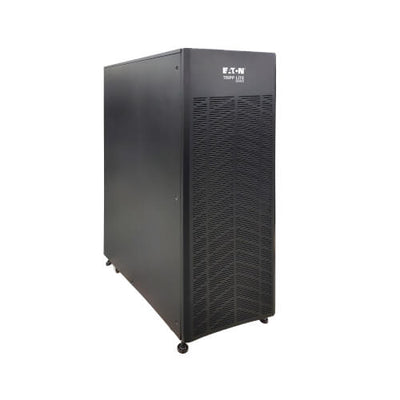

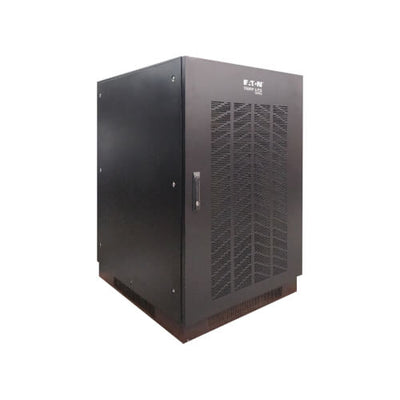

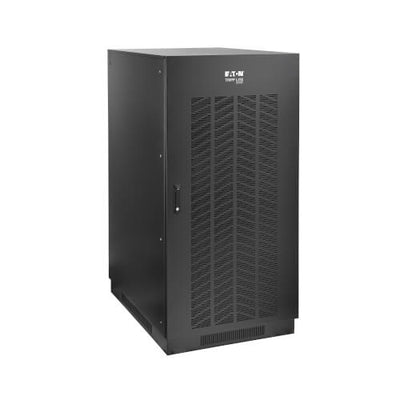

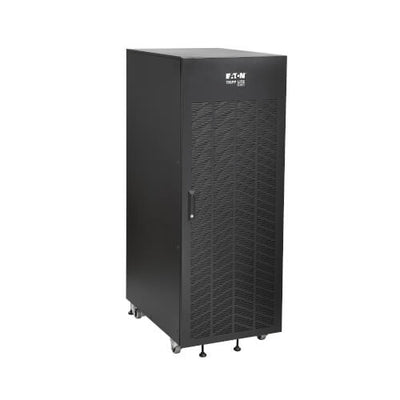

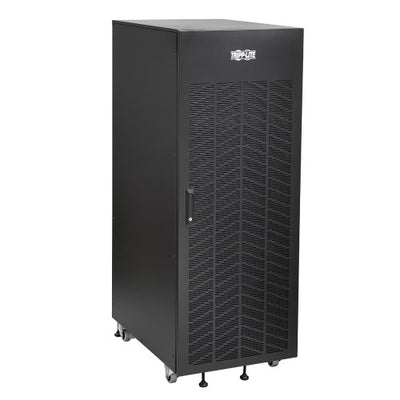

The S3M30K uses external battery cabinets, including BP240V40/40L, BP240V65/65L and BP240V100 (sold separately), to provide backup support in case of a power failure. These cabinets are available with or without internal batteries. No internal batteries are included with the S3M30K. A one-touch cold-start button powers up the UPS with battery power only.

Intuitive LCD Interface Delivers Important Performance Information at a Glance

The large five-inch touchscreen LCD panel displays critical operating conditions and diagnostic data, including battery and load status. Four LEDs provide information about AC, bypass, battery and fault status.

Remote Network Monitoring and Control Available 24 Hours a Day

The optional Java-free WEBCARDLXMINI network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. WEBCARDLXMINI also supports EnviroSense2 (sold separately), which monitors temperature, humidity and other environmental factors. Three MODBUS ports (RS-485, USB, RS-232) may also be used to monitor and manage the UPS. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies.

• IT Equipment
• Network
• Telecommunication
• Finance
• Industrial
• Data Center
• Server Room
• Critical System
• Banking
• Education
• Healthcare
• Government
• Manufacturing Facility
• Edge Computing

• 120 V AC
• 230 V AC

• 120 V AC
• 208 V AC

• SNMP Manageable
• SSH
• Telnet

• Low Battery
• Overload
• Shutdown
• Bypass Mode

Front Panel LCD Display:

• Large touchscreen color LCD display (5in/ 12.7cm) enables comprehensive local monitoring
• Diagnostics and control
• Intuitive and user-friendly interface

• Home
• Status
• Alarm
• Setting
• Maint
• Common
• About

LED Indicators:

• Four LEDs indicate AC mode (Green)
• Bypass (Yellow)
• Battery (Yellow)
• Fault (Red) Modes

• SmartOnline S3M30K 30kVA Tower UPS
• RS-232 Cable (Male/Female), 5 ft. (1.5 m)
• Parallel Cable (Male/Female), 5 ft. (1.5 m)
• USB Cable, 5 ft. (1.5 m)
• Dry Contact Connector (Green)
• Owner's Manual
