About this UPS

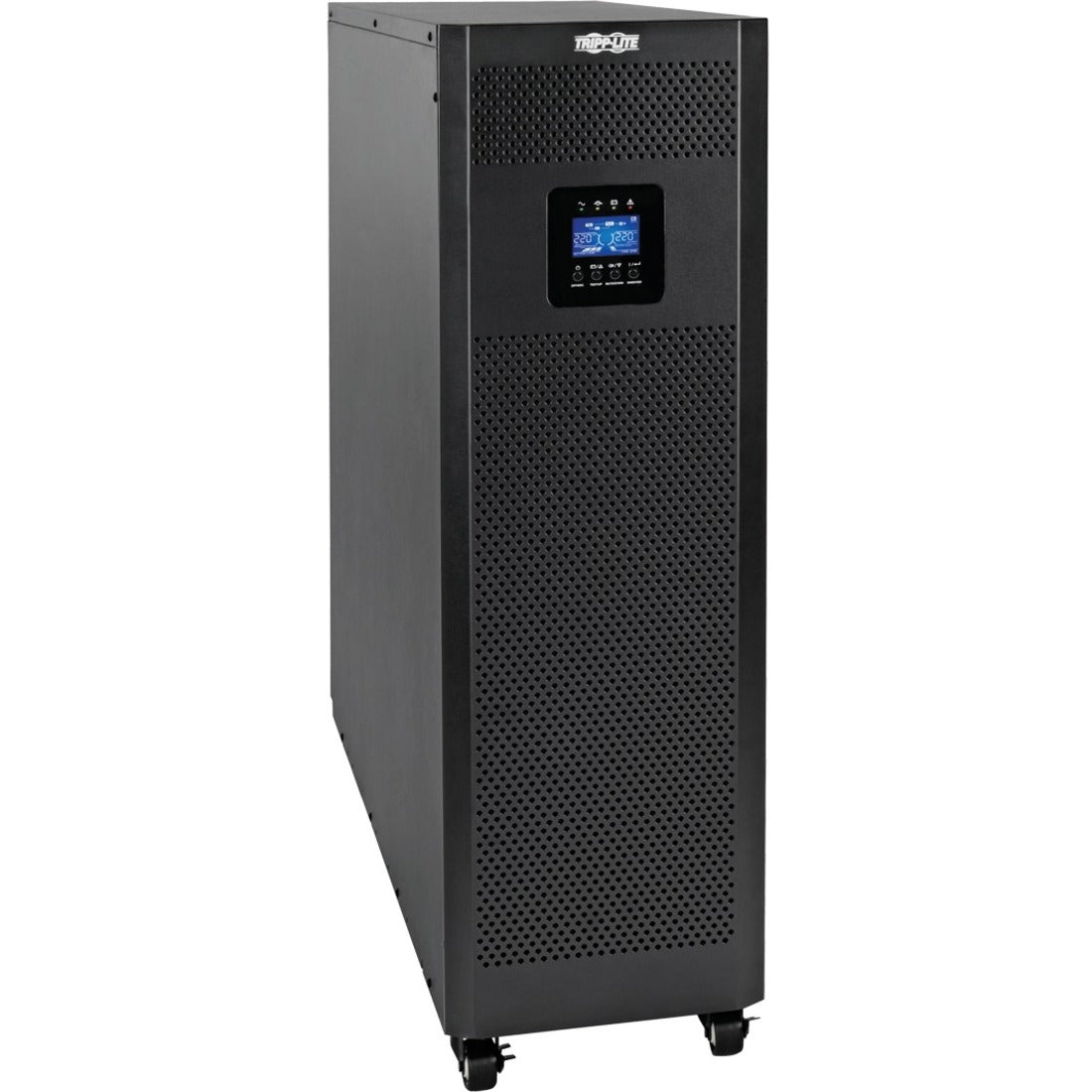

Tripp Lite by Eaton SmartOnline S3MX S3M30KX 30kVA Tower UPS
| UPC | 0037332213624 |
| Tower - 9 Hour Recharge - 5.50 Minute Stand-by - 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC Output - Serial Port | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | S3M30KX |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Series: | S3MX |
| Product Model: | S3M30KX |
| Product Name: | SmartOnline S3MX S3M30KX 30kVA Tower UPS |
| Marketing Information: |
Battery Backup and VFI Operation Protect Critical Loads The SmartOnline ® S3M30KX IGBT UPS supports the continuous availability of your most important loads through all power conditions, providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage and frequency independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 30kVA of clean, continuous power, this 3-phase UPS system is perfect for critical applications in IT, communications, corporate, commercial, retail, financial, security, transportation, emergency and light industrial environments. Best-in-Class Footprint for Easy Integration into Your Network Application This on-line double-conversion UPS system has a very small footprint of just 0.24 square meters. It requires less valuable space in your facility, and you can install the UPS system in spaces that would previously have required expensive retrofitting. Efficient Operation and Design Reduces Cost of Ownership This IGBT UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. A low THDi (<3%) improves generator compatibility. A low THDv (≤2%) and active power factor correction improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Built-in static and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime. Supplies Reliable Battery Backup with Expandable Runtime Options Internal 9Ah batteries provide 17 minutes of support at half load and 5.5 minutes at full load with zero transfer time. Adding external battery cabinets, such as BP480V09 (sold separately), provides extended runtime. The S3M30KX automatically restarts after a lengthy power outage. Intuitive LCD Interface Delivers Important Performance Information at a Glance The interactive front-panel LCD interface displays critical operating conditions and diagnostic data, including operating mode, input/output voltage, load, battery voltage, backup runtime and fault conditions. Four LEDs provide information about line, bypass, battery and fault status. Network Management Card Offers Remote Monitoring and Control The optional Java-free WEBCARDLX network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies. Parallel Capability Provides Additional Capacity Connect up to three S3M30KX units in parallel using separate/shared battery cabinets for increased capacity. 2-Year Warranty Provides Peace of Mind The S3M30KX is backed by a 2-year warranty, ensuring reliability and performance. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Transfer Time: | 0 ns |
| Overload Protection: | Yes |
| Phase: | Three Phase |
| Energy Saving: | Green Energy-Saving |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 30 kVA |
| Input Voltage Range: | 220 V AC - 240 V AC |
| Output Voltage: |
|
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave | Management |
| Network Management: |
|
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
LED Indicators:
Front Panel LCD Display:
|
Interfaces/Ports |
| Serial Port: | Yes |
| USB (HID Compliant) Port: | Yes |
| EPO Port: | Yes | Battery Information |
| DC System Voltage: | 240 V DC |
| Battery Capacity: | 9000 mAh |
| Backup/Run Time (Full Load): | 5.50 Minute |
| Backup/Run Time (Half Load): | 17 Minute |
| Typical Battery Recharge Time: | 9 Hour | Environmental Conditions |
| Environmental Sensors: | Temperature Sensor |
| Maximum Operating Temperature: | 104 °F (40 °C) | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 39.37" (1000 mm) |
| Width: | 11.81" (300 mm) |
| Depth: | 32.09" (815 mm) |
| Weight (Approximate): | 264.90 kg | Miscellaneous |
| Country of Origin: | China | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
