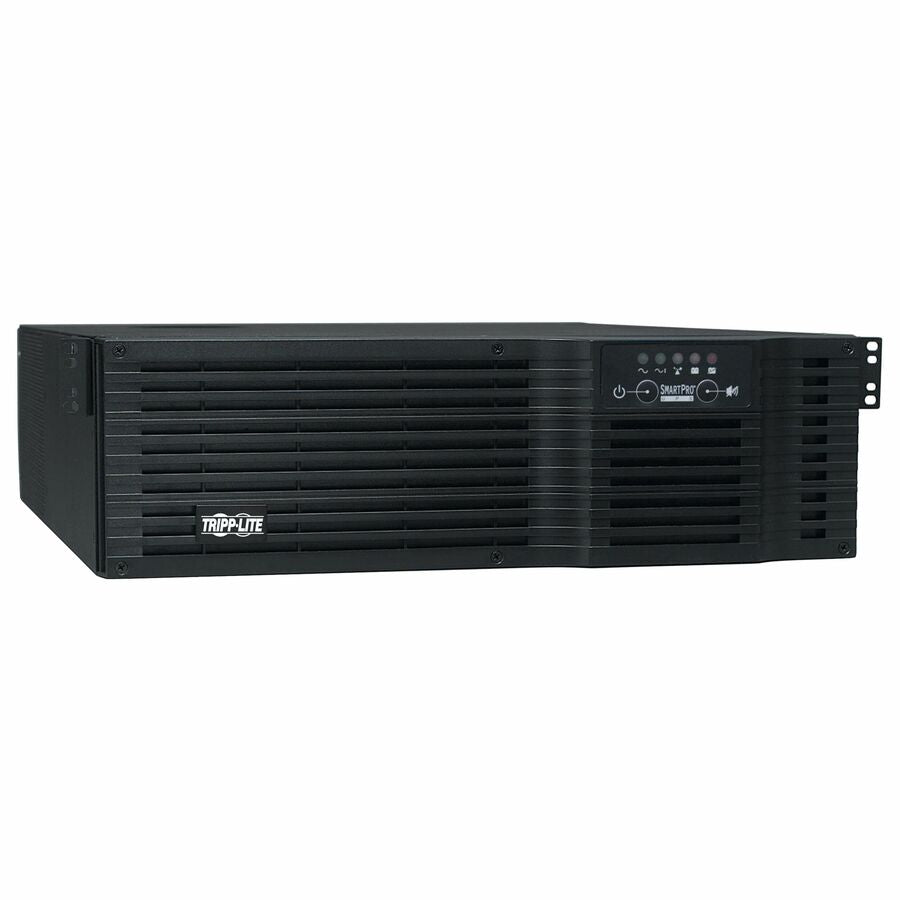

Tripp Lite SmartPro SM2200RMDVTAA 2200 VA / 1920 W Rack/Tower UPS
Tripp Lite SmartPro SM2200RMDVTAA 2200 VA / 1920 W Rack/Tower UPS
Available on order
Ships by freight (over 68 kg). We confirm the delivered price in writing before you pay.
Written reply within 1 business day, no obligation.
Supports extended runtime: add battery packs in your quote
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SM2200RMDVTAA
- Input Voltage: 110 V AC,220 V AC
- Form Factor: Rack/Tower
- Rack Height: 3U
- Product Family: SmartPro
- Backup/Run Time (Half Load): 30 Minute
- Backup/Run Time (Full Load): 12 Minute
- Load Capacity: 2.20 kVA/1.92 kW
Marketing Information:
Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Receptacle Type |
|
| Receptacle Detail |
|
| Emergency Power OFF | Yes |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage |
|
| Input Current | 16 A |
| Output Voltage | 120 V AC |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 12 Minute |
| Backup/Run Time (Half Load) | 30 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| Hot Swappable | Yes |
| Height | 5.25" (133.35 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 25.25" (641.35 mm) |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 104.25 lb (47287 g) |
| Package Contents |
|
| Additional Information | Input Receptacle: C20 |
| Certifications & Standards |
|
| Software Included | PowerAlert Software |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Compare with alternatives
The SM2200RMDVTAA side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P91g-2000 2000 VA / 2000 W Online UPS, 208/230 V
Compared with SM2200RMDVTAA Spec SM2200RMDVTAA Xtreme Power Capacity 2200 VA / 1920 W 2000 VA / 2000 W Topology Line-Interactive Online Double-Conversion Form Rackmount 3U, 3U Tower/Rack Convertible, 2U Input plug IEC C20 NEMA L6-20P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15/20R 1 × IEC 60320 C19, 8 × IEC 60320 C13 Runtime, half load 30 min 10 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C20 inlet cord
- No 5-15R outlet
- No 5-20R outlet
- Lower VA rating: 2000 VA instead of 2200 VA
$2,292.00
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
