In stockTripp Lite
· SMART750RM1U
Tripp Lite SmartPro SMART750RM1U 750 VA / 600 W Rack Line-Interactive UPS
- Power
- 750 VA / 600 W
- Form
- Rackmount 1U
- Outlets
- 6× NEMA 5-15R
$1,137.99
Tripp Lite

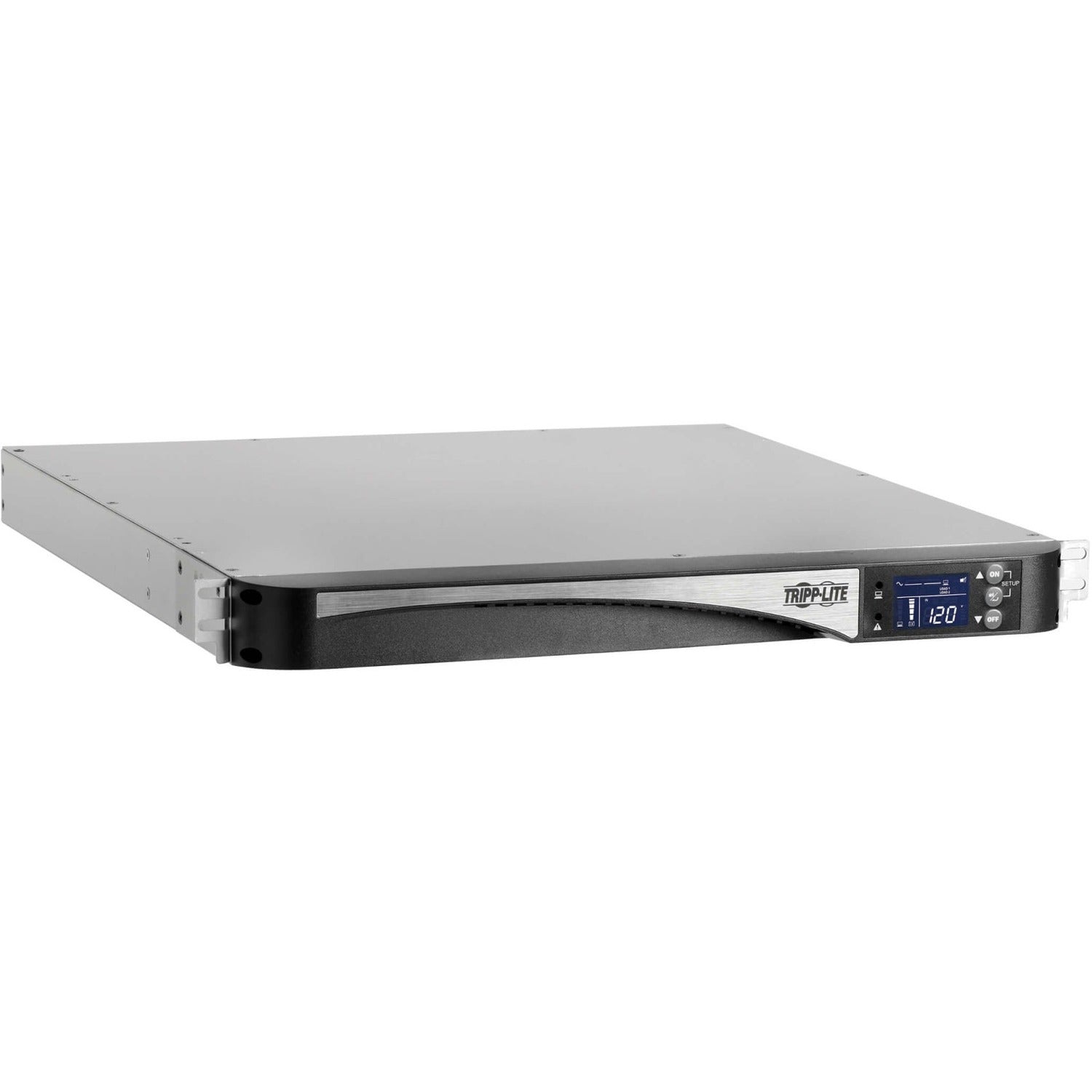

Tripp Lite SMART750RT1U 750 VA / 600 W Rack/Tower Line-Interactive UPS
Tripp Lite SMART750RT1U 750 VA / 600 W Rack/Tower Line-Interactive UPS
Discontinued by the manufacturerManufacturer’s current model: SMART750RM1U. This listing is the earlier model.
Regular price
$906.99 CAD
Regular price
Sale price
$906.99 CAD
Available on order
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART750RT1U
- Input Voltage: 120 V AC
- Form Factor: Rack/Tower
- Backup/Run Time (Half Load): 10 Minute
- Backup/Run Time (Full Load): 3 Minute
- Load Capacity: 750 VA/600 W
Marketing Information:
750VA/600W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
This SmartPro ® line-interactive UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The SMART750RT1U is ideal protection for point-of-sale and kiosk applications, a small-business VoIP network or rack-mount equipment, such as servers and switches, in your server room or network closet.
Reliable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides ten minutes of support at half load (300W) and three minutes at full load (600W), allowing you to work through short power failures and giving you enough time to safely save files and shut down your system in case of a prolonged blackout.
Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement.
Optional WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.
NEMA 5-15R Outlets Protect Your Connected Components
Four 5-15R outlets in two separate load banks provide connected equipment with pure sine wave AC output during blackouts, overvoltages and severe brownout conditions. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART750RT1U maintains regulated 120V nominal output during brownouts as low as 90V, while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Transfer Time | 8 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage |
|
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 540 J |
| Network Management | SNMP/Webcard |
| Alarm |
|
| Status Indicators | LCD Display |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 24 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 5 °F (-15 °C) - 122 °F (50 °C) |
| Maximum Operating Elevation | 10761.15 ft (3280000 mm) |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Thermal Dissipation | 48 BTU/h |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 11.26" (286 mm) |
| Rack Height | 1U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 29.76 lb (13500 g) |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
Technical specifications
Power
VA Rating
750VA
Wattage
600W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
4× NEMA 5-15R
Features
Form Factor
Tower/Rack Convertible
Rack Units
1U
Connectivity
USBSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
44 × 440 × 286 mm (1.73 × 17.32 × 11.26 in)
Weight
13.5kg
Certifications
CSA (Canada)UL 1778
Manufacturer Warranty
3 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (300 W)
10 min
Full load (600 W)
3 min
Available now
The manufacturer no longer makes the SMART750RT1U. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power P80-800 800 VA / 720 W Line-Interactive UPS, 120 V
Compared with SMART750RT1U Spec SMART750RT1U Xtreme Power Capacity 750 VA / 600 W 800 VA / 720 W Topology Line-Interactive Line-Interactive Form Tower/Rack Convertible, 1U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 10 min 11 min Differences
- Takes 2U of rack space instead of 1U
- Larger unit: 720 W instead of 600 W
$1,068.18 -
Xtreme Power Conversion
Xtreme Power P91c-1000 1000 VA / 800 W Online UPS, 120 V
Compared with SMART750RT1U Spec SMART750RT1U Xtreme Power Capacity 750 VA / 600 W 1000 VA / 800 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 1U Rackmount 1U, 1U Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R 3 × NEMA 5-15R Runtime, half load 10 min 20 min Differences
- Rack mount only, no tower stand
- 3 battery-backed outlets instead of 4
- Online double-conversion, a step up from line-interactive
- Larger unit: 800 W instead of 600 W
$1,390.17 -
Xtreme Power Conversion
Xtreme Power T91-700 700 VA / 700 W Online UPS, 120 V
Compared with SMART750RT1U Spec SMART750RT1U Xtreme Power Capacity 750 VA / 600 W 700 VA / 700 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 1U Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R 6 × NEMA 5-15R Runtime, half load 10 min 16 min Differences
- Tower only, no rack mounting
- Lower VA rating: 700 VA instead of 750 VA
- Online double-conversion, a step up from line-interactive
- Larger unit: 700 W instead of 600 W
$958.94
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the SMART750RT1U. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
Other models in the same range
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
