| UPC | 731304732891 |
| 10U Rack-mountable - 1.50 Hour Recharge - 208 V AC Input - 120 V AC, 208 V AC Output - 2 x NEMA L14-30R, 2 x NEMA L5-20R, 2 x NEMA L6-30R, 4 x NEMA L6-20R - Sine Wave | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SRT10KRMXLT-10KTF |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |

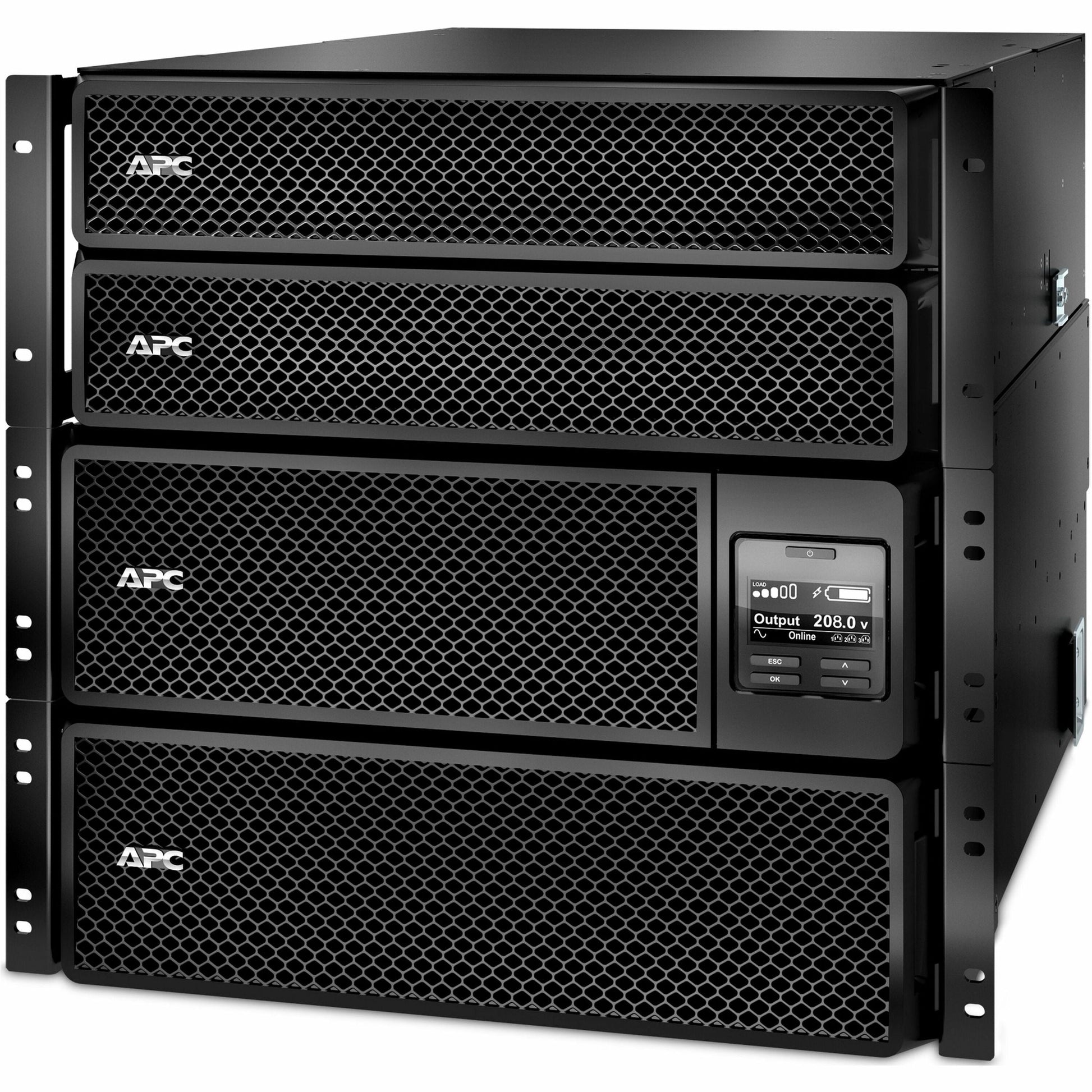

| Product Name: | Smart-UPS SRT 10kVA RM with 208/240V to 120V 10kVA Step-Down Transformer |
| Marketing Information: | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 10U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 2x NEMA L5-20R, 4x NEMA L6-20R, 2x NEMA L6-30R, and 2x NEMA L14-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. |
| Packaged Quantity: | 1 / Pallet |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 11 | Power Description |
| Load Capacity (VA): | 10 kVA |
| Input Voltage: | 208 V AC |
| Output Voltage: |
|
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 480 J | Management |
| Network Management: | SNMP Manageable | Battery Information |
| Battery Chemistry: | Lead Acid |
| Typical Battery Recharge Time: | 1.50 Hour | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Form Factor: | Rack-mountable |
| Rack Height: | 10U |
| Mounting Preference: | Lower |
| Height: | 17.24" (438 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 29.49" (749 mm) |
| Weight (Approximate): | 211.37 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | ENERGY STAR V2.0 (USA)|FCC part 15 class A|UL 1778 |
| Energy Star: | Yes |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT10KRMXLT-10KTF_ROHS_DECLARATION&p_FileName=SRT10KRMXLT-10KTFKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135455&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135455&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL: | https://www.energystar.gov/products/uninterruptible_power_supplies |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery |
