| UPC | 731304304272 |
| Rack-mountable - 1.50 Hour Recharge - 3 Minute Stand-by - 230 V, 480 V Input - 230 V AC Output - Sine Wave - USB - 3 x IEC Jumper, 4 x IEC 60320 C19, 6 x IEC 60320 C13 - 25 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SRT10KXLI |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | SRT |

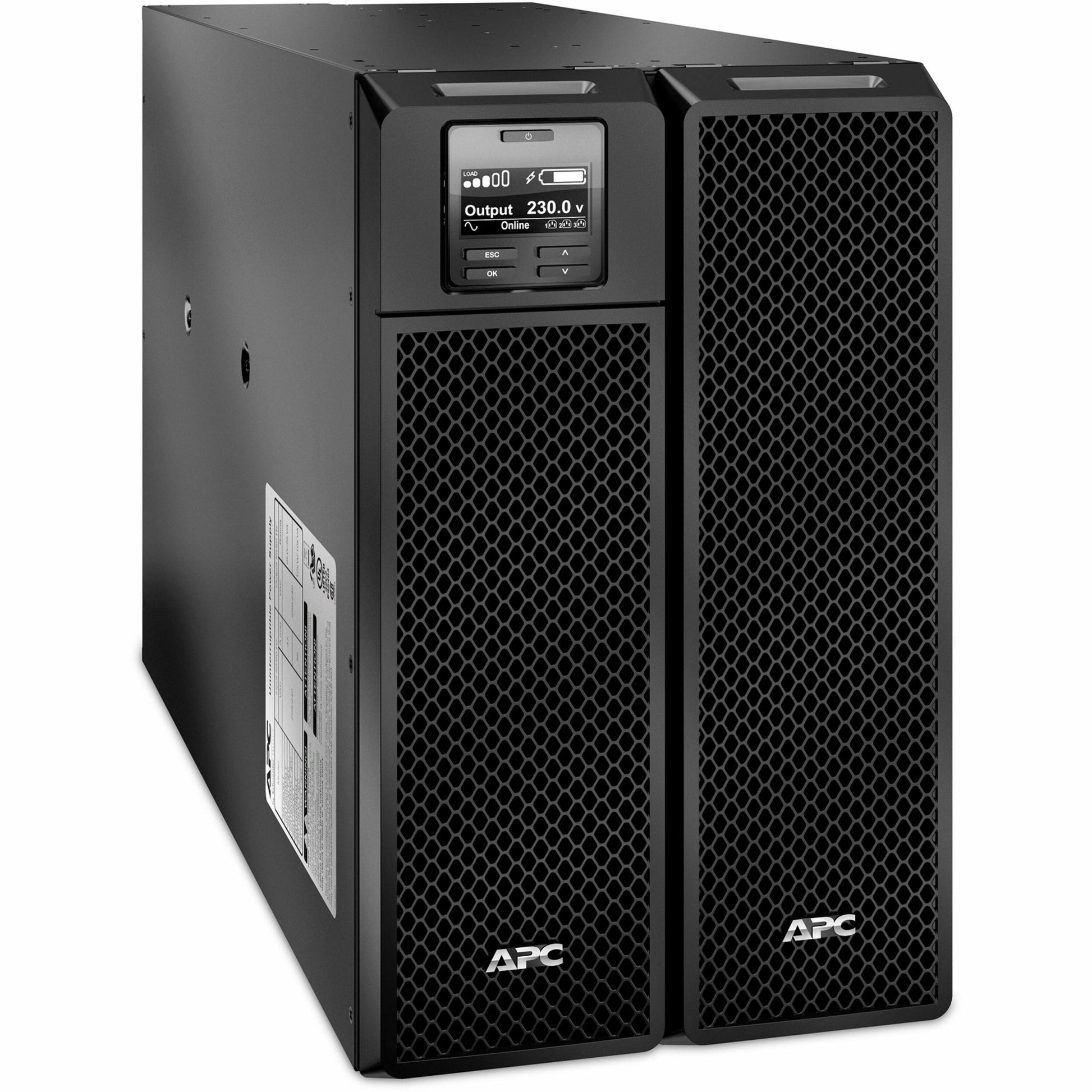

| Product Name: | Smart-UPS SRT 10000VA 230V |
| Marketing Information: | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 25 |
| Protection Type: |
|
| Bypass Switch: |
|
| Emergency Power OFF: | Yes | Power Description |
| Load Capacity (VA): | 10 kVA |
| Load Capacity (Watt): | 10 kW |
| Input Voltage: |
|
| Output Voltage: | 230 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 480 J |
| Circuit Breaker: | Yes | Management |
| Alarm: | Battery Failure | Controls/Indicators |
| Status Indicators: | LED Indicators | Interfaces/Ports |
| Network (RJ-45): | Yes |
| USB: | Yes |
| Total Number of Expansion Slots: | 1 | Battery Information |
| Number of Batteries: | 2 |
| Battery Characteristics: | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 3 Minute |
| Backup/Run Time (Half Load): | 12 Minute |
| Typical Battery Recharge Time: | 1.50 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Sound Emission: | 55 dB |
| Thermal Dissipation: | 2002 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 17.01" (432 mm) |
| Width: | 10.35" (263 mm) |
| Depth: | 28.15" (715 mm) |
| Form Factor: | Rack-mountable |
| Mounting Location: | Front |
| Weight (Approximate): | 111.82 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | CE|EAC|IRAM|RCM|VDE |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135459&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135459&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL: | https://www.energystar.gov/products/data_center_equipment/uninterruptible_power_supplies |
| WEEE Statement: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery |
