| UPC | 0731304292722 |
| Rack-mountable - 1.50 Hour Recharge - 4 Minute Stand-by - 208 V Input - 208 V AC Output - Sine Wave - 2 x NEMA L6-30R, 4 x NEMA L6-20R - 6 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SRT10KXLT |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS On-Line |

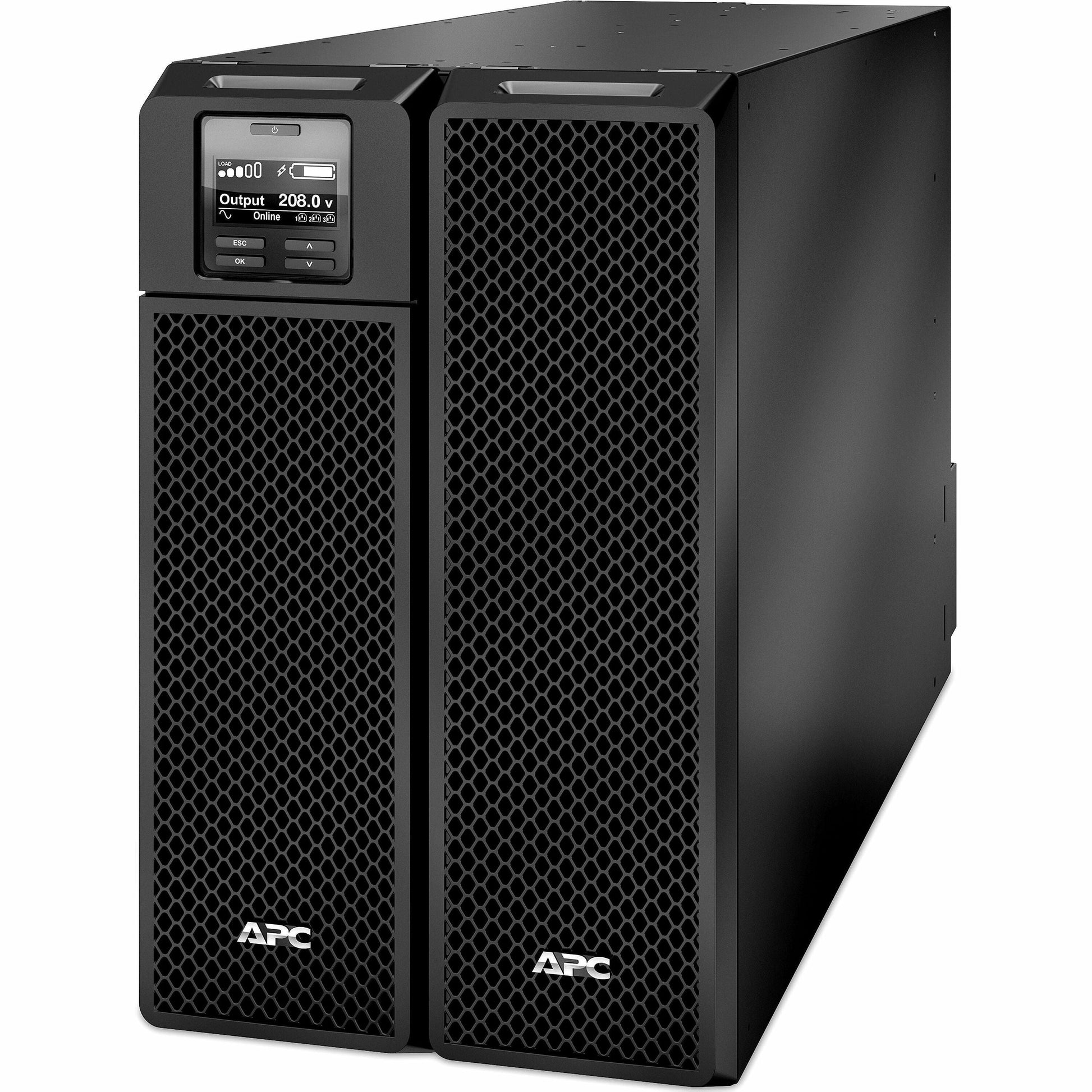

| Product Name: | Smart-UPS SRT 10000VA 208V |
| Marketing Information: | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 6 | Power Description |
| Load Capacity (VA): | 10 kVA |
| Load Capacity (Watt): | 10 kW |
| Input Voltage: | 208 V |
| Output Voltage: | 208 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 480 J | Battery Information |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 4 Minute |
| Typical Battery Recharge Time: | 1.50 Hour | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 17.01" (432 mm) |
| Width: | 10.35" (263 mm) |
| Depth: | 28.15" (715 mm) |
| Form Factor: | Rack-mountable |
| Mounting Location: | Front |
| Weight (Approximate): | 111.58 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | ENERGY STAR V2.0 (USA)|FCC part 15 class A|NOM|UL 1778 |
| Energy Star: | Yes |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT10KXLT_ROHS_DECLARATION&p_FileName=SRT10KXLTKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135460&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135460&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL: | https://www.energystar.gov/products/uninterruptible_power_supplies |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery |
