| UPC | 0037332125859 |
| 1500VA/1200W - 4.5 Minute Full Load - 6 x NEMA 5-15R | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU1500XL |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Model: | SU1500XL |

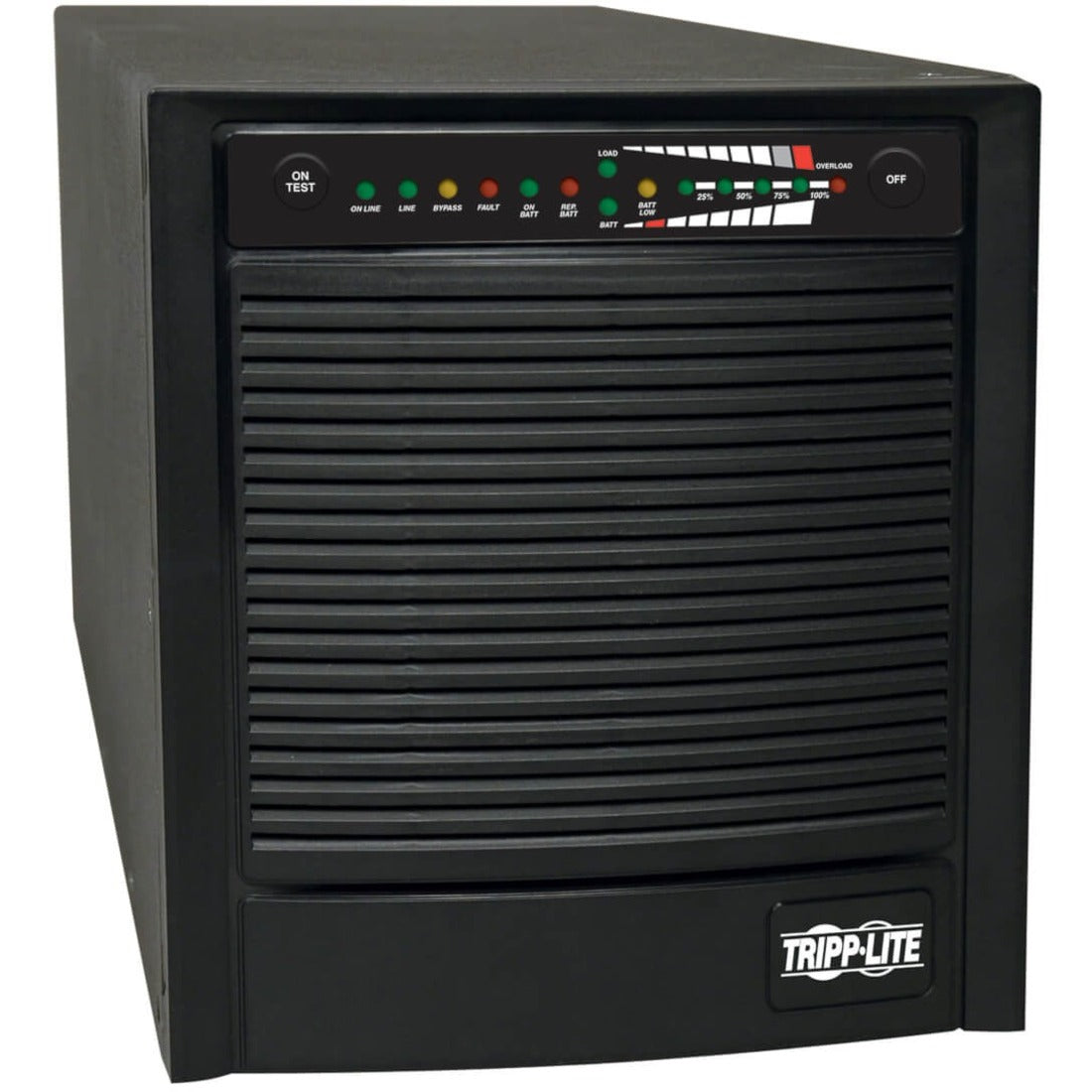

| Product Name: | SmartOnline SU1500XL 1500VA Tower UPS |
| Marketing Information: | Tripp Lite's SmartOnline SU1500XL on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges. Large-capacity 1.5kVA/1200W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Includes 6 UPS-supported outlets. 2 load banks, each with 3 outlets, can be independently controlled via a software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS Power Management Software. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 6 x NEMA 5-15R |
| Dataline Protection: | RJ-45 |
| Bypass Switch: | Automatic |
| Emergency Power OFF: | Yes | Power Description |
| Load Capacity (VA): | 1.50 kVA |
| Load Capacity (Watt): | 1.20 kW |
| Input Voltage: |
|
| Output Voltage: | 120 V AC | Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 4.50 Minute |
| Backup/Run Time (Half Load): | 14 Minute |
| Typical Battery Recharge Time: | 6 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 10.25" (260.35 mm) |
| Width: | 9" (228.60 mm) |
| Depth: | 19.50" (495.30 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 22.36 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: | UL1778 (USA), CSA (Canada), RoHS-compliant, Class A (Emissions), NOM (Mexico), FCC Part 68/Industry Canada |
| Software Included: | PowerAlert Software |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
