Tripp Lite

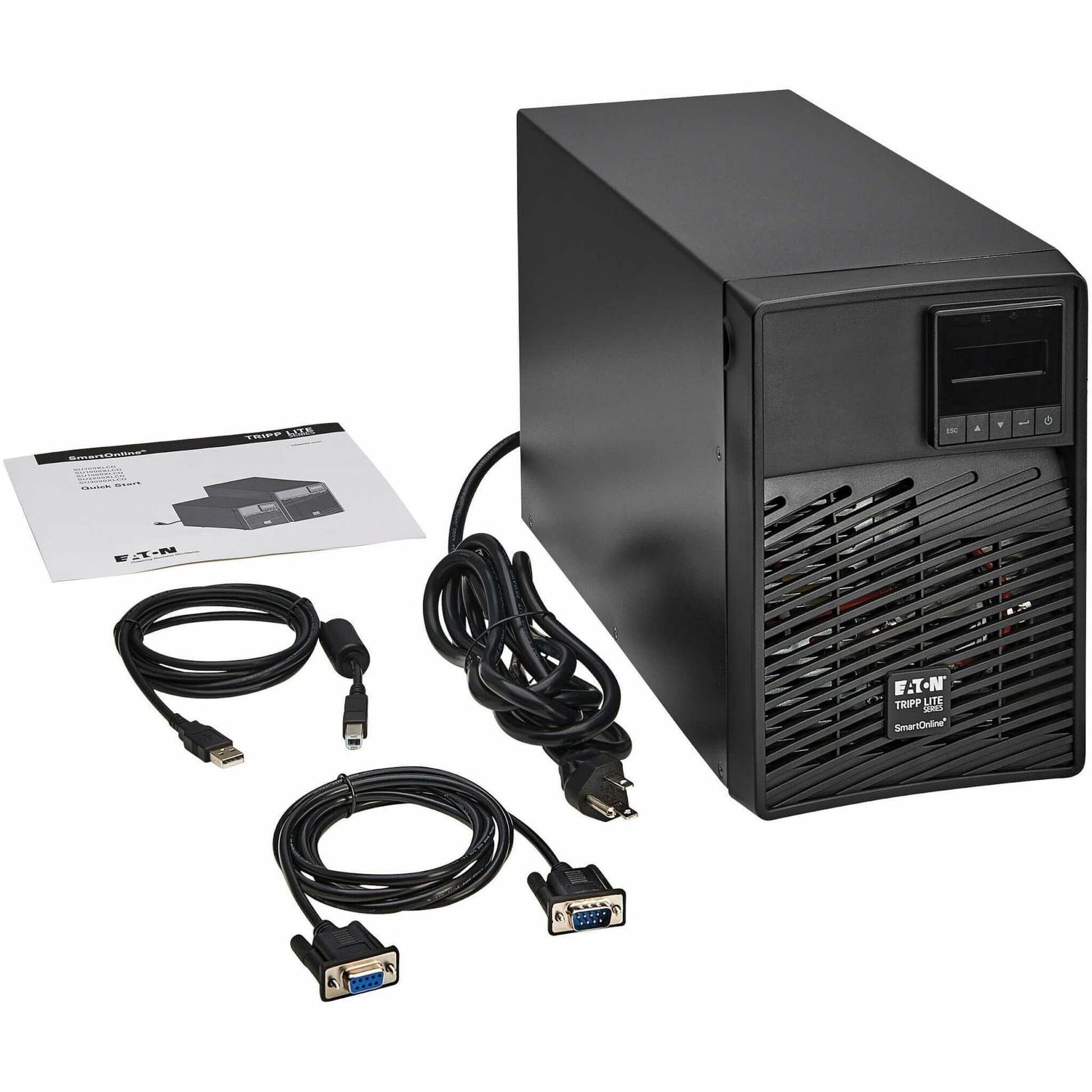

Tripp Lite series SmartOnline SU1500XLCD 1500VA Tower UPS - SU1500XLCD
Tripp Lite series SmartOnline SU1500XLCD 1500VA Tower UPS - SU1500XLCD
Regular price
$1,900.99 CAD
Regular price
Sale price
$1,900.99 CAD
Quantity
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
Tripp Lite series SmartOnline SU1500XLCD 1500VA Tower UPS
| UPC | 0037332174642 |
| 2U Tower - 3 Hour Recharge - 5.80 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 6 x NEMA 5-15R | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU1500XLCD |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite series |
| Product Line: | SmartOnline |
| Product Model: | SU1500XLCD |
| Product Name: | SmartOnline SU1500XLCD 1500VA Tower UPS |
| Marketing Information: |
Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data LossThis on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation isolates sensitive equipment from power problems on the AC line. The SmartOnline ® SU1500XLCD provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential. Reliable, Expandable Battery Backup Keeps You Operational Through Power OutagesThe field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48V, sold separately). Optional LX Platform Network Management Card Allows Remote Access 24/7The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. NEMA 5-15R Outlets Protect Your Connected ComponentsSix NEMA 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform BetterThis UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Clear LCD Interface Keeps You Informed at a GlanceThe menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 6 x NEMA 5-15R |
| Overload Protection: | Yes |
| Bypass Switch: | Automatic |
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.50 kVA |
| Load Capacity (Watt): | 1.35 kW |
| Input Voltage: | 120 V AC |
| Output Voltage: |
|
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 190 J |
| Input Power Factor: | 0.99 |
| Output Power Factor: | 0.9 | Display & Graphics |
| Display: | LCD | Management |
| Network Management: | SNMP |
| Alarm: |
|
Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| DC System Voltage: | 48 V DC |
| Battery Characteristics: | Valve-regulated |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5.80 Minute |
| Backup/Run Time (Half Load): | 16.50 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes | Environmental Conditions |
| Minimum Operating Temperature: | 32 °F (0 °C) |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 32 °F (0 °C) - 104 °F (40 °C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) | Physical Characteristics |
| Height: | 9.93" (252.22 mm) |
| Width: | 6.30" (160.02 mm) |
| Depth: | 17.09" (434.09 mm) |
| Rack Height: | 2U |
| Form Factor: | Tower |
| Weight (Approximate): | 18.50 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | PowerAlert Software |
| Energy Star: | Yes |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
Power
VA Rating
1500VA
Wattage
1350W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
100V
Receptacles
6× NEMA 5-15R
Features
Form Factor
Tower/Rack Convertible
Connectivity
["USB""RS-232 Serial""SNMP (via Network Management Card)""HTTP/Web Management"]
Extended Runtime Capable
true
Condition
New
Dimensions
252 × 160 × 434 mm (9.93 × 6.30 × 17.09 in)
Weight
18.5kg
Manufacturer Warranty
2 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (675 W)
12.0 min
Full load (1350 W)
5.8 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Bookmark this page
before you need it.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
