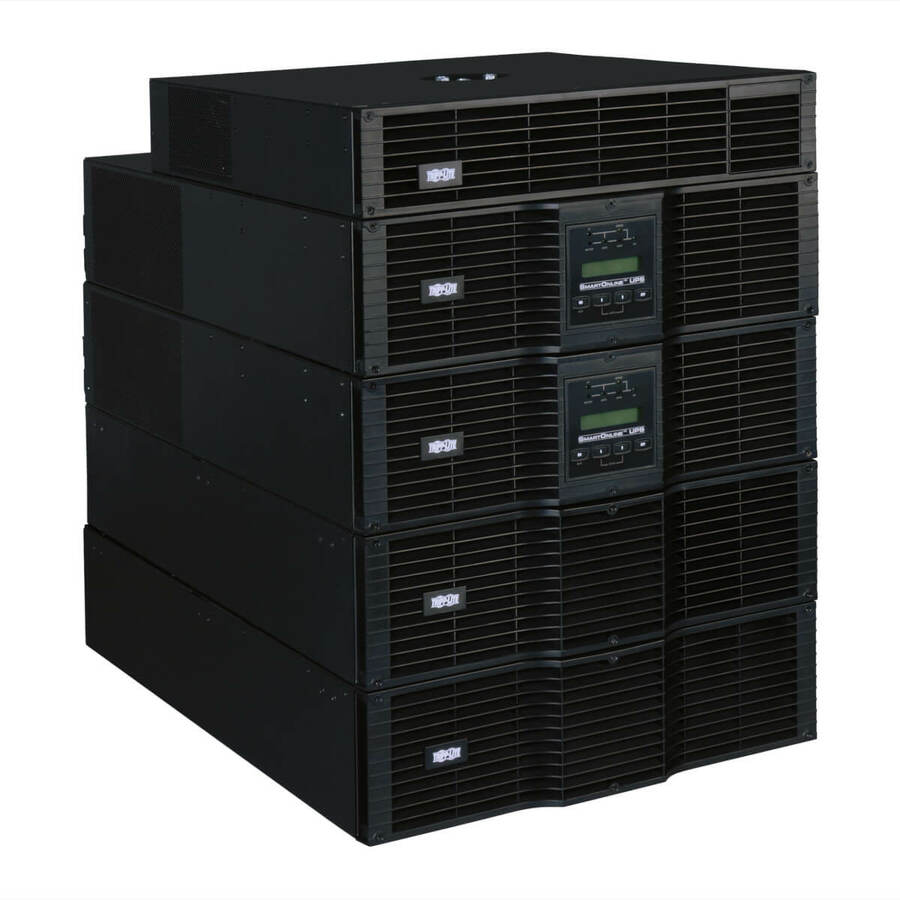

Tripp Lite SU20KRT-1TF 20,000VA / 20kVA / 18,000 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 14U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 10kVA, and non-redundant operation at loads between 10 and 20kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | Hardwired |
| Receptacle Type |
|
| Receptacle Detail |
|
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| Load Capacity | 20 kVA |
| Input Voltage |
|
| Output Voltage |
|
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 4.30 Minute |
| Backup/Run Time (Half Load) | 12.50 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Form Factor | Rack/Tower |
| Rack Height | 14U |
| Height | 5.14" (130.56 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 26" (660.40 mm) |
| Weight (Approximate) | 20 kg |
| Package Contents |
|
| Software Included | PowerAlert Software |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.

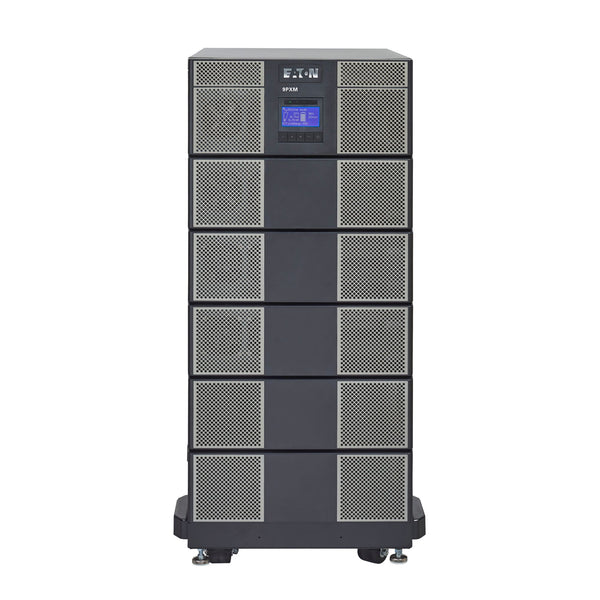

If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
Available on orderWe confirm price and freight before ordering.
