| UPC | 0037332237934 |
| 3U Rack/Tower - 3 Hour Recharge - 5 Minute Stand-by - 230 V AC Input - 120 V AC, 208 V AC Output - Single Phase - Serial Port - 2 x NEMA L6-30R, 2 x NEMA L6-20R, 12 x NEMA 5-20R - TAA Compliant | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU5KRT3UTF |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Model: | SU5KRT3UTF |

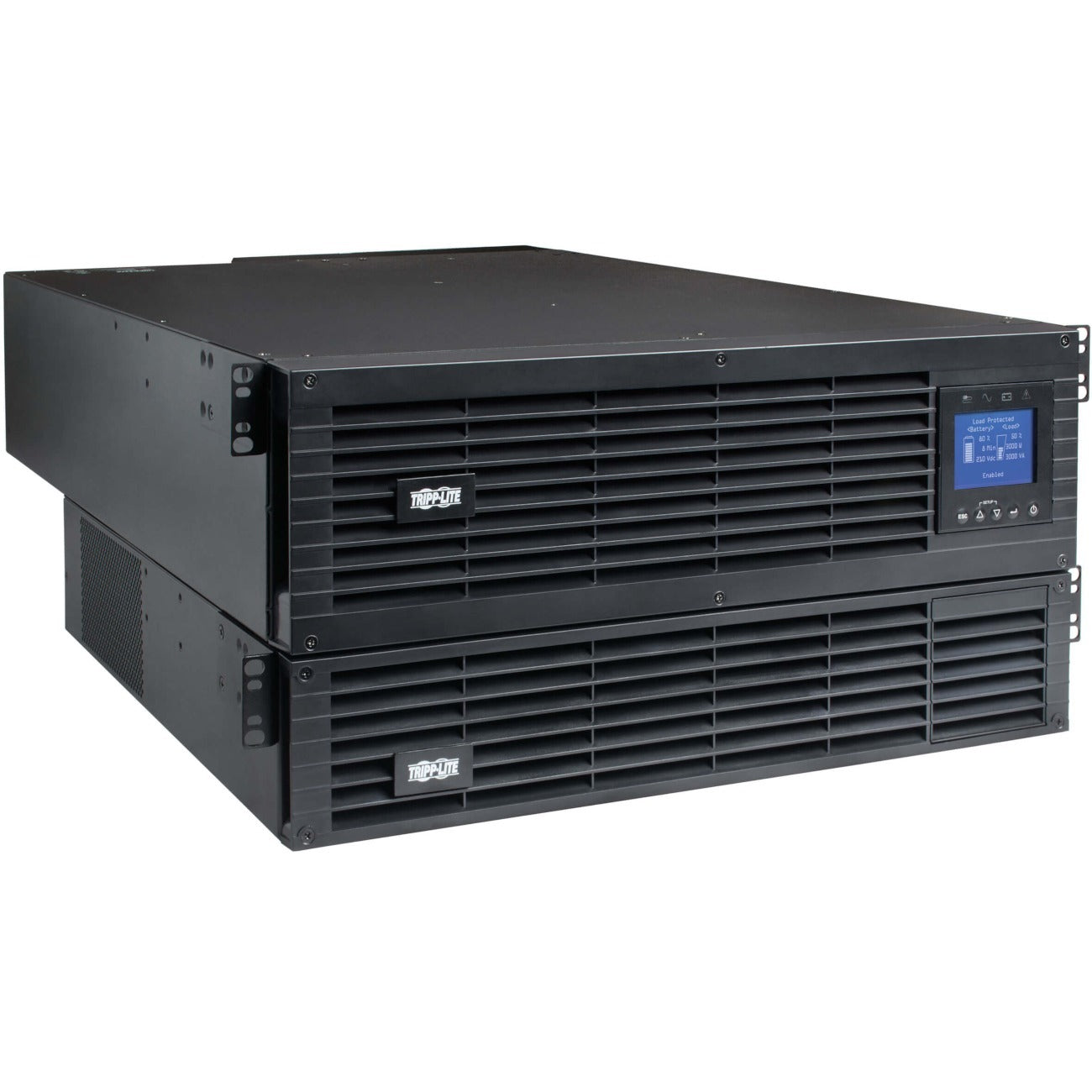

| Product Name: | SmartOnline SU5KRT3UTF 5kVA Rack/Tower UPS |
| Marketing Information: |
Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss Tripp Lite's SU5KRT3UTF Unity Power Factor UPS system protects connected equipment against damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Unity Power Factor design enables full 5000VA / 5000W output capacity when used with hardwire 208V input power (output de-rates to 4800W with included L6-30P input cord option). In double-conversion mode, this UPS system maintains perfect output by continuously converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with ±1% voltage regulation and zero transfer time between online and battery modes. Featuring true on-line, double-conversion operation, Tripp Lite's SmartOnline® SU5KRT3UTF provides the highest level of UPS power protection for critical server, network and telecom equipment. Reliable, Expandable Battery Backup UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 15 minutes of support at half load and 5 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. Advanced temperature-controlled battery charge management system provides efficient recharge and enhanced battery lifespan. For mission-critical applications demanding continuous uptime, the 5kVA UPS can provide expandable runtime with optional BP192V12RT3US external battery pack (sold separately). Battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries. Economy Mode Helps the Environment and Your Cash Flow Operates with >98% full-load efficiency in optional economy mode significantly reducing BTU heat output and operating energy costs. Intuitive Front-Panel Interface offers Convenient Monitoring Front-panel LEDs indicate line power, AC output, On-battery mode, and Fault conditions. The LCD readout with scroll controls supports visual monitoring of a variety of control options to support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or tower configuration. Pre-installed WEBCARDLXMINI Network Interface Offers 24/7 Access Pre-installed WEBCARDLXMINI interface, which enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. Advanced Communications Ports USB and DB9 ports with included cabling enable data-saving unattended shutdown of connected systems when used with Tripp Lite's free downloadable PowerAlert® software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions. DB9 ports also support basic contact-closure monitoring to report On-battery and Low-battery status for legacy systems. Versatile Installation Options Hardware is included for mounting the 3U 5kVA UPS system and included 2U step-down transformer in 5U total rack spaces in an EIA-standard 19-inch 4-post rack. Use the optional 2POSTRMKITHD for 2-post rack mounting (qty 2 required) or the optional 2-9USTAND for mounting in an upright tower position. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: |
|
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Overload Protection: | Yes |
| Transfer Time: | 0 ns |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 5 kVA |
| Load Capacity (Watt): | 5 kW |
| Input Voltage: | 230 V AC |
| Output Voltage: |
|
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 1680 J | Management |
| Network Management: | SNMP/Telnet/SSH |
| Alarm: | UPS Power Condition | Controls/Indicators |
| Status Indicators: |
Front Panel LCD Display:
4 Front-panel LEDs:
|
Interfaces/Ports |
| Serial Port: | Yes |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 192 V DC |
| Number of Batteries: | 4 |
| Battery Characteristics: | Valve-regulated |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 14 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Elevation: | 6562 ft (2000097.60 mm) |
| Sound Emission: | 67 dB |
| Thermal Dissipation: | 1050 BTU/h | Physical Characteristics |
| Height: | 8.74" (222 mm) |
| Width: | 17.52" (445 mm) |
| Depth: | 30" (762 mm) |
| Rack Height: | 3U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 53.30 kg | Miscellaneous |
| Package Contents: |
|
| Software Included: | PowerAlert |
| Energy Star: | Yes |
| Country of Origin: | Taiwan |
| TAA Compliant: | Yes |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
