Tripp Lite
Available on order
Ships by freight (over 68 kg). We confirm the delivered price in writing before you pay.
Available on order
Written reply within 1 business day, no obligation.
Supports extended runtime: add battery packs in your quote
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
Questions? 438-881-3363 · Mon to Fri
| UPC | 0037332157225 |
| 6U Rack/Tower - 6 Hour Recharge - 2 Minute Stand-by - 208 V AC, 240 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - Serial Port - USB - 4 x NEMA 5-15R, 1 x NEMA L6-30R, 8 x NEMA 5-15/20R - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU6000RT4UTFHW |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Series: | EZ |
| Product Model: | SU6000RT4UTFHW |

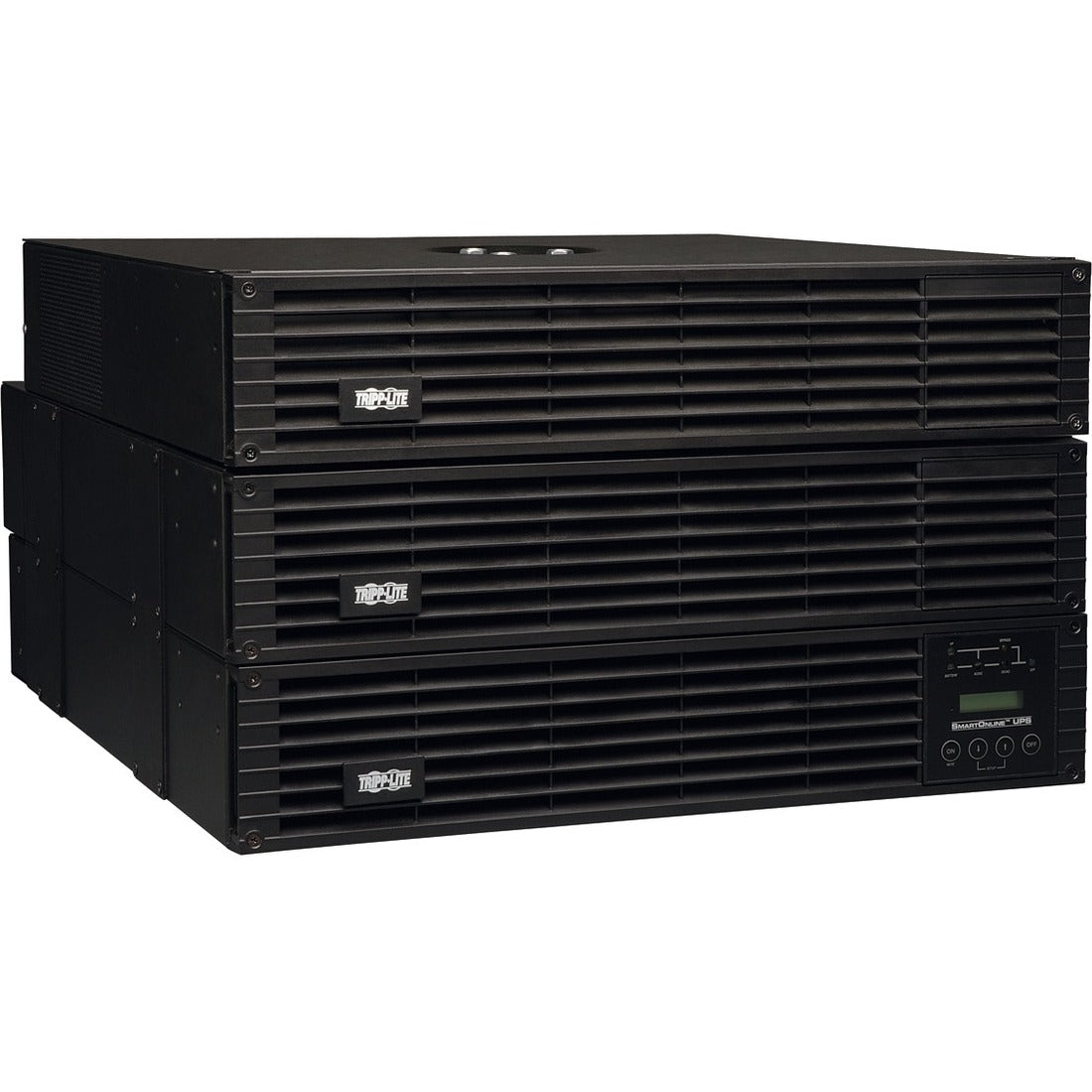

| Product Name: | SmartOnline EZ SU6000RT4UTFHW 6000 VA Tower/Rack Mountable UPS |
| Marketing Information: | Tripp Lite SU6000RT4UTFHW 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 6U rack/tower compatible configuration. Maintains full-time sine wave output within 2% of selectable 208/240V and 120V nominal at 60Hz during brownouts as low 100V and overvoltages as high as 300V. Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Included PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS. Hardwire input. Hardwire UPS output, plus 1 L6-30R, 8 5-15/20R and 4 5-15R outlets. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Bypass Switch: |
|
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns | Power Description |
| Load Capacity (VA): | 6 kVA |
| Load Capacity (Watt): | 5.40 kW |
| Input Voltage: |
|
| Input Current: | 30.60 A |
| Output Voltage: |
|
Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 2 Minute |
| Backup/Run Time (Half Load): | 8.50 Minute |
| Typical Battery Recharge Time: | 6 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 6.85" (173.99 mm) |
| Width: | 17.50" (444.50 mm) |
| Depth: | 20.70" (525.78 mm) |
| Rack Height: | 6U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 52.71 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | PowerAlert Software Suite |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
The manufacturer no longer makes the SU6000RT4UTFHW. These UPS are sold today; each card compares one with the discontinued model.
| Spec | SU6000RT4UTFHW | Xtreme Power |
|---|---|---|
| Capacity | 6000 VA / 5400 W | 6000 VA / 6000 W |
| Topology | Online Double-Conversion | Online Double-Conversion |
| Form | Rackmount 5U+, 6U | Tower/Rack Convertible, 4U |
| Input plug | Hardwired | Hardwired |
| Outlets | 4 × NEMA 5-15R, 8 × NEMA 5-15/20R, 1 × NEMA L6-30R, 1 × Hardwire terminal block | 1 × Hardwire terminal block |
| Runtime, half load | 9 min | 15 min |
Differences
| Spec | SU6000RT4UTFHW | 360PQ |
|---|---|---|
| Capacity | 6000 VA / 5400 W | 6000 VA / 6000 W |
| Topology | Online Double-Conversion | Online Double-Conversion |
| Form | Rackmount 5U+, 6U | Tower/Rack Convertible |
| Input plug | Hardwired | Hardwired |
| Outlets | 4 × NEMA 5-15R, 8 × NEMA 5-15/20R, 1 × NEMA L6-30R, 1 × Hardwire terminal block | 1 × Hardwire terminal block |
| Runtime, half load | 9 min | Not stated |
Differences
| Spec | SU6000RT4UTFHW | Delta |
|---|---|---|
| Capacity | 6000 VA / 5400 W | 6000 VA / 6000 W |
| Topology | Online Double-Conversion | Online Double-Conversion |
| Form | Rackmount 5U+, 6U | Tower/Rack Convertible, 4U |
| Input plug | Hardwired | Hardwired |
| Outlets | 4 × NEMA 5-15R, 8 × NEMA 5-15/20R, 1 × NEMA L6-30R, 1 × Hardwire terminal block | 2 × NEMA L6-20R, 1 × NEMA L6-30R, 1 × NEMA L6-30R, 1 × Hardwire terminal block (4 on battery) |
| Runtime, half load | 9 min | Not stated |
Differences
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
The manufacturer no longer makes the SU6000RT4UTFHW. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Only accessories the manufacturer lists for this model.
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
