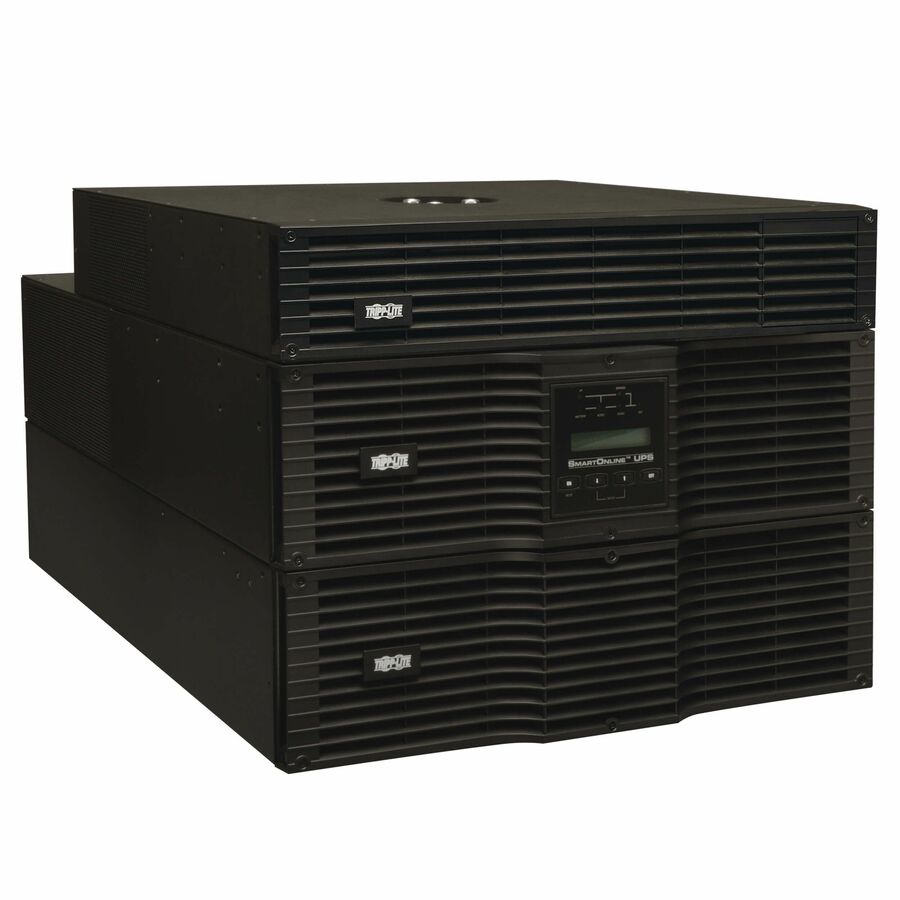

SmartOnline SU8000RT3U1TF 8kVA Tower/Rack Mountable UPS Ideal for protection of sensitive electronics in any application calling for upright tower or 19 inch rackmount UPS protection. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | Hardwired |
| Receptacle Type |
|
| Receptacle Detail |
|
| Load Capacity | 8 kVA |
| Input Voltage | 208 V AC |
| Output Voltage |
|
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Backup/Run Time (Half Load) | 13.50 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Form Factor | Rack/Tower |
| Rack Height | 8U |
| Height | 5.14" (130.56 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 25" (635 mm) |
| Weight (Approximate) | 24.95 kg |
| Package Contents |
|
| Software Included | PowerAlert UPS Monitoring Software |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
The manufacturer no longer makes the SU8000RT3U1TF. These UPS are sold today; each card compares one with the discontinued model.
| Spec | SU8000RT3U1TF | Xtreme Power |
|---|---|---|
| Capacity | 8000 VA / 7200 W | 10000 VA / 10000 W |
| Topology | Online Double-Conversion | Online Double-Conversion |
| Form | Rackmount 5U+, 8U | Tower/Rack Convertible, 7U |
| Input plug | Hardwired | Hardwired |
| Outlets | 12 × NEMA 5-15/20R, 4 × NEMA L6-20R, 2 × NEMA L6-30R | 2 × NEMA L6-20R, 1 × NEMA L6-30R, 12 × NEMA 5-15/20R |
| Runtime, half load | 14 min | 15 min |
Differences
| Spec | SU8000RT3U1TF | Delta |
|---|---|---|
| Capacity | 8000 VA / 7200 W | 8000 VA / 8000 W |
| Topology | Online Double-Conversion | Online Double-Conversion |
| Form | Rackmount 5U+, 8U | Tower/Rack Convertible, 5U |
| Input plug | Hardwired | Hardwired |
| Outlets | 12 × NEMA 5-15/20R, 4 × NEMA L6-20R, 2 × NEMA L6-30R | 2 × NEMA L6-20R, 2 × NEMA L6-30R, 1 × NEMA L6-30R, 1 × Hardwire terminal block (5 on battery) |
| Runtime, half load | 14 min | Not stated |
Differences
| Spec | SU8000RT3U1TF | Delta |
|---|---|---|
| Capacity | 8000 VA / 7200 W | 10000 VA / 10000 W |
| Topology | Online Double-Conversion | Online Double-Conversion |
| Form | Rackmount 5U+, 8U | Tower/Rack Convertible, 5U |
| Input plug | Hardwired | Hardwired |
| Outlets | 12 × NEMA 5-15/20R, 4 × NEMA L6-20R, 2 × NEMA L6-30R | 2 × NEMA L6-20R, 2 × NEMA L6-30R, 1 × NEMA L6-30R, 1 × Hardwire terminal block (5 on battery) |
| Runtime, half load | 14 min | Not stated |
Differences
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
The manufacturer no longer makes the SU8000RT3U1TF. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Only accessories the manufacturer lists for this model.

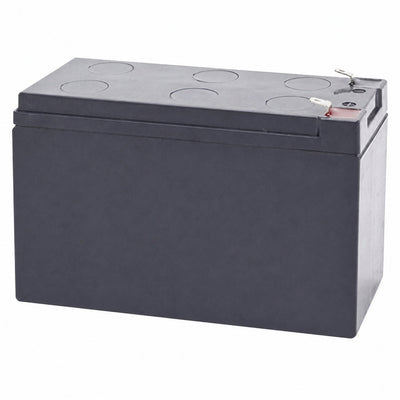

A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
