About this UPS

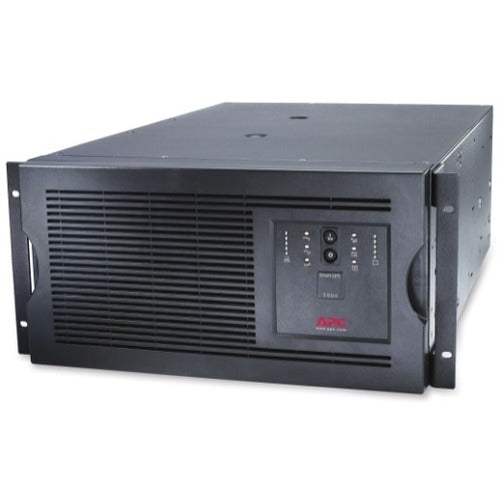

APC Smart-UPS 5000VA Rackmountable UPS
| UPC | 0731304255321 |
| 5000VA/4000W - 9.4 Minute Full Load - 8 x IEC 320-C13, 2 x IEC 320-C19, 6 x IEC Jumper | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SUA5000RMI5U |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | SUA |
| Product Model: | SUA5000RMI5U |
| Product Name: | Smart-UPS 5000VA Rackmountable UPS |
| Marketing Information: | APC Smart-UPS 5000VA Rackmountable UPS protects critical data by supplying reliable, network-grade power in either traditional tower or rack-optimized form factors. Award-winning Smart-UPS 5000VA Rackmountable UPS is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATM's. High real power output (watts), generous runtime, sine wave output, 16-segment LED visual display, and intelligent battery management make Smart-UPS the leading server class UPS. Included PowerChute management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance the performance of your UPS. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | Hard Wire 3-wire |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 14 | Power Description |
| Load Capacity (VA): | 5 kVA |
| Load Capacity (Watt): | 4 kW |
| Input Voltage: | 220 V AC |
| Output Voltage: | 230 V AC |
| Waveform Type: | Sine Wave | Management |
| Network Management: | SNMP Manageable | Battery Information |
| Number of Batteries: | 2 |
| Battery Chemistry: | Lead Acid |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 8.74" (222 mm) |
| Width: | 19.02" (483 mm) |
| Depth: | 25.98" (660 mm) |
| Rack Height: | 5U |
| Form Factor: | Rack-mountable |
| Weight (Approximate): | 97.73 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | Regulatory Approvals: C-tick,CE,EN 50091-1,EN 50091-2,GOST,GS Mark,VDE |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

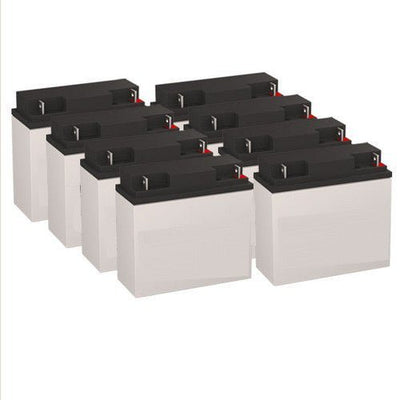

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
