About this UPS

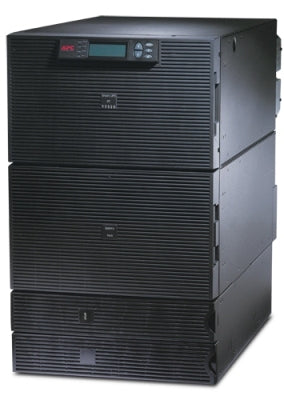

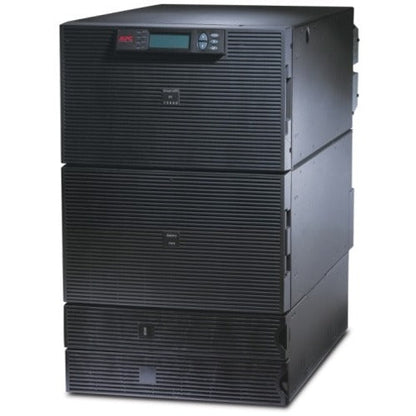

APC by Schneider Electric Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS
| UPC | 731304739821 |
| 16U Rack-mountable - 2.50 Hour Recharge - 8 Minute Stand-by - 208 V AC Input - 120 V AC, 208 V AC Output - 2 x NEMA L14-30R, 2 x NEMA L5-20R, 2 x NEMA L6-30R, 4 x NEMA L6-20R - Sine Wave - Serial Port | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SURT15KRMXLT-1TF10K |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Model: | SURT15KRMXLT-1TF10K |
| Product Name: | Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS |
| Marketing Information: | High density, double-conversion on-line power protection with scalable runtime |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hard Wire 3-wire |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 11 |
| Overload Protection: | Yes | Power Description |
| Load Capacity (VA): | 15 kVA |
| Input Voltage: | 208 V AC |
| Output Voltage: |
|
| Input Frequency: | 50 Hz |
| Output Frequency: | 60 Hz |
| Input Current: | 83 A |
| Waveform Type: | Sine Wave | Management |
| Network Management: | SNMP Manageable |
| Bypass Switch: |
|
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| Modular Slots: | SmartSlot | Battery Information |
| Number of Batteries: | 4 |
| Battery Characteristics: | Maintenance-free/Sealed/Spill Proof |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 8 Minute |
| Typical Battery Recharge Time: | 2.50 Hour | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Form Factor: | Rack-mountable |
| Rack Height: | 16U |
| Mounting Location: | Front |
| Mounting Preference: | Lower |
| Height: | 27.87" (708 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 30.43" (773 mm) |
| Weight (Approximate): | 347.73 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | UL 1778| |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT15KRMXLT1TF10K_ROHS_DECLARATION&p_FileName=SURT15KRMXLT1TF10KKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567115162&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567115162&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
| Additional Warranty Information: | 2 years repair or replace |
Technical specifications
Power
VA Rating
15000VA
Wattage
12000W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
208V
Output
Output Voltage
120V
Receptacles
2× NEMA L14-30R2× NEMA L5-20R2× NEMA L6-30R4× NEMA L6-20R
Features
Form Factor
Rackmount 5U+
Rack Units
16U
Connectivity
RS-232 SerialSNMP (via Network Management Card)HTTP/Web ManagementSmart Slot (expansion bay)
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
708 × 432 × 773 mm (27.87 × 17.01 × 30.43 in)
Weight
347.73kg
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

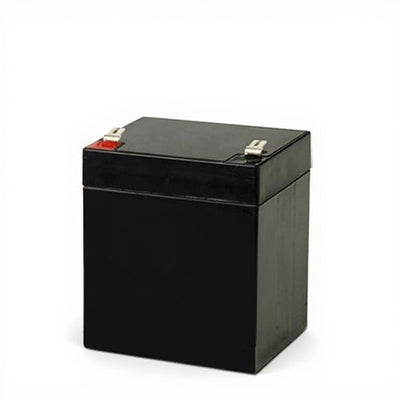

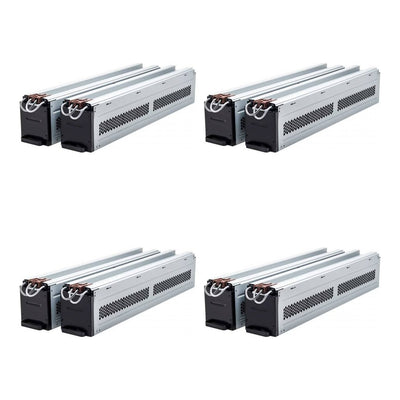

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
