APC Smart-UPS RT 20kVA Tower/Rack Mountable UPS - SURT20KRMXLT-TF5
APC Smart-UPS RT 20kVA Tower/Rack Mountable UPS - SURT20KRMXLT-TF5
Items above $10000 are handled by quote so we can confirm availability, freight, and final pricing.
Written reply within 1 business day — no obligation.
Supports extended runtime — add battery packs in your quote
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
APC Smart-UPS RT 20kVA Tower/Rack Mountable UPS
| UPC | 731304573487 |
| 4.9 Minute Full Load, 15.3 Minute Half Load - 20kVA - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SURT20KRMXLTTF5 |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | RT |
| Product Name: | Smart-UPS RT 20kVA Tower/Rack Mountable UPS |
| Marketing Information: | High density, double-conversion on-line power protection with scalable runtime |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hard Wire 3-wire |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 17 |
| Overload Protection: | Yes | Power Description |
| Load Capacity (VA): | 20 kVA |
| Input Voltage: | 208 V AC |
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz |
| Input Current: | 105 A |
| Waveform Type: | Sine Wave | Management |
| Network Management: | SNMP Manageable |
| Bypass Switch: |
|
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Serial Port: | Yes |
| Network (RJ-45): | Yes | Battery Information |
| Battery Characteristics: | Spill-proof/Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 4.90 Minute |
| Backup/Run Time (Half Load): | 15.30 Minute |
| Typical Battery Recharge Time: | 2.50 Hour | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Form Factor: | Rack-mountable |
| Rack Height: | 14U |
| Mounting Location: | Front |
| Mounting Preference: | Lower |
| Height: | 24.49" (622 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 30.43" (773 mm) |
| Weight (Approximate): | 290.91 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | UL 1778 |
| Software Included: | PowerChute Management Software |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT-TF5_ROHS_DECLARATION&p_FileName=SURT20KRMXLT-TF5KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035887&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035887&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
| Additional Warranty Information: | 2 years repair or replace |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.

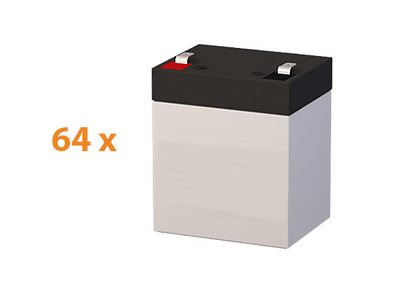

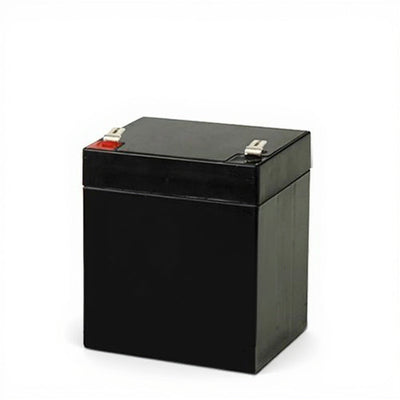

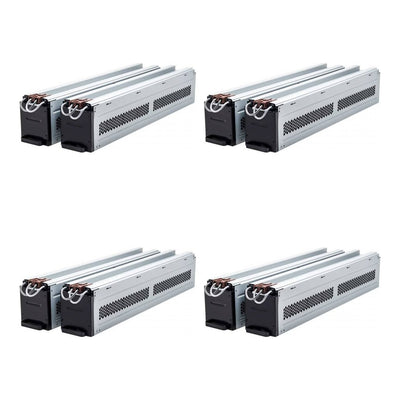

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
