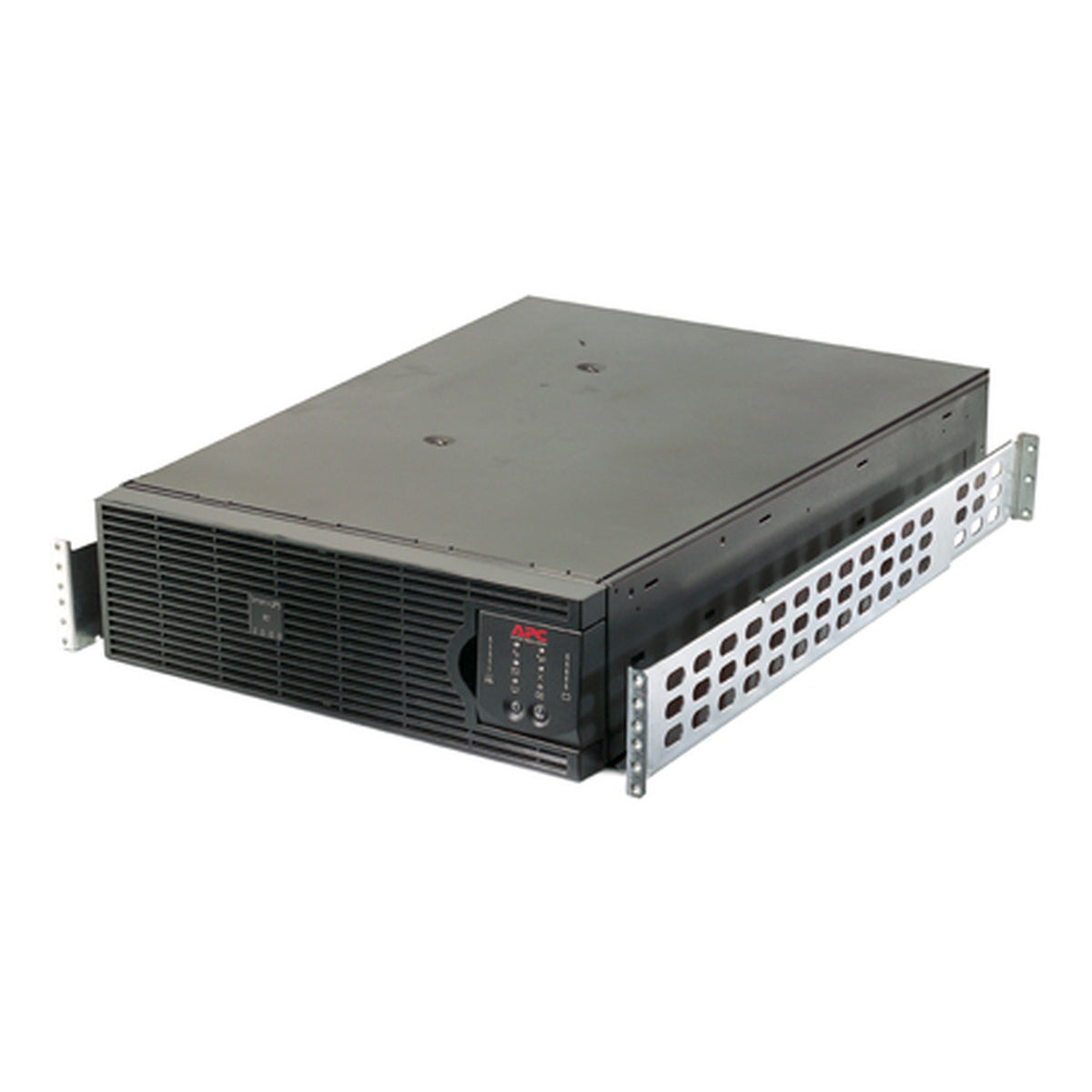

APC Smart-UPS RT SURTD5000RMXLP3U 5000 VA / 4000 W 3U Rack Online UPS
APC Smart-UPS RT SURTD5000RMXLP3U 5000 VA / 4000 W 3U Rack Online UPS
Items above $10000 are handled by quote so we can confirm availability, freight, and final pricing.
Available on order
Written reply within 1 business day, no obligation.
Supports extended runtime: add battery packs in your quote
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
APC Smart-UPS RT 5000VA Tower/Rack-mountable UPS
| UPC | 0731304258810 |
| 5000VA/4000W - 4.8 Minute Full Load - 1 x NEMA L6-20R, 1 x NEMA L14-30R, 4 x NEMA 5-20R | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SURTD5000RMXLP3U |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | RT |
| Product Name: | Smart-UPS RT 5000VA Tower/Rack-mountable UPS |
| Marketing Information: | High density, double-conversion on-line power protection with scalable runtime |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA L14-30P |
| Receptacle Type: | NEMA L14-30P |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 6 |
| Bypass Switch: |
|
| Emergency Power OFF: | Yes |
| Cord Length: | 10 ft | Power Description |
| Load Capacity (VA): | 5 kVA |
| Load Capacity (Watt): | 4 kW |
| Input Voltage: | 208 V |
| Output Voltage: |
|
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 365 J | Interfaces/Ports |
| Serial Port: | Yes | Battery Information |
| Battery Characteristics: | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 4.80 Minute |
| Backup/Run Time (Half Load): | 15.10 Minute |
| Typical Battery Recharge Time: | 2.50 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 5.12" (130 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 25.98" (660 mm) |
| Rack Height: | 3U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Mounting Location: | Front |
| Weight (Approximate): | 58.06 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | CSA |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURTD5000RMXLP3U_ROHS_DECLARATION&p_FileName=SURTD5000RMXLP3UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765934&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765934&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
| Additional Warranty Information: | 2 years repair or replace |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Works with this UPS
Only accessories the manufacturer lists for this model.

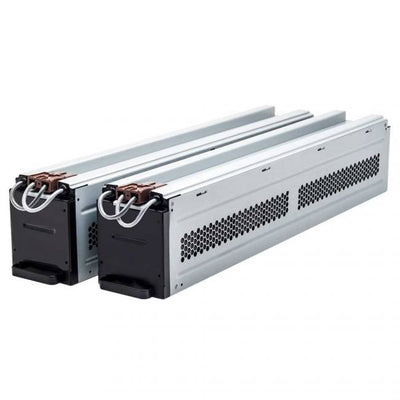

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
