| UPC | 0731304258827 |
| 6000VA/4200W - 4.4 Minute Full Load - 1 x NEMA L6-30R, 1 x NEMA L14-30R, 4 x NEMA 5-20R | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SURTD6000RMXLP3U |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | RT |

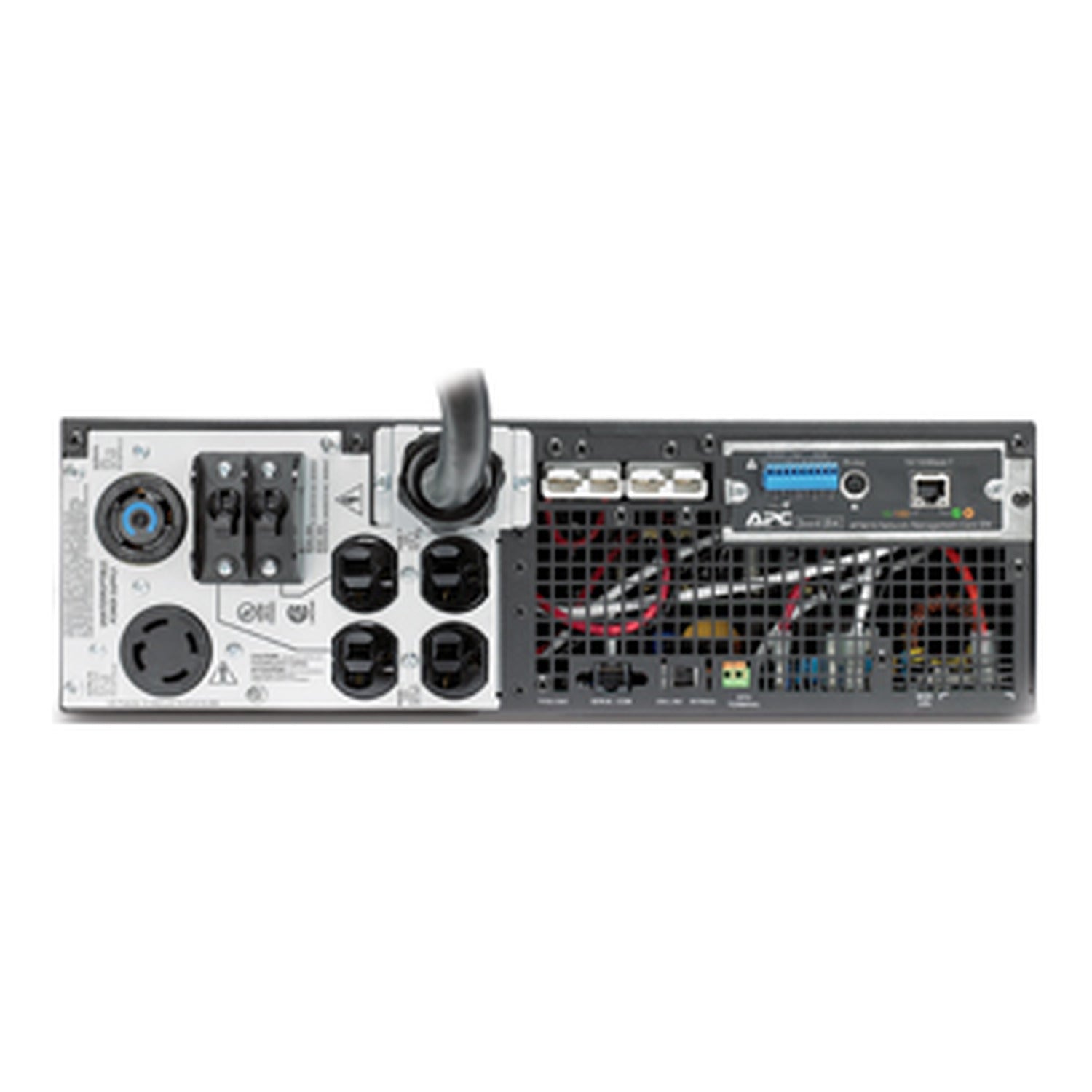

| Product Name: | Smart-UPS RT 6000VA Rack-Mountable UPS |
| Marketing Information: | High density, double-conversion on-line power protection with scalable runtime |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA L14-30P |
| Receptacle Type: | NEMA L14-30P |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 6 |
| Bypass Switch: |
|
| Emergency Power OFF: | Yes |
| Cord Length: | 10 ft | Power Description |
| Load Capacity (VA): | 6 kVA |
| Load Capacity (Watt): | 4.20 kW |
| Input Voltage: | 208 V |
| Output Voltage: |
|
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 480 J | Interfaces/Ports |
| Serial Port: | Yes | Battery Information |
| Battery Characteristics: | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 4.40 Minute |
| Backup/Run Time (Half Load): | 14.10 Minute |
| Typical Battery Recharge Time: | 2.50 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 5.12" (130 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 25.98" (660 mm) |
| Rack Height: | 3U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Mounting Location: | Front |
| Weight (Approximate): | 58.06 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | CSA |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURTD6000RMXLP3U_ROHS_DECLARATION&p_FileName=SURTD6000RMXLP3UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765948&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765948&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
| Additional Warranty Information: | 2 years repair or replace |
