| UPC | 0037332186706 |
| Tower - 5.50 Minute Stand-by - 120 V AC, 230 V AC Input - 120 V AC, 230 V AC Output | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SUT30K |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Series: | SUT |
| Product Model: | SUT30K |

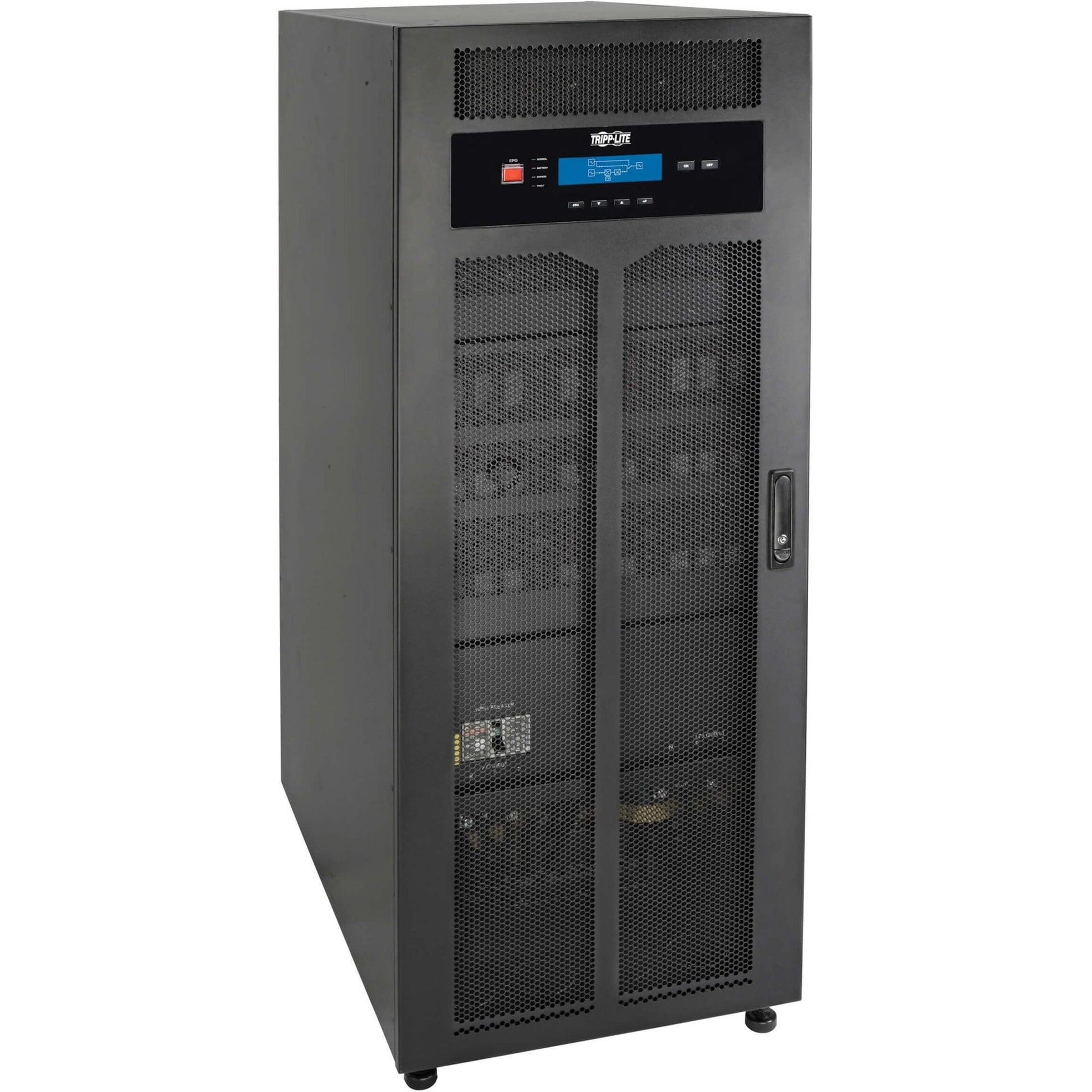

| Product Name: | SmartOnline SUT30K 30kVA Tower UPS |
| Marketing Information: | The SUT30K SmartOnline® SUT Series 3-Phase 208/120V 220/127V 30kVA 30kW On-Line Double-Conversion UPS provides complete protection against power interruptions and fluctuations that can contribute to equipment failures and data loss. It's recommended for critical data center, telecommunications, computer network, light industrial and financial applications. The Voltage and Frequency Independent (VFI) design allows continuous operation at either 50 or 60 Hz. Zero transfer time from online to battery mode ensures no disruption to attached equipment loads. Offering an efficiency of 94% during normal operation and 98% in economy mode, the SUT30K reduces energy losses for cost-saving operation. Automatic bypass keeps connected equipment powered, even during overloads and many potential UPS fault conditions. IGBT inverter technology produces output power with less than 2% total harmonic distortion (THDi) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands. Managing the SUT30K is simplified through the multi-language LCD interface, which displays critical operating conditions and diagnostic data, such as battery and load status. Four LEDs indicate AC, bypass, battery and fault modes. A built-in card slot supports optional remote management cards, such as WEBCARDLX, for comprehensive monitoring and control over a network. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: | Hardwired |
| Phase: | Three Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 30 kVA |
| Input Voltage: |
|
| Output Voltage: |
|
| Waveform Type: | Pure Sine Wave | Management |
| Network Management: | SNMP Manageable | Battery Information |
| Backup/Run Time (Full Load): | 5.50 Minute |
| Backup/Run Time (Half Load): | 15.70 Minute | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 53.15" (1350.01 mm) |
| Width: | 20.50" (520.70 mm) |
| Depth: | 31.50" (800.10 mm) |
| Weight (Approximate): | 364.69 kg | Miscellaneous |
| Package Contents: |
|
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 1 Year |
