- Brand: APC by Schneider Electric
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SUVTR20KF2B5S
- Input Voltage: 220 V AC
- Plug/Connector Type: Hard Wire 5-wire

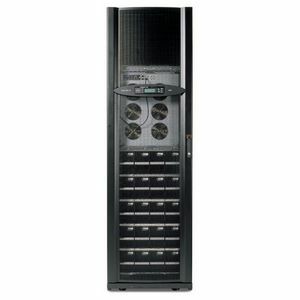

- Product Family: Smart-UPS VT
- Backup/Run Time (Half Load): 18.10 Minute
- Backup/Run Time (Full Load): 5.50 Minute
- Load Capacity: 20 kVA
Marketing Information:
Over 10 million installed - now available in three-phase!
Smart-UPS VT SUVTR20KF2B5S offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements. The rack mounted version maximizes valuable floor space by incorporating UPS, power distribution, and additional battery capacity in a single rack. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators due to its soft start feature. The APC Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and provides integration with InfraStruXure Manager. All these features make it the easiest UPS in its class to deploy, manage and maintain.
PRODUCT SPECIFICATIONS | |
---|---|
Plug/Connector Type | Hard Wire 5-wire |
Receptacle Type |
|
Receptacle Detail |
|
Overload Protection | Yes |
Load Capacity | 20 kVA |
Input Voltage | 220 V AC |
Output Voltage |
|
Input Frequency | 70 Hz |
Output Frequency | 60 Hz |
Network Management | SNMP Manageable |
Battery Chemistry | Lead Acid |
Backup/Run Time (Full Load) | 5.50 Minute |
Backup/Run Time (Half Load) | 18.10 Minute |
Typical Battery Recharge Time | 3 Hour |
Height | 78.54" (1994.92 mm) |
Width | 23.62" (599.95 mm) |
Depth | 42" (1066.80 mm) |
Weight (Approximate) | 564.27 kg |
Package Contents |
|
Limited Warranty | 1 Year |
Call us if more information required.
