About this UPS

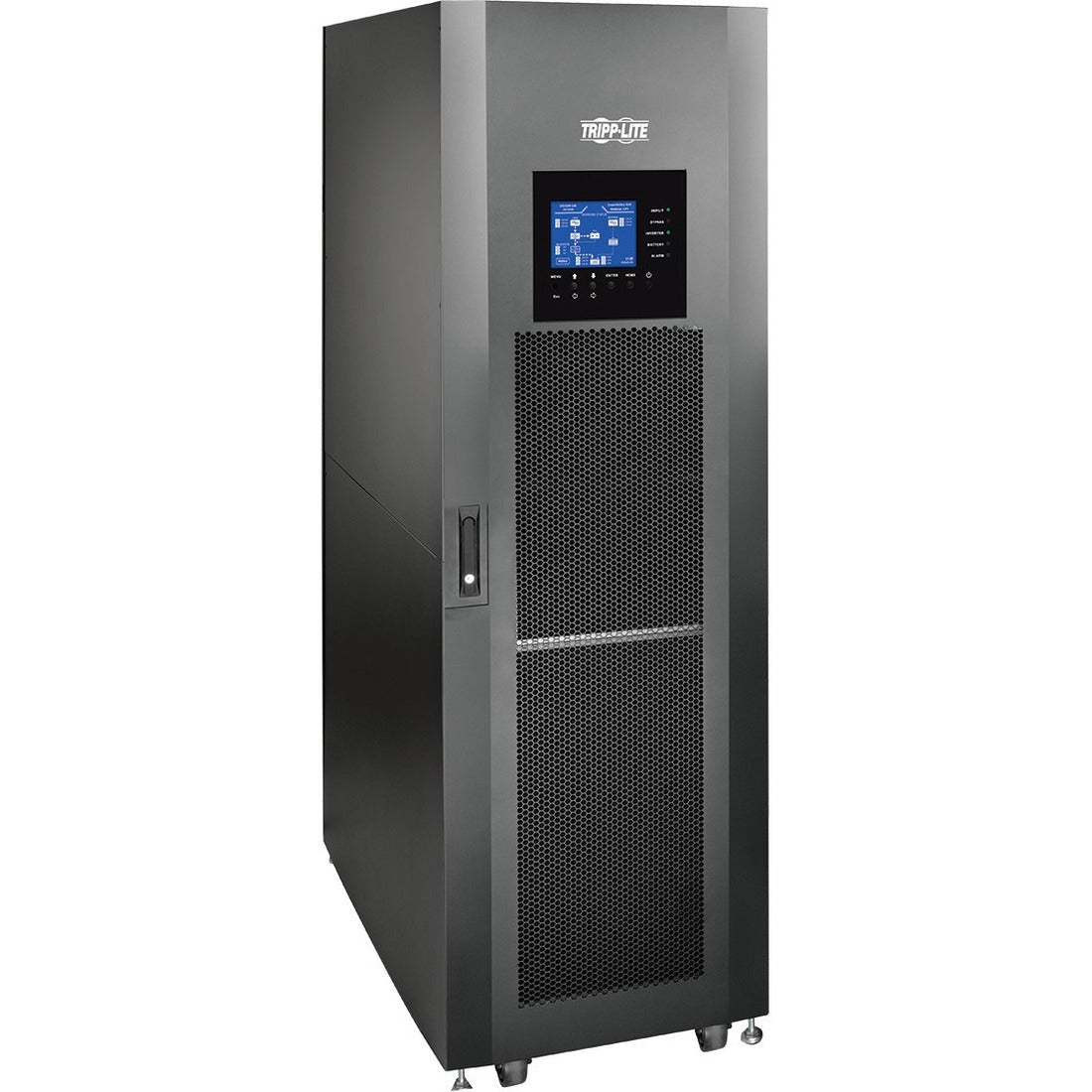

Tripp Lite by Eaton SmartOnline SVX SVX210KL7P 210kVA Tower UPS
| UPC | 037332192578 |
| Tower - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SVX210KL7P |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Series: | SVX |
| Product Model: | SVX210KL7P |
| Product Name: | SmartOnline SVX SVX210KL7P 210kVA Tower UPS |
| Marketing Information: | Tripp Lite's SVX210KL7P 210kVA / 210kW SmartOnline large-chassis UPS includes installed Input, Bypass and Output breakers, a Static Transfer Switch (STS) and 7 included 30kVA SVX30PM power modules. The system includes space for 1 additional user installable SVX30PM power module for N+1 fault-tolerance. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Phase: | Three Phase | Power Description |
| Load Capacity (VA): | 210 kVA |
| Input Voltage Range: | 220 V AC - 415 V AC |
| Output Voltage: |
|
| Waveform Type: | Pure Sine Wave | Management |
| Network Management: | SNMP Manageable | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 79.13" (2009.90 mm) |
| Width: | 23.62" (599.90 mm) |
| Depth: | 43.30" (1099.80 mm) |
| Weight (Approximate): | 514.37 kg | Miscellaneous |
| Country of Origin: | China |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Approximate - based on a single manufacturer anchor point. Estimates are roughest near very light or very heavy loads.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
