About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SVX60KS2P3B
- Form Factor: Tower
- Waveform Type: Pure Sine Wave
- Product Family: SmartOnline SVX
- Backup/Run Time (Half Load): 7.50 Minute
- Backup/Run Time (Full Load): 3.50 Minute
- Load Capacity: 60 kVA

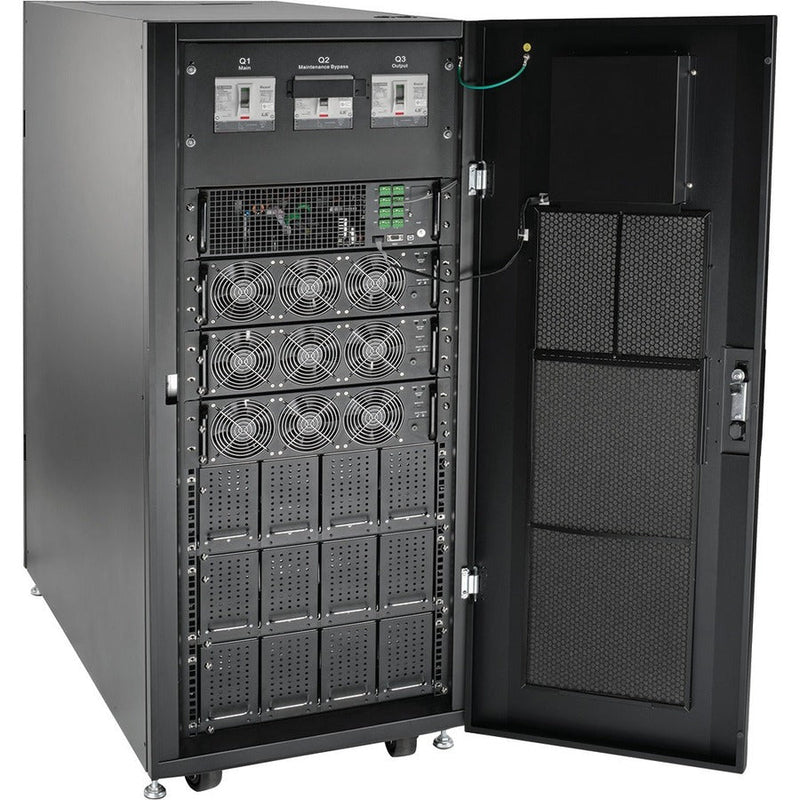

Marketing Information: Tripp Lite's SVX60KS2P3B 60kVA/60kW SmartOnline ® Small-Frame UPS includes installed input, bypass and output breakers, a static transfer switch (STS) and 2 included 30kVA SVX30PM power modules. This system supports the addition of 1 additional user-installable SVX30PM power module to accommodate increased capacity to 90kW (or 60kW with N+1). Three internal battery modules are included to fully load internal battery compartments. Additional runtime is available using any number of compatible ±240VDC external battery packs (sold separately).
Featuring a modular, scalable design with high-efficiency voltage and frequency independent/VFI operation, Tripp Lite's SVX Series SmartOnline UPS systems are ideal for the protection of a wide variety of critical IT systems. Scalable, modular configuration enables UPS capacity upgrades and hot-swap power supply maintenance without costly downtime. Over 95% efficient in standard online mode and over 99% efficient in optional economy mode enables reduced operating and cooling costs. Unity power factor configuration provides equal kVA and kW output ratings for up to 25% more wattage capacity than common 0.8 - 0.9 power factor competing designs. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1.5% output total harmonic distortion. Advanced IGBT inverter with Digital Signal Processor (DSP) technology provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing. Dual-input hardwire design enables operation from one or two input power sources for enhanced system availability. N+1 fault-tolerance is configurable anytime there is an "extra" SVX30PM 30kW power module installed beyond the minimum required quantity. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| EMI/RFI Noise Filter | Yes |
| Phase | Three Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS; High efficiency economy mode operation; Schedulable daily hours of economy mode operation |
| Application/Usage |
|
| Load Capacity (VA) | 60 kVA |
| Output Voltage |
|
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Network Management | SNMP Manageable |
| Alarm |
|
| Status Indicators |
|
| Serial Port | Yes |
| EPO Port | Yes |
| DC System Voltage | 240 V DC |
| Battery Characteristics | Hot-swappable |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 7.50 Minute |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 5 °F (-15 °C) - 140 °F (60 °C) |
| Maximum Operating Elevation | 3280.84 ft (1000000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 73 dB(A) |
| Thermal Dissipation | 11458 BTU/h |
| Form Factor | Tower |
| Height | 58.07" (1475 mm) |
| Width | 23.62" (600 mm) |
| Depth | 43.31" (1100 mm) |
| Weight (Approximate) | 1411.99 lb (640470 g) |
| Country of Origin | China |
Technical specifications
Power
VA Rating
60000VA
Wattage
60000W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
240V
Output
Output Voltage
380V
Features
Form Factor
Tower
Connectivity
["RS-232 Serial""SNMP (via Network Management Card)""HTTP/Web Management"]
Extended Runtime Capable
true
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
1475 × 600 × 1100 mm (58.07 × 23.62 × 43.31 in)
Weight
640.47kg
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (30000 W)
7.0 min
Full load (60000 W)
3.5 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
