About this UPS

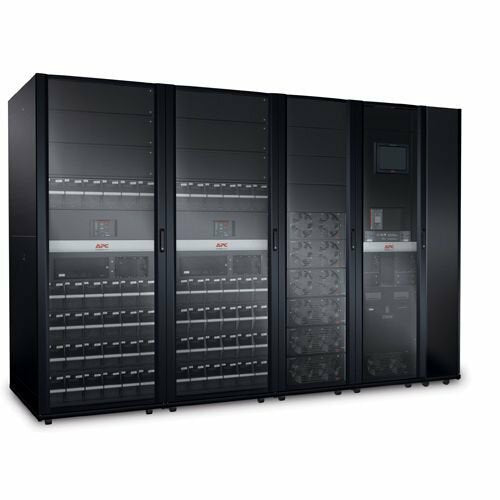

APC by Schneider Electric Symmetra PX 150kW Scalable to 250kW Tower UPS
| UPC | N/A |
| Tower - 8 Hour Recharge - 220 V AC Input - 480 V AC Output - 1 x Hard Wire 4-wire, 1 x Hard Wire 5-wire | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SY150K250DRPD |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Symmetra |
| Product Series: | PX |
| Product Name: | Symmetra PX 150kW Scalable to 250kW Tower UPS |
| Marketing Information: | Scalable, high-efficiency 3-phase UPS with integrated maintenance bypass & sub-feed distribution. This system scales as your data center grows up to 250kW/250kVA. To support additional growth, this UPS can be easily expanded to scale to 500kW and supports up to four systems in parallel. Suitable for medium & large data center applications. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: |
|
| Receptacle Type: |
|
| Receptacle Detail: |
|
Power Description |
| Load Capacity (VA): | 500 kVA |
| Input Voltage: | 220 V AC |
| Output Voltage: | 480 V AC |
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz | Management |
| Network Management: | SNMP Manageable |
| Bypass Switch: |
|
Interfaces/Ports |
| Modular Slots: |
|
Battery Information |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Half Load): | 1.60 Minute |
| Typical Battery Recharge Time: | 8 Hour | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 78.39" (1991.11 mm) |
| Width: | 10.17 ft (3100.07 mm) |
| Depth: | 42" (1066.80 mm) |
| Weight (Approximate): | 7812 lb (3543463.59 g) | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Energy Star: | Yes |
| Environmentally Friendly: | Yes | Warranty |
| Limited Warranty: | 1 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
