APC
APC Symmetra PX 20kW Scalable UPS - 20000VA/20000W - 3.8 Minute Full Load - 1, 1 x Screw Terminal
APC Symmetra PX 20kW Scalable UPS - 20000VA/20000W - 3.8 Minute Full Load - 1, 1 x Screw Terminal
Items above $10000 are handled by quote so we can confirm availability, freight, and final pricing.
Written reply within 1 business day — no obligation.
Supports extended runtime — add battery packs in your quote
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS

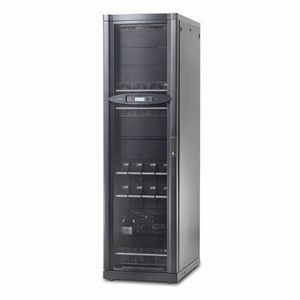

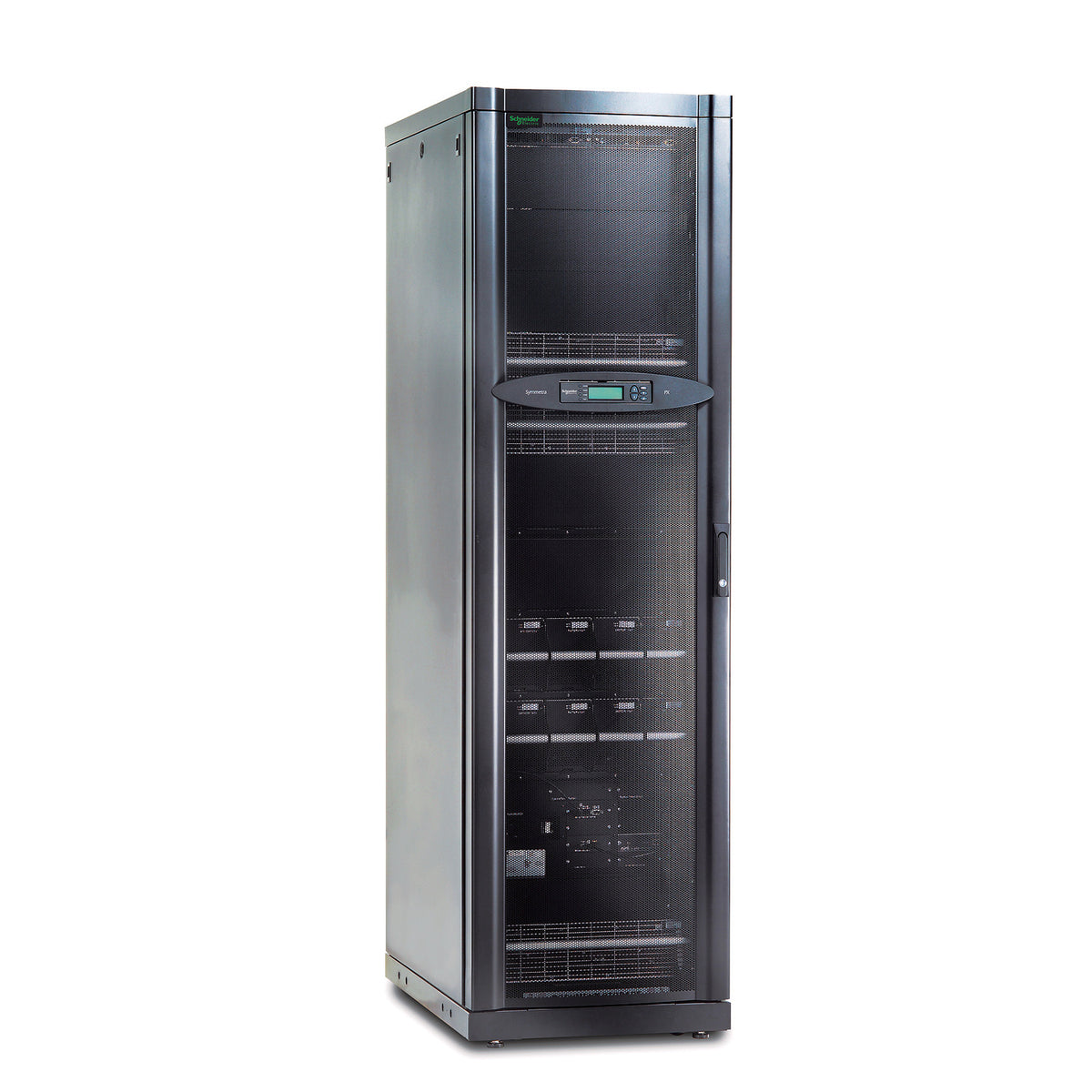

APC Symmetra PX 20kW Scalable UPS
| UPC | 000003646403 |
| 20000VA/20000W - 3.8 Minute Full Load - 1, 1 x Screw Terminal | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SY20K40F |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Symmetra |
| Product Series: | PX |
| Product Name: | Symmetra PX 20kW Scalable UPS |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hard Wire 5-wire |
| Receptacle Type: | Screw Terminal |
| Receptacle Detail: | 1 x Screw Terminal |
| Bypass Switch: | Static |
| Emergency Power OFF: | Yes | Power Description |
| Load Capacity (VA): | 20 kVA |
| Load Capacity (Watt): | 20 kW |
| Input Voltage: | 220 V AC |
| Output Voltage: | 208 V AC |
| Waveform Type: | Sine Wave | Management |
| Network Management: | SNMP Manageable |
| Alarm: |
|
| Battery Management: | Intelligent Battery Management | Interfaces/Ports |
| Network (RJ-45): | Yes |
| Total Number of Expansion Slots: | 2 | Battery Information |
| Battery Characteristics: | Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 3.80 Minute |
| Backup/Run Time (Half Load): | 14.40 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Sound Emission (A-Weighted): | 64 dB(A) |
| Thermal Dissipation: | 11611 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 82" (2082.80 mm) |
| Width: | 24" (609.60 mm) |
| Depth: | 35.50" (901.70 mm) |
| Rack Height: | 42U |
| Weight (Approximate): | 528.44 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Country of Origin: | United States | Warranty |
| Limited Warranty: | 1 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
