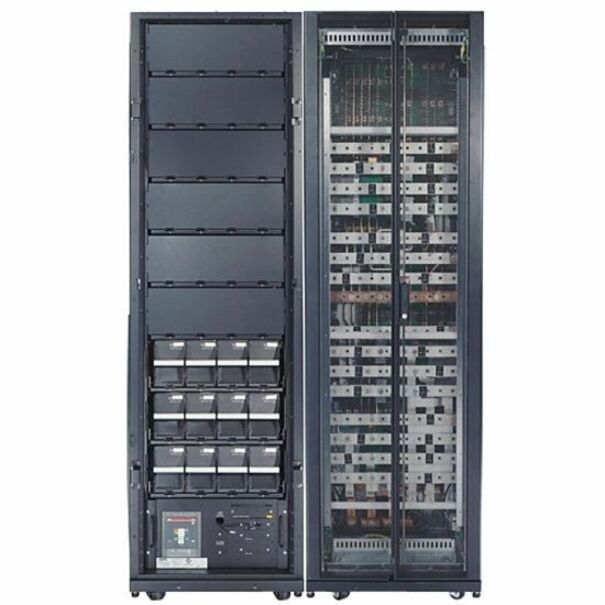

About this UPS
- Brand: APC by Schneider Electric
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SY32K96H
- Form Factor: Tower
- Rack Height: 42U
- Product Family: Symmetra PX
- Backup/Run Time (Half Load): 17 Minute
- Backup/Run Time (Full Load): 6 Minute
- Load Capacity: 32 kVA
Marketing Information:
The APC Symmetra PX is a redundant, scalable power protection system designed to cost effectively provide high levels of availability. Integrating into today's data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Load Capacity (VA) | 32 kVA |
| Output Voltage |
|
| Input Current | 66 A |
| Output Current | 80 A |
| Network Management | SNMP Manageable |
| Bypass Switch |
|
| Emergency Power OFF | Yes |
| Modular Slots |
|
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 17 Minute |
| Typical Battery Recharge Time | 3.50 Hour |
| Form Factor | Tower |
| Rack Height | 42U |
| Height | 78.39" (1991 mm) |
| Width | 47.24" (1200 mm) |
| Depth | 42.13" (1070 mm) |
| Weight (Approximate) | 1029 kg |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
