APC
APC by Schneider Electric Symmetra PX SY40K100F 40kVA Tower UPS - Tower - 2 Hour Recharge - 6 Minute Stand-by - 220 V AC Input - 208 V AC Output - 1 x Hard Wire 5-wire
APC by Schneider Electric Symmetra PX SY40K100F 40kVA Tower UPS - Tower - 2 Hour Recharge - 6 Minute Stand-by - 220 V AC Input - 208 V AC Output - 1 x Hard Wire 5-wire
Items above $10000 are handled by quote so we can confirm availability, freight, and final pricing.
Written reply within 1 business day — no obligation.
Supports extended runtime — add battery packs in your quote
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS

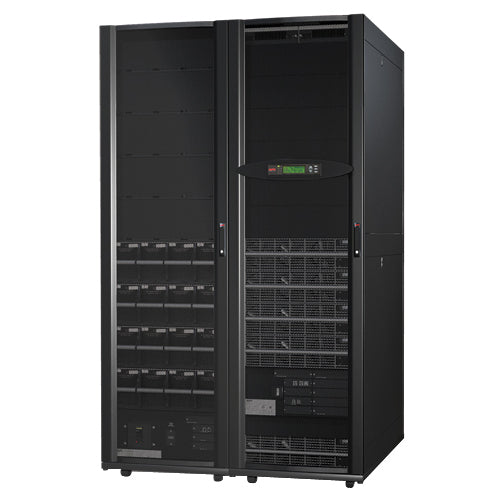

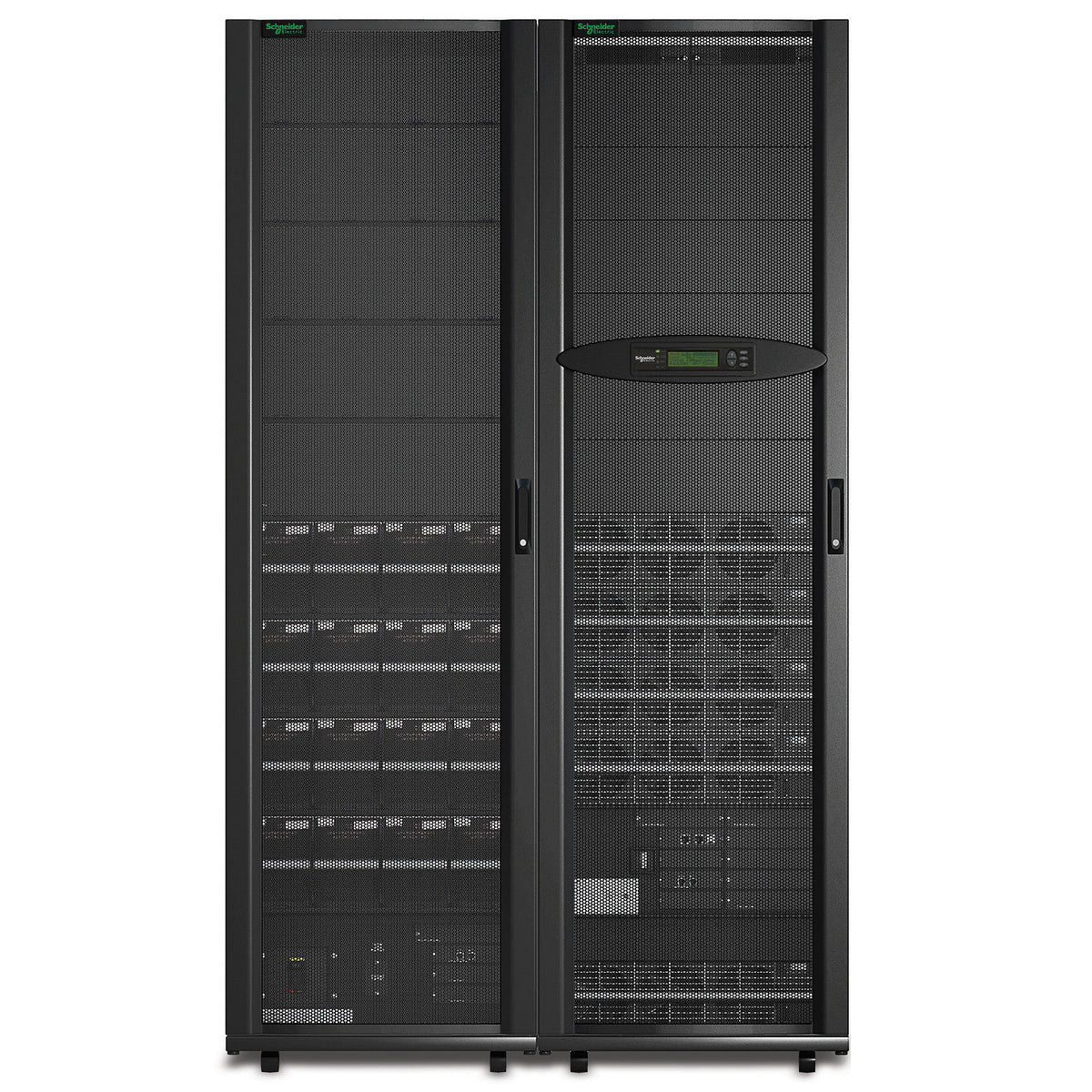

APC by Schneider Electric Symmetra PX SY40K100F 40kVA Tower UPS
| UPC | 0731304282617 |
| Tower - 2 Hour Recharge - 6 Minute Stand-by - 220 V AC Input - 208 V AC Output - 1 x Hard Wire 5-wire | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SY40K100F |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Symmetra |
| Product Series: | PX |
| Product Model: | SY40K100F |
| Product Name: | Symmetra PX SY40K100F 40kVA Tower UPS |
| Marketing Information: | The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Receptacle Type: | Hard Wire 5-wire |
| Receptacle Detail: | 1 x Hard Wire 5-wire | Power Description |
| Load Capacity (VA): | 40 kVA |
| Input Voltage: | 220 V AC |
| Output Voltage: | 208 V AC |
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz |
| Input Current: | 332 A | Management |
| Network Management: | SNMP Manageable |
| Bypass Switch: |
|
Interfaces/Ports |
| Modular Slots: |
|
Battery Information |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 6 Minute |
| Typical Battery Recharge Time: | 2 Hour | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 79.17" (2011 mm) |
| Width: | 47.24" (1200 mm) |
| Depth: | 42.13" (1070 mm) |
| Weight (Approximate): | 1158.55 kg | Miscellaneous |
| Package Contents: |
|
Warranty |
| Limited Warranty: | 1 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
