APC Symmetra LX 16kVA Scalable to 16kVA Tower UPS - SYA16K16IXR
APC Symmetra LX 16kVA Scalable to 16kVA Tower UPS - SYA16K16IXR
Items above $10000 are handled by quote so we can confirm availability, freight, and final pricing.
Written reply within 1 business day — no obligation.
Supports extended runtime — add battery packs in your quote
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS

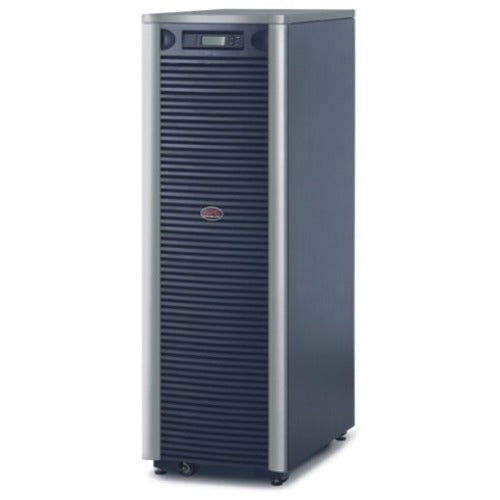

APC Symmetra LX 16kVA Scalable to 16kVA Tower UPS
| UPC | N/A |
| 24.7 Minute Full Load - 16kVA - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SYA16K16IXR |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Symmetra |
| Product Series: | LX |
| Product Name: | Symmetra LX 16kVA Scalable to 16kVA Tower UPS |
| Marketing Information: | Symmetra LX 16kVA Dual Conversion Online UPS is high performance, redundant power protection with scalable power and runtime for space-constrained computer rooms and voice and data networks. Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: |
|
| Receptacle Type: | Hard Wire 3-wire |
| Receptacle Detail: | 1 x Hard Wire 3-wire |
| Number of Battery & Surge Outlets: | 1 |
| Overload Protection: | Yes | Power Description |
| Load Capacity (VA): | 16 kVA |
| Input Voltage: | 220 V AC |
| Output Voltage: |
|
| Input Frequency: | 65 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave | Management |
| Network Management: | SNMP Manageable |
| Alarm: | Self-test Operation |
| Bypass Switch: | Automatic & Manual |
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Modular Slots: | 1 x SmartSlot | Battery Information |
| Battery Characteristics: | Spill-proof/Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 24.70 Minute |
| Backup/Run Time (Half Load): | 55.40 Minute | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Thermal Dissipation: | 3707 BTU/h | Physical Characteristics |
| Color Family: | Dual Color |
| Product Color: |
|
| Form Factor: | Tower |
| Height: | 60" (1524 mm) |
| Width: | 19" (482.60 mm) |
| Depth: | 29" (736.60 mm) |
| Weight (Approximate): | 502.58 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Environmentally Friendly: | Yes | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
