| UPC | 731304733041 |
| 6 Minute - 16kVA - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SYA16K16RMP |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Symmetra |
| Product Series: | LX |
| Product Name: | Symmetra LX 16kVA Rack-Mountable UPS |
| Marketing Information: | High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hard Wire 4-wire |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 13 |
| Overload Protection: | Yes | Power Description |
| Load Capacity (VA): | 16 kVA |
| Input Voltage: | 208 V AC |
| Output Voltage: |
|
| Input Current: | 75 A |
| Waveform Type: | Sine Wave | Management |
| Network Management: | SNMP Manageable |
| Bypass Switch: |
|
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Serial Port: | Yes |
| Modular Slots: | 1 x SmartSlot | Battery Information |
| Battery Characteristics: | Spill-proof/Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Typical Battery Recharge Time: | 3 Hour | Physical Characteristics |
| Color Family: | Dual Color |
| Product Color: |
|
| Form Factor: | Rack-mountable |
| Rack Height: | 19U |
| Mounting Location: | Front |
| Mounting Preference: | Lower |
| Height: | 32.91" (836 mm) |
| Width: | 18.58" (472 mm) |
| Depth: | 27.09" (688 mm) |
| Weight (Approximate): | 286.82 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | CSA |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA16K16RMP_ROHS_DECLARATION&p_FileName=SYA16K16RMPKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036067&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036067&lang=en-us |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
| Additional Warranty Information: | 2 years repair or replace |
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →

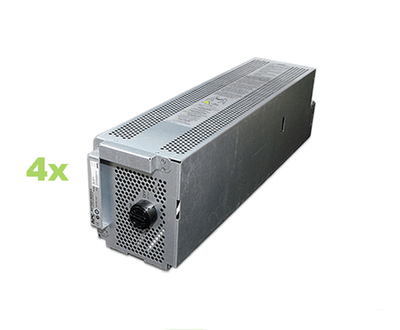

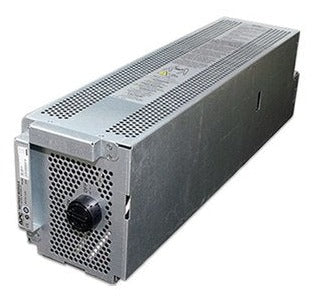

A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
