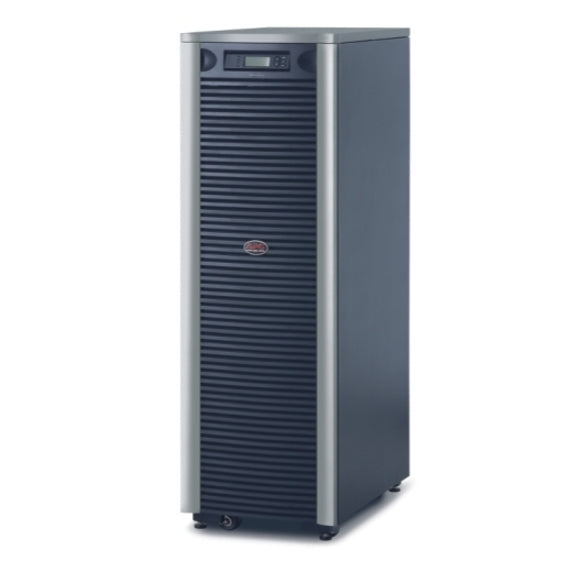

About this UPS
- Brand: APC by Schneider Electric
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SYA8K16IXR
- Form Factor: Tower
- Product Family: Symmetra LX
- Load Capacity: 8 kVA
Marketing Information:
Industries most space-optimized modular UPS solutions
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and runtime as demand increases or when higher levels of availability are required. With built-in network manageability and tower model available from 8-16 kVA N+1 redundant, the online Symmetra LX is the choice to protect high-performance IT and Telecom equipment in business-critical server and network rooms.A flexible rack/stack design offers unmatched runtime and power capacity in space constrained environments. Symmetra LX allows incredibly fast upgrades and maintenance with virtually all of its parts contained in field-swappable components. These include hot-swappable, user-replaceable power, battery, and intelligence modules, management cards, LCD display, fans, and external battery frames. Additionally the wiring tray, frame electronics, receptacles, and casters can be swapped in minutes if necessary. Symmetra LX achieves industry-leading footprint or U-space needed in an equipment rack, increased speed and ease of deployment, and reduced repair time.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Number of Battery & Surge Outlets | 1 |
| Overload Protection | Yes |
| Load Capacity (VA) | 8 kVA |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Network Management | SNMP Manageable |
| Bypass Switch | Automatic & Manual |
| Emergency Power OFF | Yes |
| Modular Slots | 1 x SmartSlot |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 7.50 Hour |
| Color Family | Dual Color |
| Product Color |
|
| Form Factor | Tower |
| Height | 59.69" (1516 mm) |
| Width | 19.02" (483 mm) |
| Depth | 28.58" (726 mm) |
| Weight (Approximate) | 1044.20 lb (473641.15 g) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Limited Warranty | 2 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Compare with alternatives
The SYA8K16IXR side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P91-6KB 6000 VA / 6000 W Online UPS, 208/230 V
Compared with SYA8K16IXR Spec SYA8K16IXR Xtreme Power Capacity 8000 VA / 5600 W 6000 VA / 6000 W Topology Online Double-Conversion Online Double-Conversion Form Tower Tower/Rack Convertible, 4U Input plug Hardwired Hardwired Outlets 1 × Hardwire terminal block 1 × Hardwire terminal block Runtime, half load 123 min 15 min Differences
- Single UPS; this model is a modular, scalable system
- Two pieces: UPS module plus 2U battery pack
- Lower VA rating: 6000 VA instead of 8000 VA
Price confirmed by quote Request a quote
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
