| UPC | 0731304221784 |
| 49.3 Minute Full Load - 8kVA - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SYA8K16PXR |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Symmetra |
| Product Series: | LX |

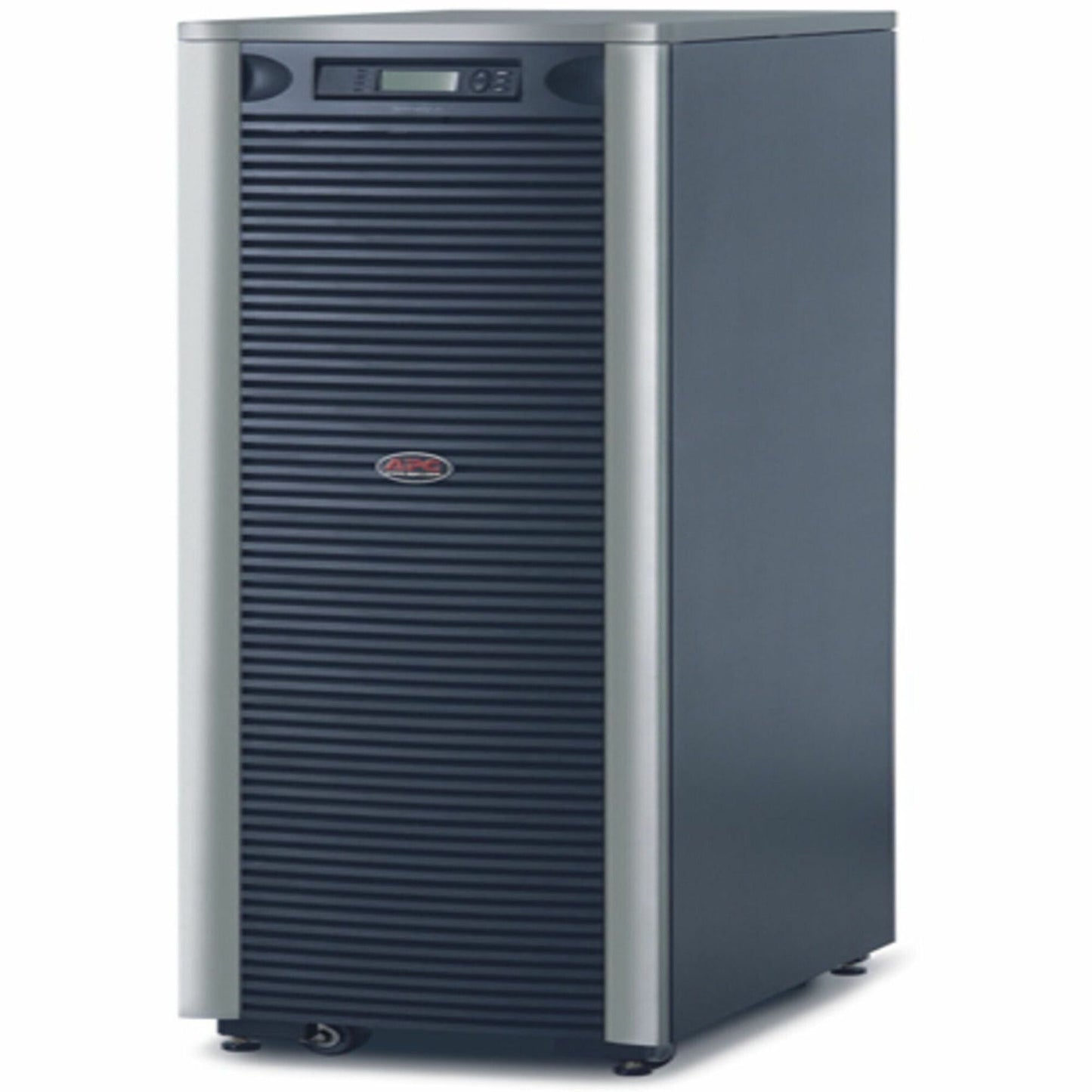

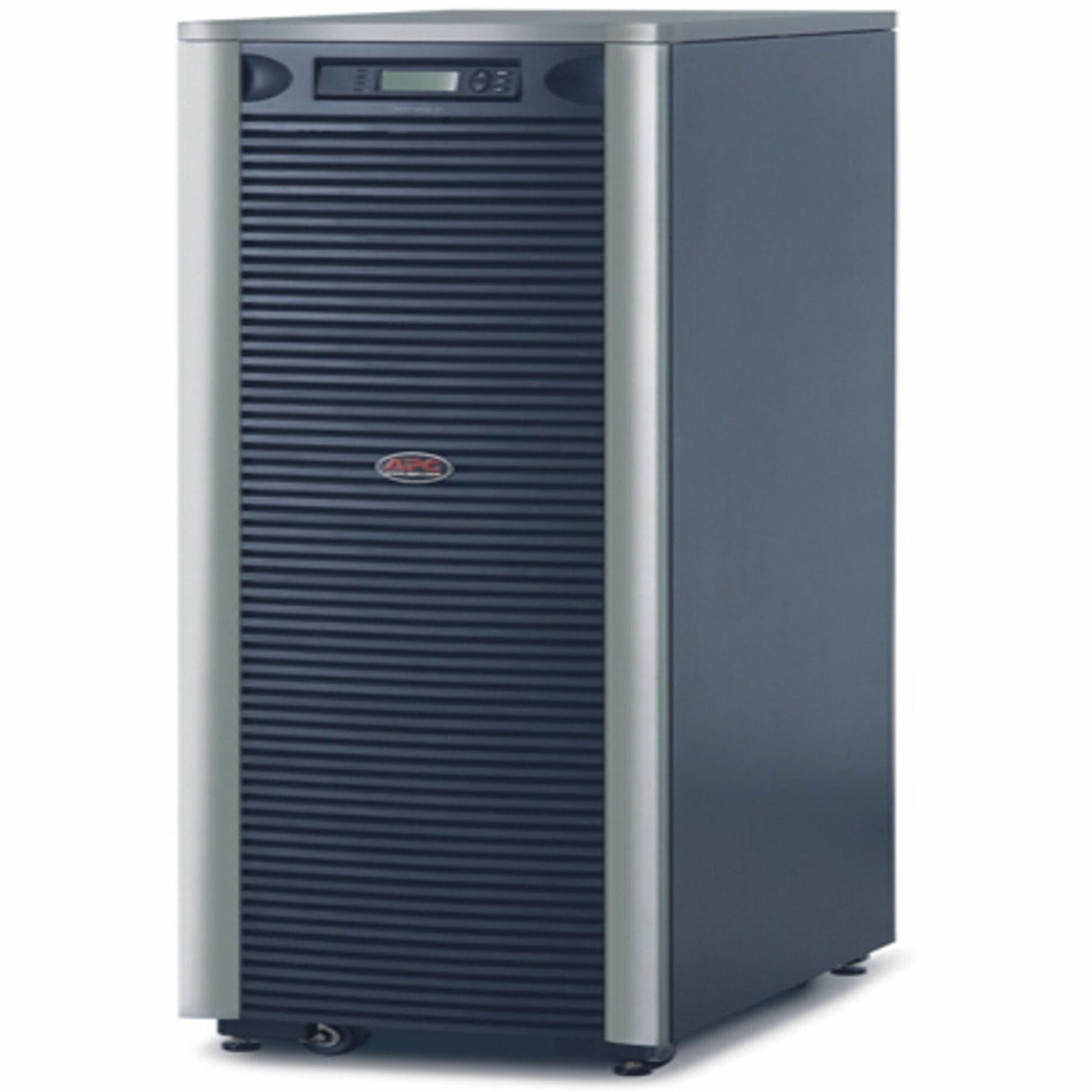

| Product Name: | Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower UPS |
| Marketing Information: | High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hard Wire 4-wire |
| Receptacle Type: | Hard Wire 4-wire |
| Receptacle Detail: | 1 x Hard Wire 4-wire |
| Number of Battery & Surge Outlets: | 1 |
| Overload Protection: | Yes | Power Description |
| Load Capacity (VA): | 8 kVA |
| Input Voltage: | 208 V AC |
| Output Voltage: |
|
| Input Frequency: | 65 Hz |
| Output Frequency: | 60 Hz |
| Input Current: | 37 A |
| Waveform Type: | Sine Wave | Management |
| Network Management: | SNMP Manageable |
| Bypass Switch: |
|
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Modular Slots: | 1 x SmartSlot | Battery Information |
| Battery Characteristics: | Spill-proof/Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 49.30 Minute |
| Backup/Run Time (Half Load): | 1.77 Hour |
| Typical Battery Recharge Time: | 7.50 Hour | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Thermal Dissipation: | 4995 BTU/h | Physical Characteristics |
| Color Family: | Dual Color |
| Product Color: |
|
| Form Factor: | Tower |
| Mounting Location: | Front |
| Height: | 59.69" (1516 mm) |
| Width: | 19.02" (483 mm) |
| Depth: | 28.58" (726 mm) |
| Weight (Approximate): | 473.64 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: | CSA |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA8K16PXR_ROHS_DECLARATION&p_FileName=SYA8K16PXRKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=766170&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=766170&lang=en-us |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Country of Origin: | United States |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
| Additional Warranty Information: | 2 years repair or replace |
