| UPC | 9999999999999 |
| 12.7 Minute Full Load - 4kVA - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SYH4K6RMT |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Symmetra |

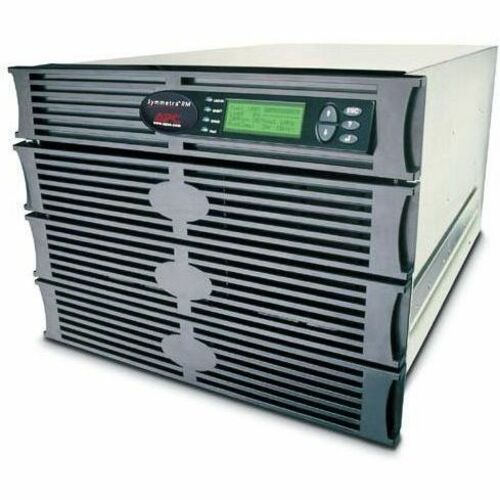

| Product Name: | Symmetra 4kVA Scalable to 6kVA Rack-mountable UPS |
| Marketing Information: | Highly available single phase UPS features redundant and scalable double-conversion on-line power protection |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: |
|
| Receptacle Type: | NEMA L6-30P 30A |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 3 |
| Cord Length: | 10 ft (3048 mm) | Power Description |
| Load Capacity (VA): | 4 kVA |
| Input Voltage: | 208 V AC |
| Output Voltage: | 208 V AC |
| Input Frequency: | 63 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave | Management |
| Network Management: | SNMP Manageable |
| Bypass Switch: | Internal |
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| Modular Slots: |
|
Battery Information |
| Battery Characteristics: | Spill-proof/Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 12.70 Minute |
| Backup/Run Time (Half Load): | 30.20 Minute |
| Typical Battery Recharge Time: | 4 Hour | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Form Factor: | Rack-mountable |
| Rack Height: | 8U |
| Mounting Location: | Front |
| Mounting Preference: | Lower |
| Height: | 14.02" (356 mm) |
| Width: | 19.02" (483 mm) |
| Depth: | 28.74" (730 mm) |
| Weight (Approximate): | 104.09 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | CSA |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH4K6RMT_ROHS_DECLARATION&p_FileName=SYH4K6RMTKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036261&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036261&lang=en-us |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
| Additional Warranty Information: | 2 years repair or replace, optional on-site warranties available, optional extended warranties available |
Call us if more information required.
