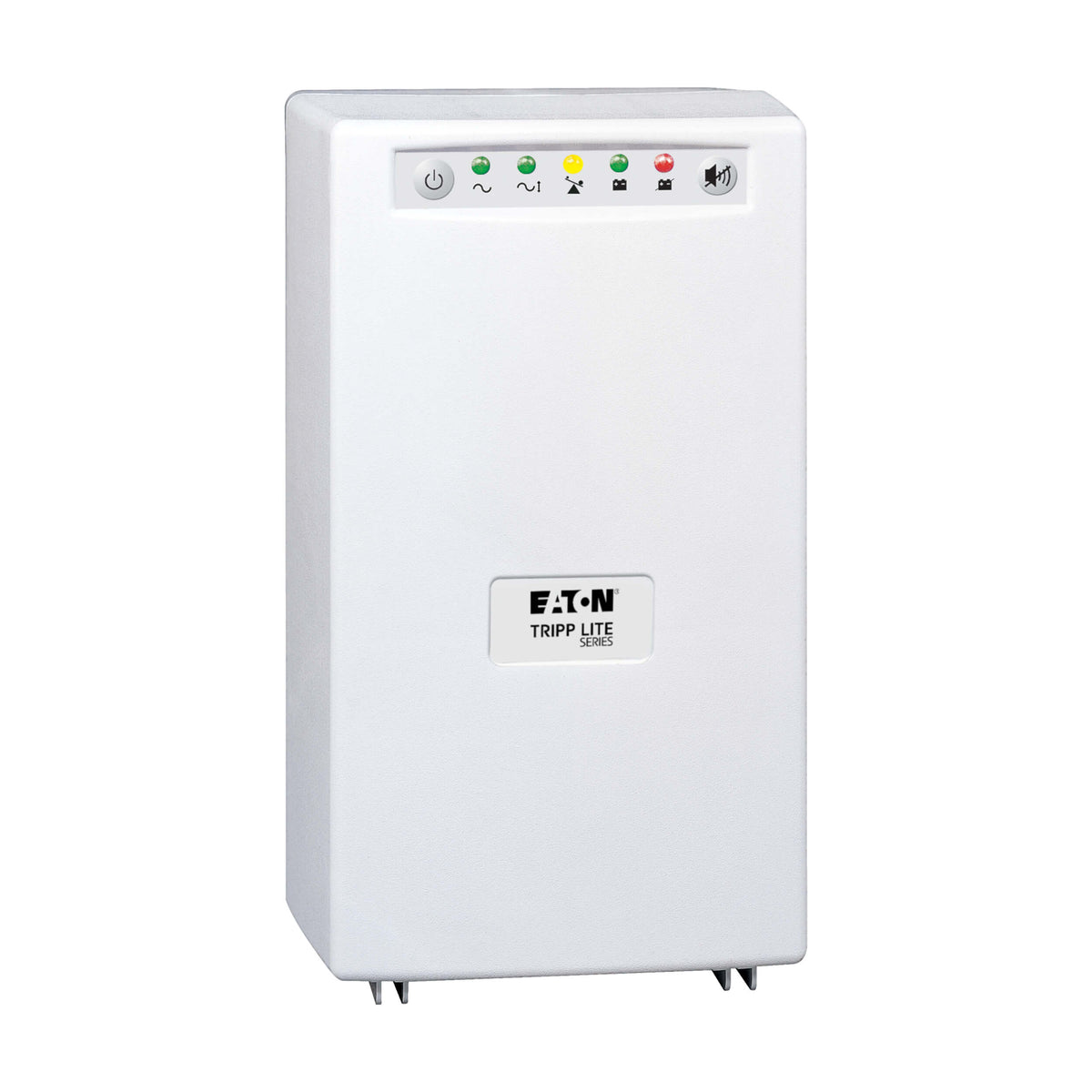

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART700HG
- Input Voltage: 120 V AC
- Form Factor: Tower
- Plug/Connector Type: NEMA 5-15P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 42 Minute
- Backup/Run Time (Full Load): 18 Minute
- Load Capacity: 700 VA/450 W
Marketing Information:
Tripp Lite's SMART700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load, or 18 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. The SMART700HG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6 ft. cord for flexibility in placement. All four outlets provide both backup protection and surge protection, rated to 480 joules. The SMART700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's free downloadable PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.
Application Usage
This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART700HG in this type of application will void the battery warranty. For mobile applications, Tripp Lite recommends the SMART700HGL with lithium iron phosphate (LiFePo4) battery.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 700 VA |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Network Management | SNMP Manageable |
| Alarm |
|
| Status Indicators | 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning |
| USB | Yes |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 18 Minute |
| Backup/Run Time (Half Load) | 42 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Height | 12.50" (317.50 mm) |
| Width | 7" (177.80 mm) |
| Depth | 9" (228.60 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 44 lb (19958.06 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | UL1778 (USA, Series AGSM700PSR3HG), UL2601-1 (Medical), cUL (Canada), FCC Class A (emissions), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Compare with alternatives
The SMART700HG side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power S71-1000 1000 VA / 600 W Line-Interactive UPS, 120 V
Compared with SMART700HG Spec SMART700HG Xtreme Power Capacity 700 VA / 450 W 1000 VA / 600 W Topology Line-Interactive Line-Interactive Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R 6 × NEMA 5-15R Runtime, half load 42 min 2 min Differences
- Larger unit: 600 W instead of 450 W
$362.40
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
