About this UPS

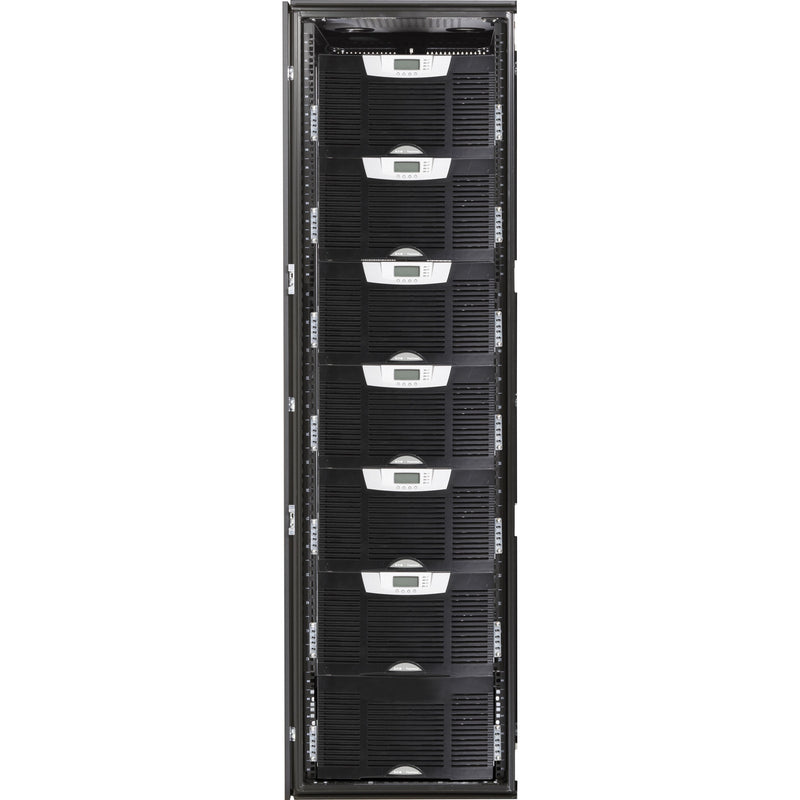

Eaton Preassembled BladeUPS - Bottom Entry 48 kW, 208V
| UPC | 743172078735 |
| Tower - 5 Minute Stand-by - 220 V AC Input - 228 V AC, 208 V AC, 120 V AC Output - Serial Port | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | ZP23410000XX000 |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Line: | BladeUPS |
| Product Name: | Preassembled BladeUPS - Bottom Entry 48 kW, 208V |
| Marketing Information: | The Eaton BladeUPS is a revolutionary power quality solution that is scalable and modular. BladeUPS expands power protection from 12 to 60 kW in a single 19-inch rack while reducing energy and cooling costs. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: | Hard Wire 4-wire | Power Description |
| Input Voltage: | 220 V AC |
| Output Voltage: |
|
| Output Frequency: | 50 Hz | Management |
| Bypass Switch: | Automatic |
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Serial Port: | Yes |
| Modular Slots: |
|
Battery Information |
| Number of Batteries: | 160 |
| Battery Characteristics: | Maintenance-free/Sealed |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 13 Minute | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 81" (2057.40 mm) |
| Width: | 24" (609.60 mm) |
| Depth: | 42" (1066.80 mm) |
| Weight (Approximate): | 739 kg | Miscellaneous |
| Package Contents: |
|
| Software Included: | Eaton Intelligent Power Software |
| Country of Origin: | United States |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 1 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
