About this UPS

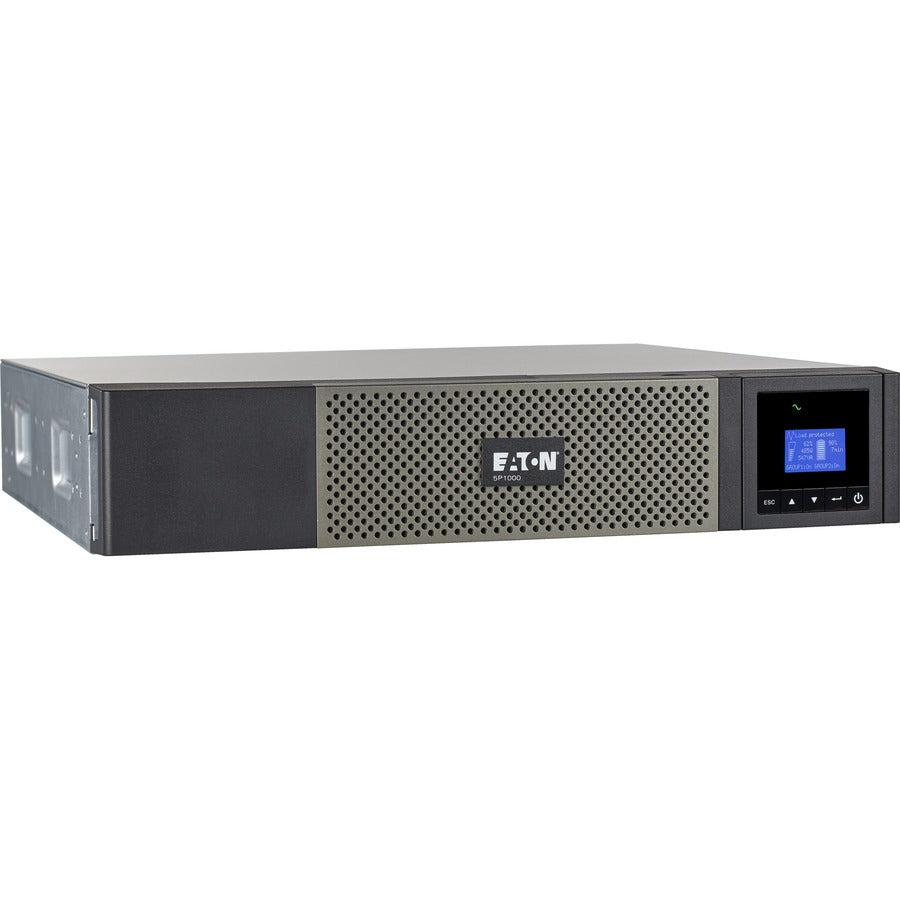

The Eaton 5P1000RC is a 1000VA / 770W rackmount (2u) line-interactive UPS. Designed for business-critical power protection, it delivers clean, regulated output to protect servers, network equipment, workstations, and other sensitive electronics from power disturbances, backed by Eaton's industry-leading warranty and service network.
Specifications
| Output Capacity (VA) | 1000 VA |
| Output Power (Watts) | 770 W |
| Topology | Line-Interactive |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 120 VAC |
| Input Plug | NEMA 5-15P |
| Outlets | 10 × NEMA 5-15R |
| Form Factor | Rackmount (2U) |
| Communications | SNMP/Network |
| Warranty | 3 Years Limited |
| Weight | 15 kg (33.1 lb) |
| UPC | 743172088277 |
| Manufacturer Part Number | 5P1000RC |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Compare with alternatives
The 5P1000RC side by side with UPS from other makers.
-
Compared with 5P1000RC Spec 5P1000RC Delta Capacity 1000 VA / 770 W 1000 VA / 900 W Topology Line-Interactive Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 10 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 12 min 10 min Differences
- 8 battery-backed outlets instead of 10
- Online double-conversion, a step up from line-interactive
- Larger unit: 900 W instead of 770 W
$1,777.99 -
Xtreme Power Conversion
Xtreme Power P80-1100 1100 VA / 990 W Line-Interactive UPS, 120 V
Compared with 5P1000RC Spec 5P1000RC Xtreme Power Capacity 1000 VA / 770 W 1100 VA / 990 W Topology Line-Interactive Line-Interactive Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 10 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 12 min 11 min Differences
- 8 battery-backed outlets instead of 10
- Larger unit: 990 W instead of 770 W
$1,096.42 -
Xtreme Power Conversion
Xtreme Power P91-1000 1000 VA / 1000 W Online UPS, 120 V
Compared with 5P1000RC Spec 5P1000RC Xtreme Power Capacity 1000 VA / 770 W 1000 VA / 1000 W Topology Line-Interactive Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 10 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 12 min 10 min Differences
- 8 battery-backed outlets instead of 10
- Online double-conversion, a step up from line-interactive
- Larger unit: 1000 W instead of 770 W
$1,346.27
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.

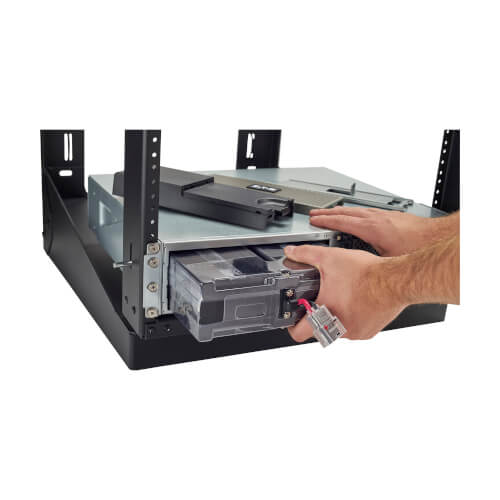

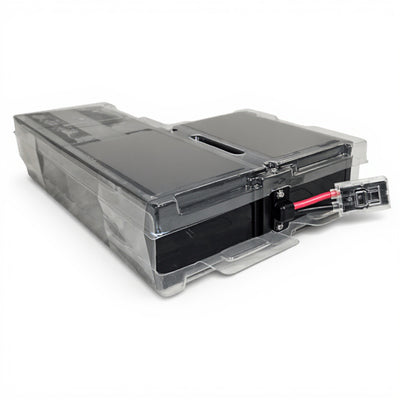

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
