In stockEaton
· 5PX1500HRTG2

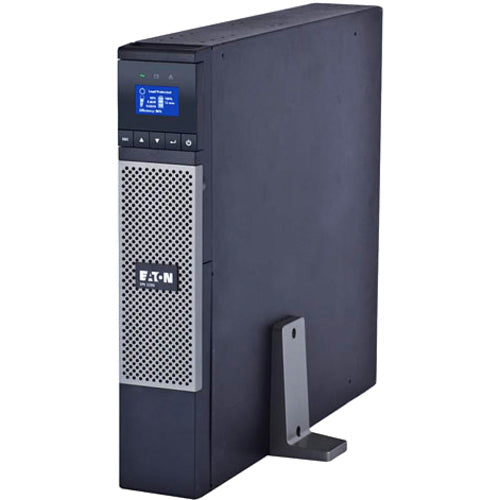

Eaton 5PX G2 5PX1500HRTG2 1500 VA / 1500 W 2U Rack/Tower Line-Interactive UPS
- Power
- 1500 VA / 1500 W
- Form
- Tower/Rack Convertible
- Outlets
- 8× IEC 60320 C13
$2,026.99
About this UPS
The Eaton 5PX1500IRT is a 1500VA / 1350W rackmount (2u) line-interactive UPS. Designed for business-critical power protection, it delivers clean, regulated output to protect servers, network equipment, workstations, and other sensitive electronics from power disturbances, backed by Eaton's industry-leading warranty and service network.
Specifications
| Output Capacity (VA) | 1500 VA |
| Output Power (Watts) | 1350 W |
| Topology | Line-Interactive |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 230 VAC |
| Form Factor | Rackmount (2U) |
| Communications | USB, Serial |
| Warranty | 3 Years Limited |
| Weight | 27.7 kg (61 lb) |
| UPC | 743172035875 |
| Manufacturer Part Number | 5PX1500IRT |
Technical specifications
Power
VA Rating
1500VA
Wattage
1350W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
240V
Input Plug
IEC C14
Input Phase
Single-phase
Output
Output Voltage
230 VAC
Receptacles
8× IEC 60320 C13
Features
Form Factor
Tower/Rack Convertible
Rack Units
2U
Connectivity
USBRS-232 Serial
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
86 × 442 × 523 mm (3.40 × 17.40 × 20.60 in)
Weight
27.67kg
Certifications
IEC/EN 62040-1UL 1778IEC/EN 62040-2CEEACcTUVus
Manufacturer Warranty
3 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (675 W)
10 min
Full load (1350 W)
3 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Available now
The manufacturer no longer makes the 5PX1500IRT. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power P91g-1500 1500 VA / 1500 W Online UPS, 230 V
Compared with 5PX1500IRT Spec 5PX1500IRT Xtreme Power Capacity 1500 VA / 1350 W 1500 VA / 1500 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug IEC C14 NEMA L6-20P Outlets 8 × IEC 60320 C13 8 × IEC 60320 C13 Runtime, half load 10 min 10 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C14 inlet cord
- Online double-conversion, a step up from line-interactive
$1,745.43 -
Xtreme Power Conversion
Xtreme Power J90i-1.5KLi 1500 VA / 1350 W Lithium-Ion UPS, 230 V
Compared with 5PX1500IRT Spec 5PX1500IRT Xtreme Power Capacity 1500 VA / 1350 W 1500 VA / 1350 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Rackmount 1U, 1U Input plug IEC C14 IEC C14 Outlets 8 × IEC 60320 C13 4 × IEC 60320 C13 Runtime, half load 10 min Not stated Differences
- Rack mount only, no tower stand
- 4 battery-backed outlets instead of 8
- No external battery option
- Online double-conversion, a step up from line-interactive
$3,362.55 -
Xtreme Power Conversion
Xtreme Power P91g-1.5KLi 1500 VA / 1350 W Lithium-Ion Online UPS, 208/230 V
Compared with 5PX1500IRT Spec 5PX1500IRT Xtreme Power Capacity 1500 VA / 1350 W 1500 VA / 1350 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug IEC C14 NEMA L6-20P Outlets 8 × IEC 60320 C13 8 × IEC 60320 C13 Runtime, half load 10 min 19 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C14 inlet cord
- No external battery option
- Online double-conversion, a step up from line-interactive
$3,208.08
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the 5PX1500IRT. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

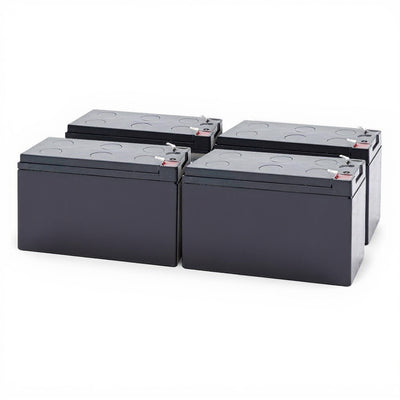

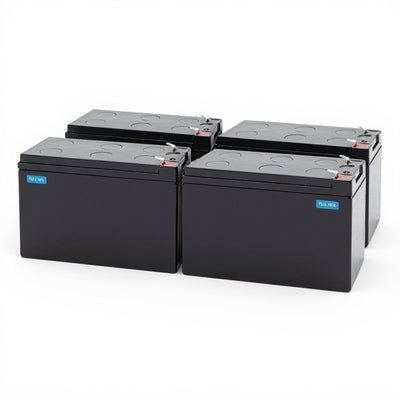

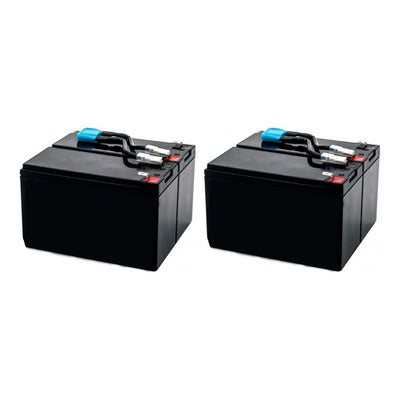

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
