About this UPS

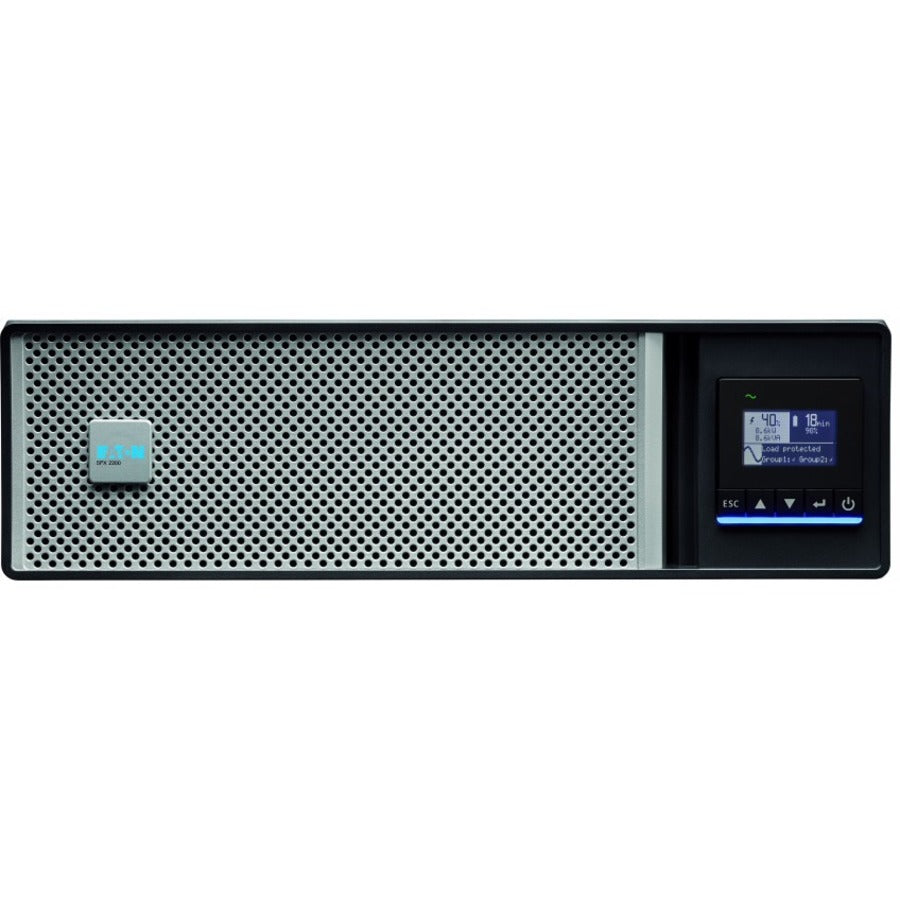

Eaton 5PX G2 UPS
| UPC | 0743172105707 |
| 3U Rack-mountable - 6 Minute Stand-by - 120 V AC Input - 6 x NEMA 5-20R, 1 x NEMA L5-20R Receptacle(s) - Network-M3 Card | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | 5PX2000RT3UNG2 |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Series: | 5PX G2 |
| Product Name: | 5PX G2 UPS |
| Marketing Information: |
1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments This 5PX G2 rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The 5PX2000RT3UNG2 is ideal power management for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four external battery modules (5PXEBM72RT3UAG2, sold separately) for hours of extended runtime. Included Gigabit Network Interface Offers 24/7 Remote Access The Network-M3 network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the Network-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-20P |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.95 kVA |
| Load Capacity (Watt): | 1.95 kW |
| Input Voltage: | 120 V AC |
| Input Frequency: | 60 Hz | Management |
| Network Management: | Network-M3 Card | Controls/Indicators |
| Status Indicators: | LCD Graphical Display |
Interfaces/Ports |
| USB (HID Compliant) Port: | Yes | Battery Information |
| Battery Characteristics: | Sealed |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 6 Minute |
| Replaceable Battery: | Yes | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 5.10" (129.54 mm) |
| Width: | 17.20" (436.88 mm) |
| Depth: | 19" (482.60 mm) |
| Rack Height: | 3U |
| Form Factor: | Rack-mountable |
| Weight (Approximate): | 64.20 lb (29120.63 g) | Miscellaneous |
| Package Contents: |
|
| Energy Star: | Yes |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 3 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
