| UPC | 0743172035882 |
| 2U Rack/Tower - 3 Minute Stand-by - 220 V AC Input - 265 V AC Output - Serial Port - USB - 1 x IEC 60320 C13, 8 x IEC 60320 C19 | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | 5PX2200IRT |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Series: | 5PX |
| Product Model: | 5PX2200IRT |

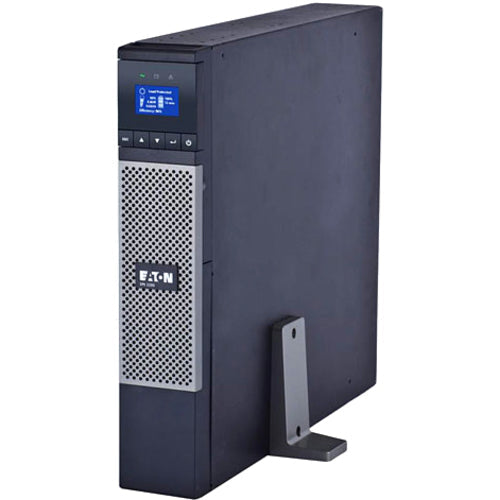

| Product Name: | 5PX 2200 VA Tower/Rack Mountable UPS |
| Marketing Information: | The Eaton 5PX UPS is an integrated power management solution. Paired seamlessly with Intelligent Power Software Suite, the 5PX provides the tools you need to manage your equipment, even in virtualized environments. Designed with managed outlet segments, you can monitor energy consumption on the intuitive LCD screen. It also delivers more power than comparable UPSs and has an efficiency rating of up to 99%. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | IEC 60320 C20 |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 2.20 kVA |
| Load Capacity (Watt): | 1.98 kW |
| Input Voltage: | 220 V AC |
| Output Voltage: | 265 V AC | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes |
| Total Number of Expansion Slots: | 1 | Battery Information |
| Battery Characteristics: | Maintenance-free, Sealed |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 3 Minute |
| Backup/Run Time (Half Load): | 8 Minute |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 3.40" (86.36 mm) |
| Width: | 17.40" (441.96 mm) |
| Depth: | 20.60" (523.24 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 28.58 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | Eaton Intelligent Power Software Suite |
| Country of Origin: | Philippines | Warranty |
| Limited Warranty: | 3 Year |
