Eaton
Eaton 5PX 5PX3000RT2U 3000 VA / 2700 W 2U Rack/Tower Line-Interactive UPS, 120 V, NEMA L5-30P
Eaton 5PX 5PX3000RT2U 3000 VA / 2700 W 2U Rack/Tower Line-Interactive UPS, 120 V, NEMA L5-30P
Available on order
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
- Brand: Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: 5PX3000RT2U
- Input Voltage: 110 V AC
- Form Factor: Rack/Tower
- Rack Height: 2U
- Plug/Connector Type: NEMA L5-30P
- Product Family: 5PX
- Backup/Run Time (Half Load): 10 Minute
- Backup/Run Time (Full Load): 4 Minute
- Load Capacity: 3 kVA/2.70 kW
Marketing Information:
The Eaton 5PX UPS is an integrated power management solution. Paired with Intelligent Power Software Suite, the 5PX provides the tools you need to manage your equipment, even in virtualized environments. Designed with managed outlet segments, you can monitor energy consumption on the intuitive LCD screen. It also delivers more power than comparable UPSs and has an efficiency rating of up to 99%.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Transfer Time | 4 ms |
| Load Capacity | 3 kVA/2.70 kW |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Serial Port | Yes |
| USB | Yes |
| Battery Characteristics | Maintenance-free, Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Hot Swappable | Yes |
| Height | 3.40" (86.36 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 25.50" (647.70 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 39.46 kg |
| Package Contents |
|
| Software Included | Eaton Intelligent Power Software Suite |
| Country of Origin | Philippines |
| Limited Warranty | 3 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Available now
The manufacturer no longer makes the 5PX3000RT2U. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power P80-3000V2 3000 VA / 2700 W Line-Interactive UPS, 120 V
Compared with 5PX3000RT2U Spec 5PX3000RT2U Xtreme Power Capacity 3000 VA / 2700 W 3000 VA / 2700 W Topology Line-Interactive Line-Interactive Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA L5-30P NEMA L5-30P Outlets 6 × NEMA 5-20R, 1 × NEMA L5-30R 6 × NEMA 5-15/20R, 1 × NEMA L5-30R Runtime, half load 10 min 12 min Same class on every point compared.
$2,292.00 -
Compared with 5PX3000RT2U Spec 5PX3000RT2U Delta Capacity 3000 VA / 2700 W 3000 VA / 2700 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA L5-30P NEMA L5-30P Outlets 6 × NEMA 5-20R, 1 × NEMA L5-30R 8 × NEMA 5-15/20R, 1 × NEMA L5-30R Runtime, half load 10 min 11 min Differences
- Online double-conversion, a step up from line-interactive
$2,981.99 -
Xtreme Power Conversion
Xtreme Power P91-3000 3000 VA / 2880 W Online UPS, 120 V
Compared with 5PX3000RT2U Spec 5PX3000RT2U Xtreme Power Capacity 3000 VA / 2700 W 3000 VA / 2880 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA L5-30P NEMA L5-30P Outlets 6 × NEMA 5-20R, 1 × NEMA L5-30R 1 × NEMA L5-30R, 6 × NEMA 5-15/20R Runtime, half load 10 min 10 min Differences
- Online double-conversion, a step up from line-interactive
$3,077.00
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Available now
The manufacturer no longer makes the 5PX3000RT2U. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.

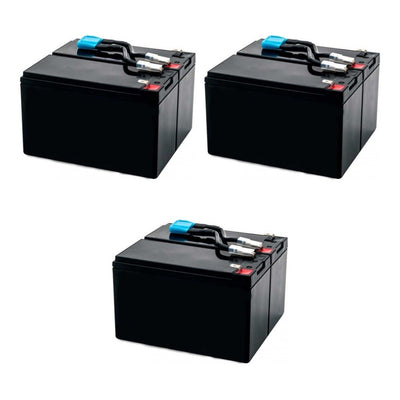

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
