In stockEaton
· 5PX3000RT3UNG2
Eaton 5PX3000RT3UNG2 3000 VA / 3000 W Rack/Tower Line-Interactive UPS
- Power
- 3000 VA / 3000 W
- Form
- Tower/Rack Convertible
- Outlets
- 6× NEMA 5-20R, 1× NEMA L5-30R
$4,007.99
Eaton
Eaton 5PX 5PX3000RT3U 3000 VA / 2700 W 3U Rack/Tower Line-Interactive UPS
Eaton 5PX 5PX3000RT3U 3000 VA / 2700 W 3U Rack/Tower Line-Interactive UPS
Discontinued by the manufacturerManufacturer’s current model: 5PX3000RT3UNG2. This listing is the earlier model.
Regular price
$4,742.00 CAD
Regular price
Sale price
$4,742.00 CAD
Available on order
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS

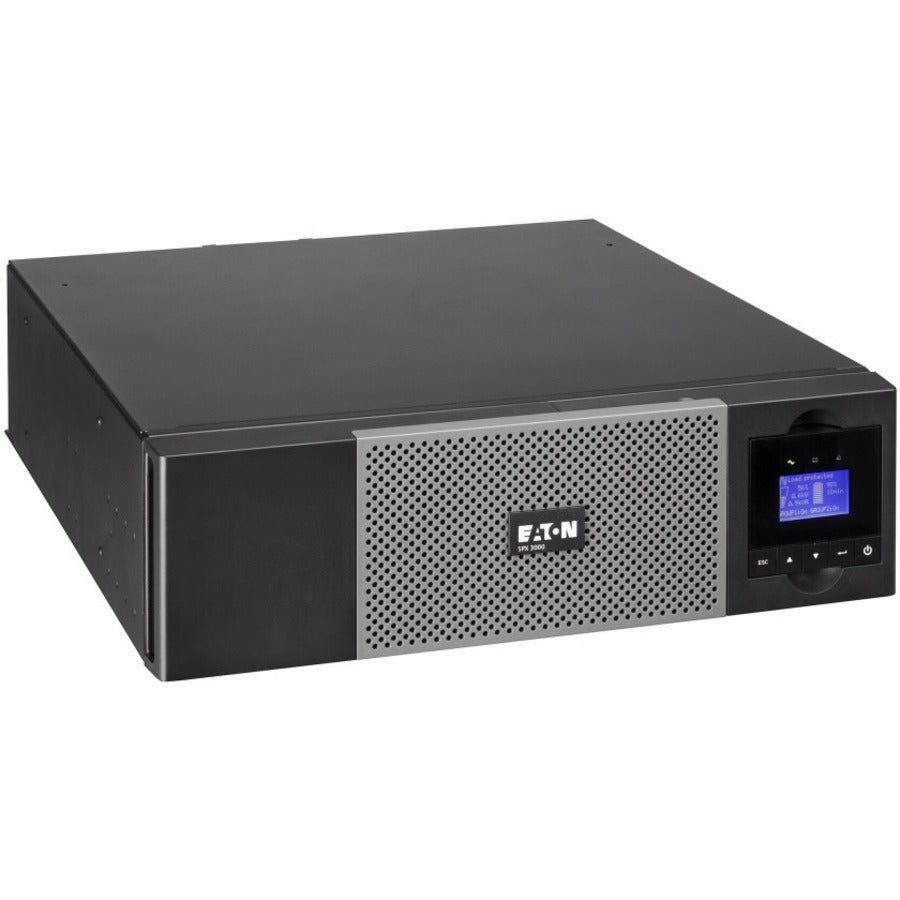

Eaton 5PX 3000 VA Tower/Rack Mountable UPS
| UPC | 0743172035868 |
| 3U Rack/Tower - 4 Minute Stand-by - 110 V AC Input - 132 V AC Output - Serial Port - USB - 1 x NEMA 5-20R, 6 x NEMA L5-30R | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | 5PX3000RT3U |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Series: | 5PX |
| Product Model: | 5PX3000RT3U |
| Product Name: | 5PX 3000 VA Tower/Rack Mountable UPS |
| Marketing Information: | The Eaton 5PX UPS is an integrated power management solution. Paired with Intelligent Power Software Suite, the 5PX provides the tools you need to manage your equipment, even in virtualized environments. Designed with managed outlet segments, you can monitor energy consumption on the intuitive LCD screen. It also delivers more power than comparable UPSs and has an efficiency rating of up to 99%. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA L5-30P |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.70 kW |
| Input Voltage: | 110 V AC |
| Output Voltage: | 120 V AC | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes |
| Total Number of Expansion Slots: | 1 | Battery Information |
| Battery Characteristics: | Maintenance-free, Sealed |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 4 Minute |
| Backup/Run Time (Half Load): | 10 Minute |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 5.10" (129.54 mm) |
| Width: | 17.40" (441.96 mm) |
| Depth: | 19.60" (497.84 mm) |
| Rack Height: | 3U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 39.01 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | Eaton Intelligent Power Software Suite |
| Country of Origin: | Philippines | Warranty |
| Limited Warranty: | 3 Year |
Technical specifications
Power
VA Rating
3000VA
Wattage
2700W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA L5-30P (locking 30A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
6× NEMA 5-20R1× NEMA L5-30R
Features
Form Factor
Tower/Rack Convertible
Rack Units
3U
Connectivity
USBRS-232 SerialHTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
130 × 442 × 498 mm (5.10 × 17.40 × 19.60 in)
Weight
39.01kg
Certifications
UL 1778NOMUL 497AcTUVuscUL ListedUL Listed
Manufacturer Warranty
3 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (1350 W)
10 min
Full load (2700 W)
3 min

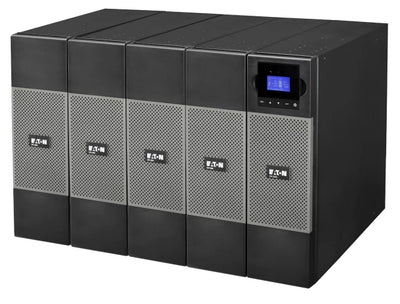

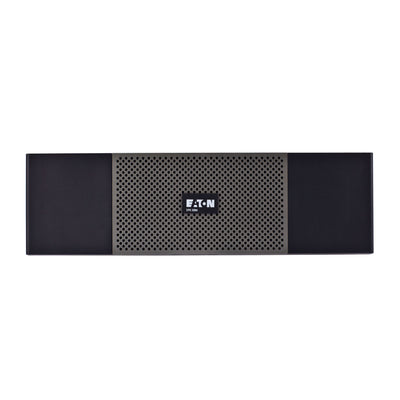

Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Available now
The manufacturer no longer makes the 5PX3000RT3U. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power P80-3000V2 3000 VA / 2700 W Line-Interactive UPS, 120 V
Compared with 5PX3000RT3U Spec 5PX3000RT3U Xtreme Power Capacity 3000 VA / 2700 W 3000 VA / 2700 W Topology Line-Interactive Line-Interactive Form Tower/Rack Convertible, 3U Tower/Rack Convertible, 2U Input plug NEMA L5-30P NEMA L5-30P Outlets 6 × NEMA 5-20R, 1 × NEMA L5-30R 6 × NEMA 5-15/20R, 1 × NEMA L5-30R Runtime, half load 10 min 12 min Same class on every point compared.
$2,292.00 -
Compared with 5PX3000RT3U Spec 5PX3000RT3U Delta Capacity 3000 VA / 2700 W 3000 VA / 2700 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 3U Tower/Rack Convertible, 2U Input plug NEMA L5-30P NEMA L5-30P Outlets 6 × NEMA 5-20R, 1 × NEMA L5-30R 8 × NEMA 5-15/20R, 1 × NEMA L5-30R Runtime, half load 10 min 11 min Differences
- Online double-conversion, a step up from line-interactive
$2,981.99 -
Xtreme Power Conversion
Xtreme Power P91-3000 3000 VA / 2880 W Online UPS, 120 V
Compared with 5PX3000RT3U Spec 5PX3000RT3U Xtreme Power Capacity 3000 VA / 2700 W 3000 VA / 2880 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 3U Tower/Rack Convertible, 2U Input plug NEMA L5-30P NEMA L5-30P Outlets 6 × NEMA 5-20R, 1 × NEMA L5-30R 1 × NEMA L5-30R, 6 × NEMA 5-15/20R Runtime, half load 10 min 10 min Differences
- Online double-conversion, a step up from line-interactive
$3,077.00
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the 5PX3000RT3U. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

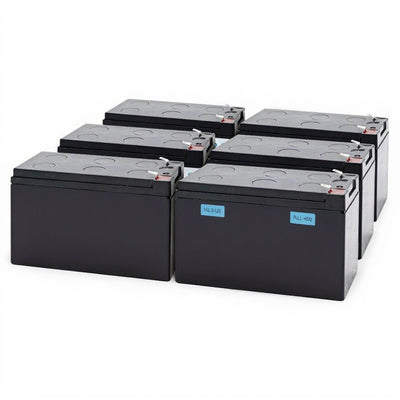

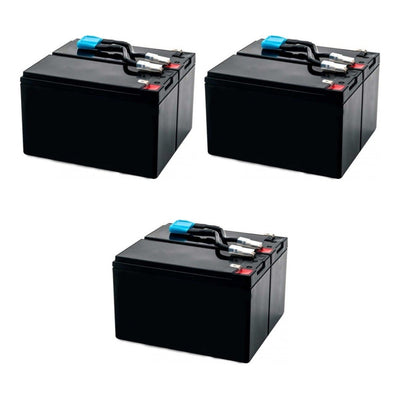

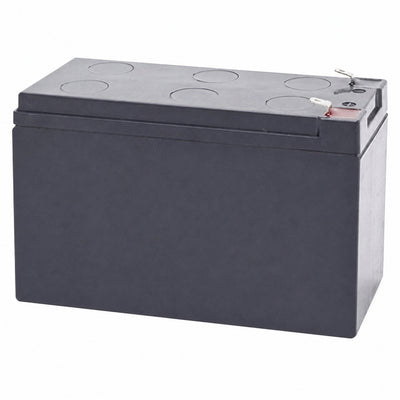

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
