In stockTripp Lite
· ECO1000LCD
Tripp Lite ECO1000LCD 1000 VA / 600 W Tower Line-Interactive UPS
- Power
- 1000 VA / 600 W
- Form
- Tower
- Outlets
- 4× NEMA 5-15R, 4× NEMA 5-15R
$305.99
About this UPS
The Eaton 5S1000LCD is a 1000VA / 1000W tower line-interactive UPS. Designed for business-critical power protection, it delivers clean, regulated output to protect servers, network equipment, workstations, and other sensitive electronics from power disturbances, backed by Eaton's industry-leading warranty and service network.
Specifications
| Output Capacity (VA) | 1000 VA |
| Output Power (Watts) | 1000 W |
| Topology | Line-Interactive |
| Output Waveform | Simulated Sine Wave |
| Output Voltage | 120 VAC |
| Form Factor | Tower |
| Communications | USB |
| Warranty | 3 Years Limited |
| Weight | 9.71 kg (21.4 lb) |
| UPC | 743172043559 |
| Manufacturer Part Number | 5S1000LCD |
Technical specifications
Power
VA Rating
1000VA
Wattage
600W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120 VAC
Receptacles
10× NEMA 5-15R
Features
Form Factor
Tower
Connectivity
USB
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Dimensions
249 × 86 × 381 mm (9.80 × 3.40 × 15.00 in)
Weight
9.71kg
Certifications
UL 497ACSA Std. C22.2 No. 107.1-01ICES-003VCCIUL 1778
Manufacturer Warranty
3 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (300 W)
14 min
Full load (600 W)
3 min
Compare with alternatives
The 5S1000LCD side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power S71-1000 1000 VA / 600 W Line-Interactive UPS, 120 V
Compared with 5S1000LCD Spec 5S1000LCD Xtreme Power Capacity 1000 VA / 600 W 1000 VA / 600 W Topology Line-Interactive Line-Interactive Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 10 × NEMA 5-15R 6 × NEMA 5-15R Runtime, half load 14 min 2 min Differences
- 6 battery-backed outlets instead of 10
$362.40 -
Xtreme Power Conversion
Xtreme Power P80-800 800 VA / 720 W Line-Interactive UPS, 120 V
Compared with 5S1000LCD Spec 5S1000LCD Xtreme Power Capacity 1000 VA / 600 W 800 VA / 720 W Topology Line-Interactive Line-Interactive Form Tower Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 10 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 11 min Differences
- 8 battery-backed outlets instead of 10
- Lower VA rating: 800 VA instead of 1000 VA
- Larger unit: 720 W instead of 600 W
$1,068.18 -
Xtreme Power Conversion
Xtreme Power T91-700 700 VA / 700 W Online UPS, 120 V
Compared with 5S1000LCD Spec 5S1000LCD Xtreme Power Capacity 1000 VA / 600 W 700 VA / 700 W Topology Line-Interactive Online Double-Conversion Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 10 × NEMA 5-15R 6 × NEMA 5-15R Runtime, half load 14 min 16 min Differences
- 6 battery-backed outlets instead of 10
- Lower VA rating: 700 VA instead of 1000 VA
- Online double-conversion, a step up from line-interactive
- Larger unit: 700 W instead of 600 W
$975.80 Request a freight quote
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

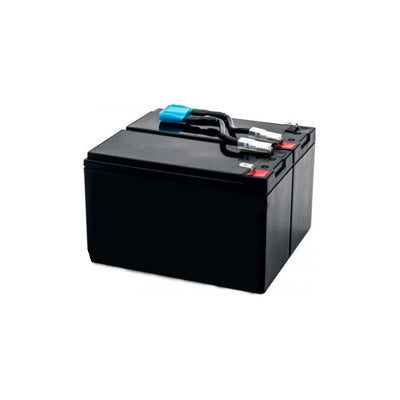

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
Other models in the same range
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
