| UPC | 0743172045089 |
| Tower - 120 V AC Input - 120 V AC Output - Serial Port - USB - 4 x NEMA 5-15R Receptacle(s) | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | 5SC500 |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Series: | 5SC |

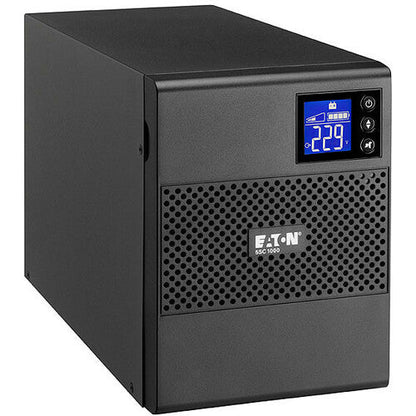

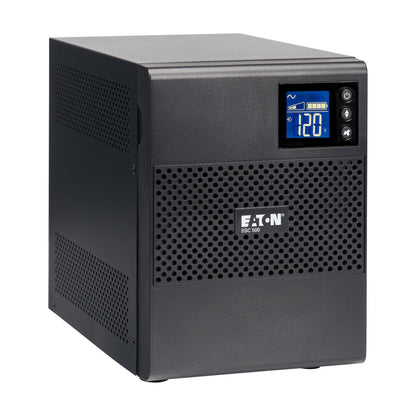

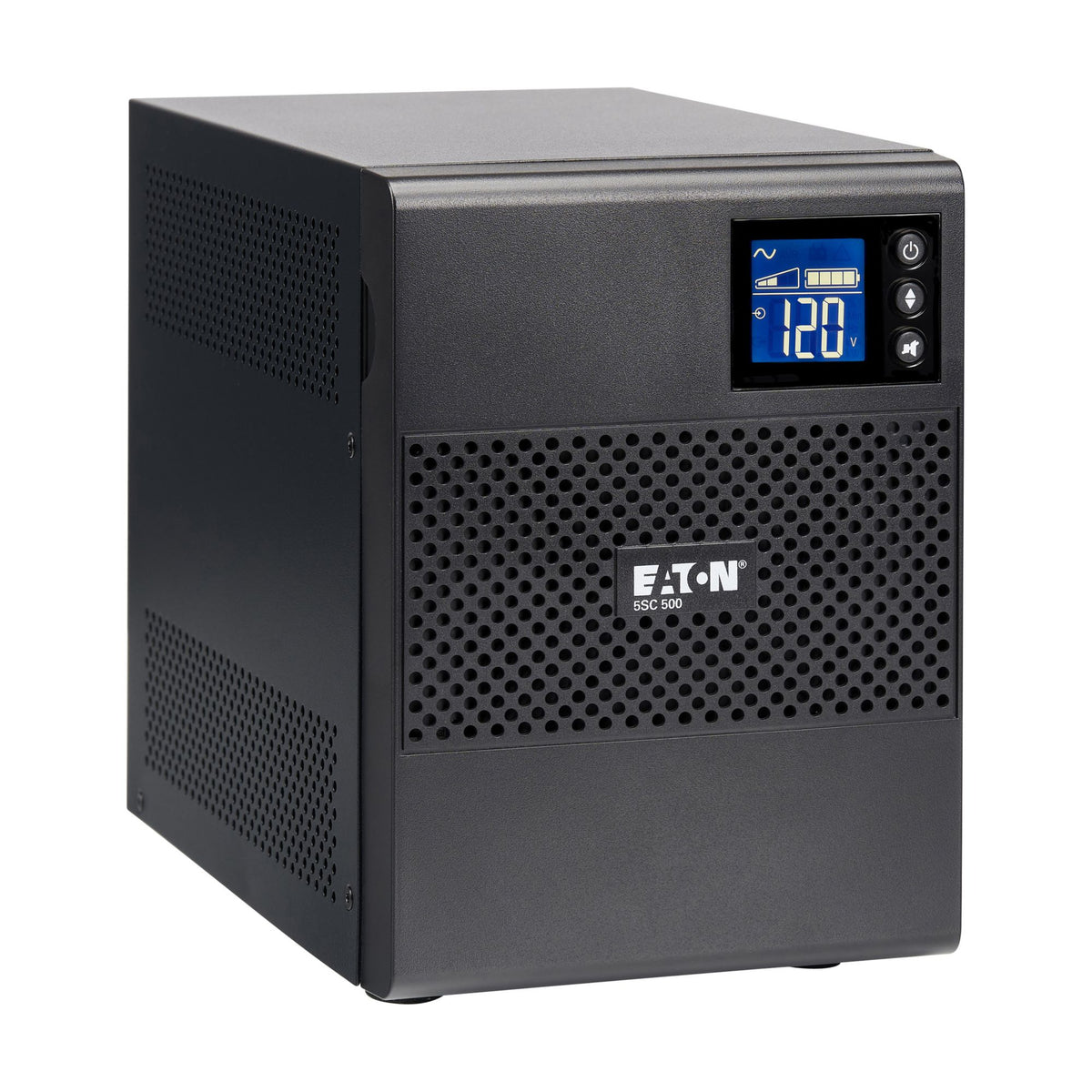

| Product Name: | 5SC UPS |
| Marketing Information: | The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 4 x NEMA 5-15R |
| Protection Type: | Surge |
| Cord Length: | 5.9 ft | Power Description |
| Load Capacity (VA): | 500 VA |
| Load Capacity (Watt): | 350 W |
| Input Voltage: | 120 V AC |
| Output Voltage: | 120 V AC | Management |
| Battery Management: | ABM Technology | Interfaces/Ports |
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| USB: | Yes | Battery Information |
| Battery Characteristics: | Maintenance-free, Sealed |
| Battery Chemistry: | Lead Acid |
| Hot Swappable: | No | Environmental Conditions |
| Maximum Operating Temperature: | 95°F (35°C) |
| Sound Emission: | 55 dB | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 8.23" (209 mm) |
| Width: | 5.91" (150 mm) |
| Depth: | 9.45" (240 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 6.90 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | Eaton Intelligent Power Software |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
