Eaton
Available on order
Ships by freight (over 68 kg). We confirm the delivered price in writing before you pay.
Available on order
Written reply within 1 business day, no obligation.
Supports extended runtime: add battery packs in your quote
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
Questions? 438-881-3363 · Mon to Fri
| UPC | 0743172082510 |
| 6U Rack/Tower - 7 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - True Sine Wave - Serial Port - USB - 1 x NEMA L6-30R, 2 x NEMA L6-20R, 18 x NEMA 5-20R | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | 9PX3K3UNTF5 |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Series: | 9PX |

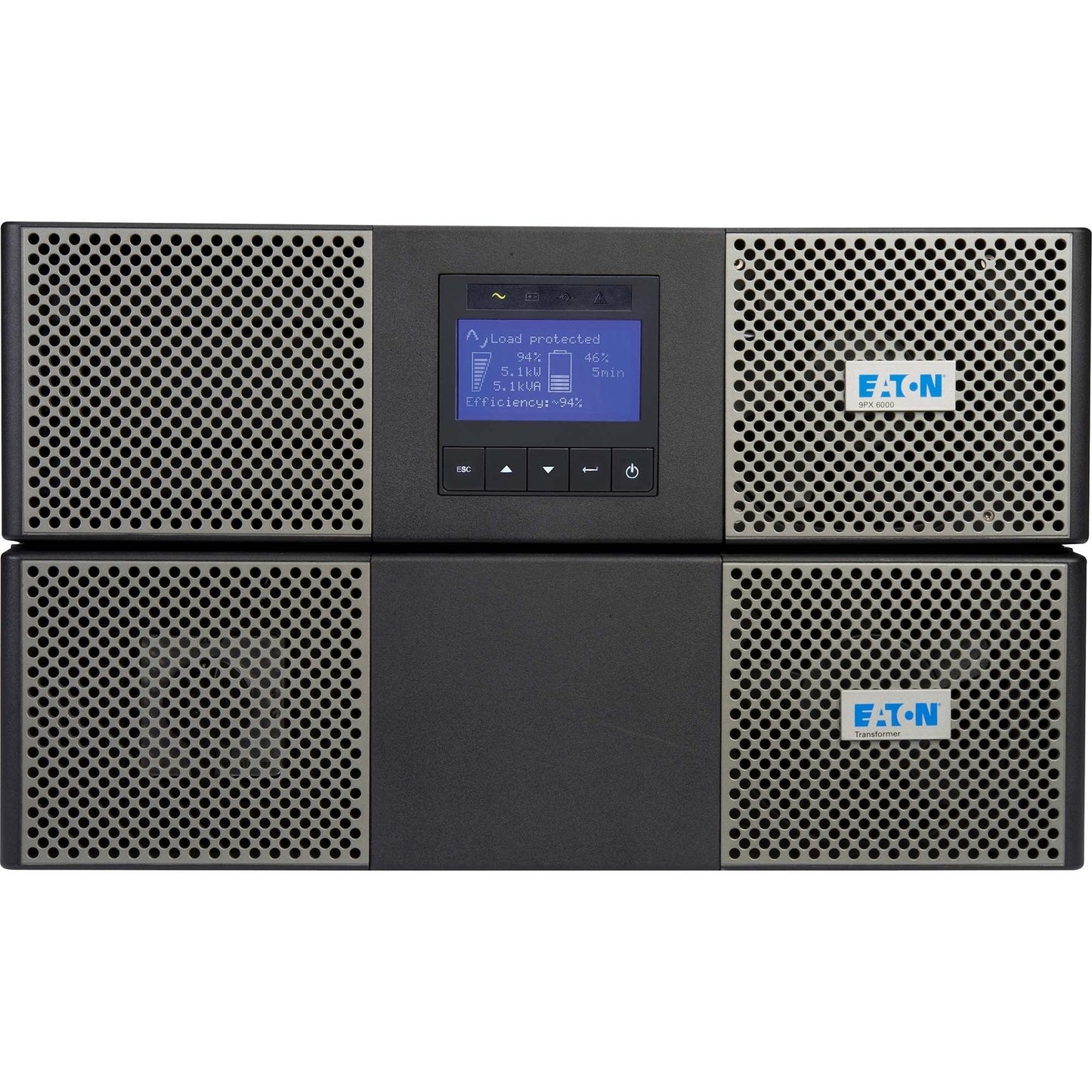

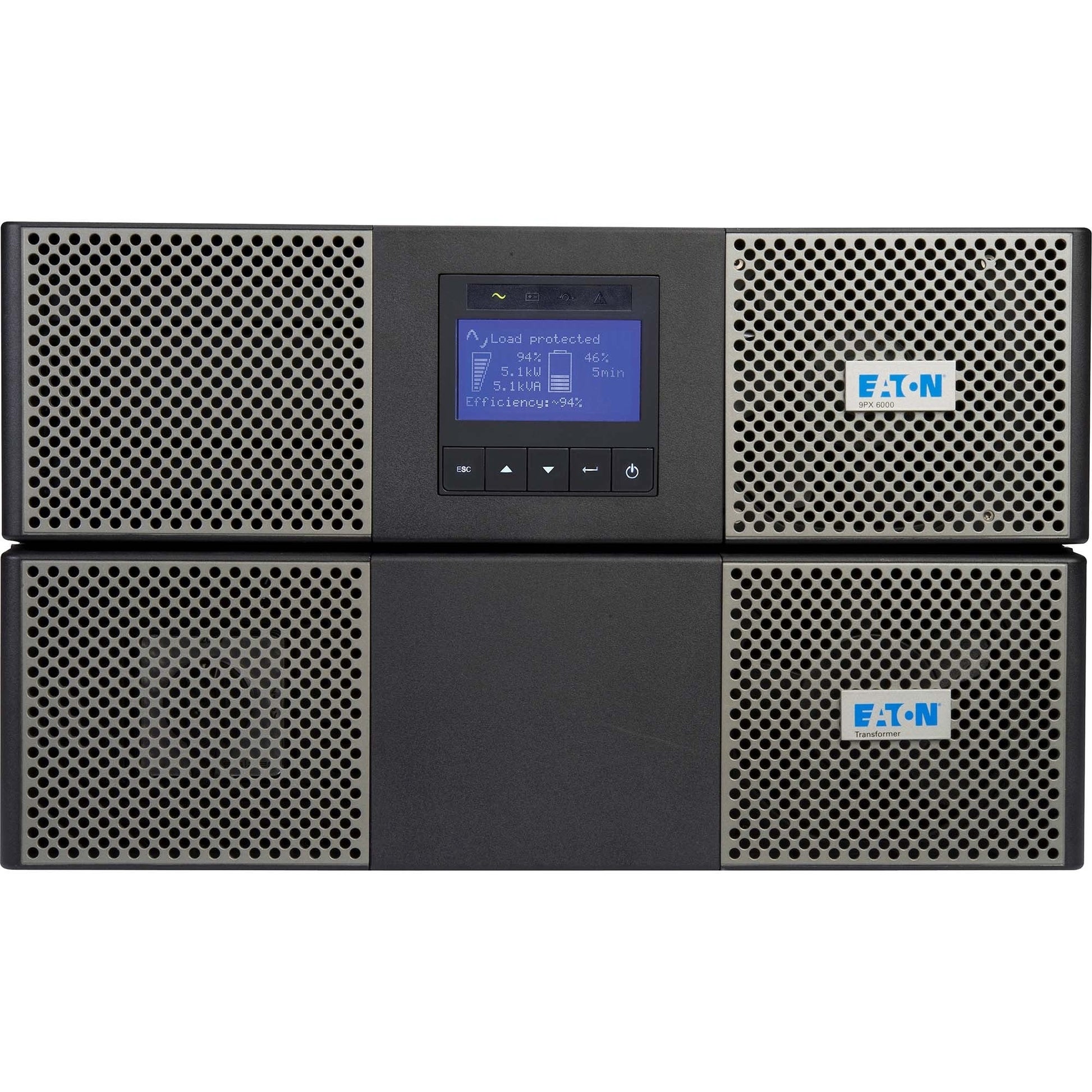

| Product Name: | 9PX 3000VA Rack/tower UPS |
| Marketing Information: |
3kVA/3kW/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. An included transformer permits a step-down voltage from 208V to 120V to allow connection of a wider range of components. The 9PX3K3UNTF5 is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT, sold separately) for hours of extended runtime. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components Two L6-20R, one L6-30R and 18 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA L6-30P |
| Receptacle Type: |
|
| Receptacle Detail: |
|
Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 3 kW |
| Input Voltage: | 230 V AC |
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | True Sine Wave |
| Input Power Factor: | 0.99 |
| Output Power Factor: | 1 | Management |
| Network Management: | SNMP/Web | Interfaces/Ports |
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| USB: | Yes | Battery Information |
| Number of Batteries: | 4 |
| Battery Characteristics: | Sealed |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 7 Minute |
| Backup/Run Time (Half Load): | 19 Minute |
| Hot Swappable: | Yes | Environmental Conditions |
| Sound Emission: | 45 dB | Physical Characteristics |
| Color Family: | Dual Color |
| Product Color: |
|
| Height: | 10.20" (259.08 mm) |
| Width: | 17.30" (439.42 mm) |
| Depth: | 28.40" (721.36 mm) |
| Rack Height: | 6U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 91.17 kg | Miscellaneous |
| Package Contents: |
|
| Energy Star: | Yes | Warranty |
| Limited Warranty: | 3 Year |
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Only accessories the manufacturer lists for this model.

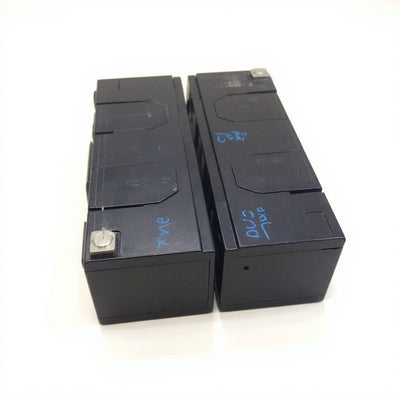

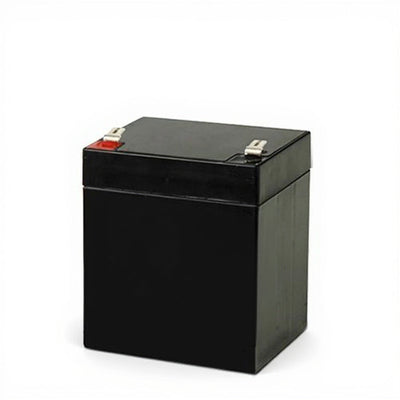

A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
